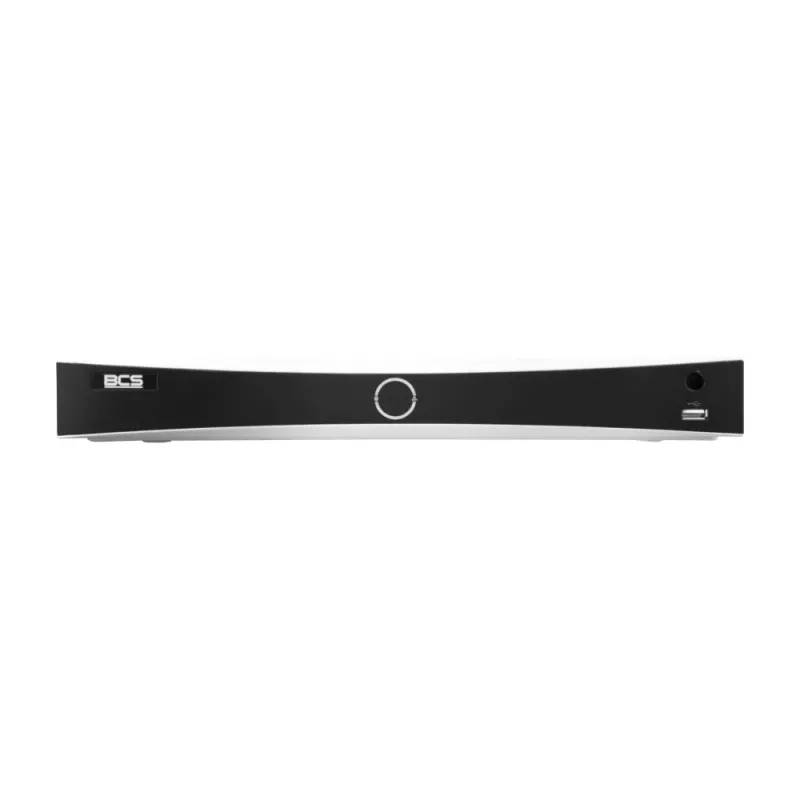

32-kanaals IP NVR BCS-V-NVR3202-A-4KE(3) 12MP H.265+ 2 SATA 4K HDMI

The BCS-V-NVR3202-A-4KE(3) is a high-performance 32-channel network video recorder designed for professional surveillance systems. Supporting up to 12MP resolution recording and H.265+ compression, it delivers exceptional video quality while optimizing storage and bandwidth. With dual SATA bays supporting up to 10TB each, this NVR provides ample storage for extended recording. The unit features 4K HDMI output, alarm I/O, and dual USB ports for flexible connectivity.

Advantages

This NVR offers advanced decoding capabilities, supporting simultaneous playback of up to 16 channels at 1080P. Its embedded Linux operating system ensures stability and security. The device is compatible with ONVIF and RTSP protocols, making it easy to integrate with a wide range of IP cameras. Mobile app support via BCS Manager or DMSS allows remote monitoring from anywhere.

Suitable for

• Medium to large-scale surveillance installations (e.g., retail, warehouses, offices)
• Systems requiring high-resolution recording (up to 12MP)
• Applications needing long-term storage with up to 20TB total HDD capacity
• Users who require remote access and mobile monitoring

Key specifications

• 32 IP camera channels
• Max recording resolution: 12MP
• Video compression: H.265+/H.265/H.264+/H.264
• 2 SATA HDD bays, up to 10TB each
• 1x Gigabit Ethernet (RJ-45)
• 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• 1x RCA audio input, 1x RCA audio output
• 4 alarm inputs, 2 alarm outputs
• 1x USB 2.0, 1x USB 3.0
• Decoding: 1ch@12MP(30fps) / 4ch@8MP(30fps) / 8ch@4MP(30fps) / 16ch@1080P(30fps)
• Power supply: DC 12V / 4A
• Operating system: Embedded Linux
• Mobile app: BCS Manager / DMSS

Recommendations

For optimal performance, use compatible BCS IP cameras and high-quality SATA HDDs (e.g., WD Purple or Seagate SkyHawk). Ensure proper ventilation and stable power supply.
