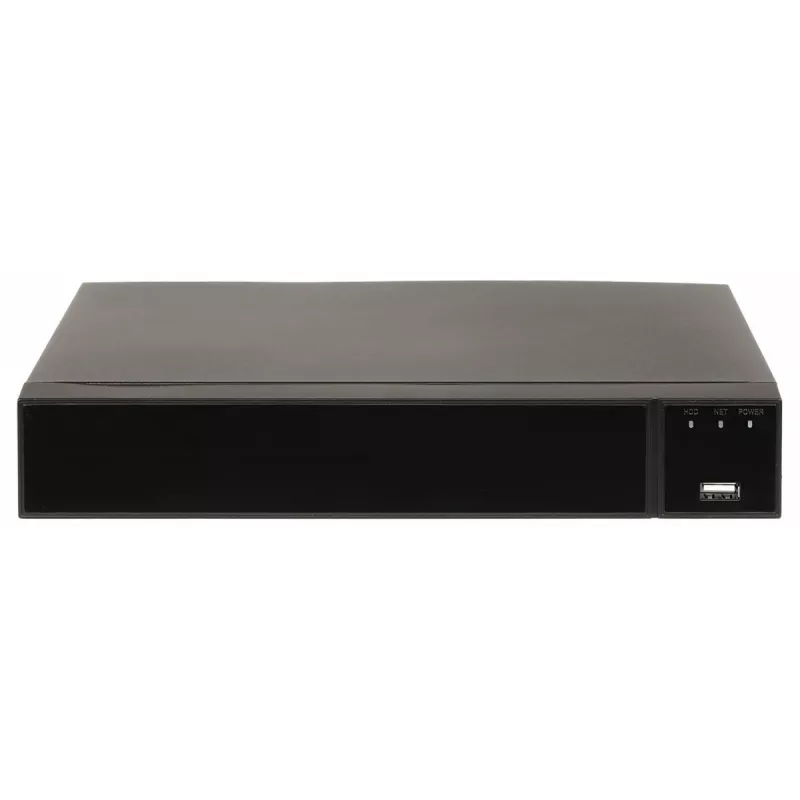

AHD HD-CVI HD-TVI CVBS IP DVR recorder APTI-XB0401H-S35 4 kanalen

The APTI-XB0401H-S35 is a professional 4-channel hybrid DVR recorder that supports AHD, HD-CVI, HD-TVI, CVBS, and IP cameras. It offers high-quality video recording and playback with H.265+ compression, ensuring efficient storage and bandwidth usage. Ideal for small to medium-sized surveillance systems, this recorder provides reliable performance and advanced smart features.

Advantages

Hybrid compatibility with multiple analog and IP camera formats, H.265+ compression for reduced storage, and smart features like motion detection and perimeter protection enhance security and efficiency.

Suitable for

• Small to medium-sized businesses
• Retail stores
• Office surveillance
• Home security systems

Key specifications

• Video Input Channels: 4 BNC (AHD/HD-CVI/HD-TVI/CVBS) + 2 IP (up to 6MP)
• Video Compression: H.265+/H.265/H.264+/H.264
• Max Recording Resolution: 5M-N@10fps, 4M-N/1080P@15fps, 720P@25fps
• IP Recording Bandwidth: Up to 32 Mbps
• Video Outputs: 1x HDMI, 1x VGA (max 1920x1080)
• Audio: 1x RCA input, 1x RCA output
• Storage: 1x SATA HDD up to 10TB
• Network: 1x RJ45 10/100Mbps Ethernet
• USB: 2x USB 2.0
• Power Supply: DC 12V / 2A
• Operating System: Embedded Linux
• Mobile App: Guard Viewer / DMSS
• Smart Features: Motion Detection, Video Loss, Tampering, Smart Search, Perimeter Protection

Recommendations

For optimal performance, use compatible AHD/HD-CVI/HD-TVI cameras and a high-quality SATA HDD. Ensure proper ventilation and stable power supply.
