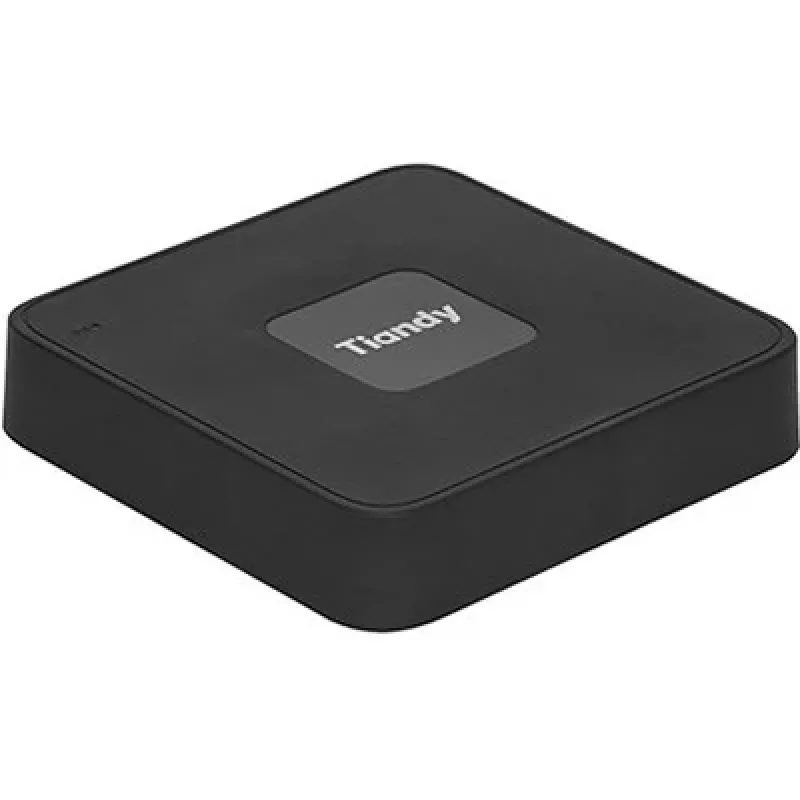

IP-recorder TC-R3105 5-kanaals, 4 PoE, Spark Tiandy

The Tiandy TC-R3105 is a compact 5-channel IP recorder with 4 PoE ports, designed for small to medium surveillance systems. It supports up to 8MP resolution recording and H.265+ compression for efficient storage. Ideal for retail shops, offices, and homes.

Advantages

Supports up to 10TB HDD for extended recording. Smart features like perimeter protection and face detection enhance security. Easy remote access via P2P and Easy7 app.

Suitable for

• Small businesses
• Retail stores
• Office surveillance
• Home security

Key specifications

• 5-channel IP camera input
• 4 PoE ports (IEEE 802.3af/at)
• Max 8MP recording resolution
• H.265+/H.265/H.264+/H.264 compression
• 40 Mbps incoming/outgoing bandwidth
• 1 SATA interface, up to 10TB
• 1 HDMI (4K) and 1 VGA (1080P) output
• 1-ch audio input, 1-ch audio output
• 1 RJ45 10/100Mbps Ethernet
• 2 USB 2.0 ports
• DC 48V power supply, ≤10W consumption
• Operating temperature -10°C to 55°C
• Smart functions: perimeter protection, smart search, face detection
• P2P mobile monitoring via Easy7 app

Recommendations

Pair with Tiandy IP cameras for optimal compatibility and smart features. Use a high-quality PoE switch for additional camera connections.
