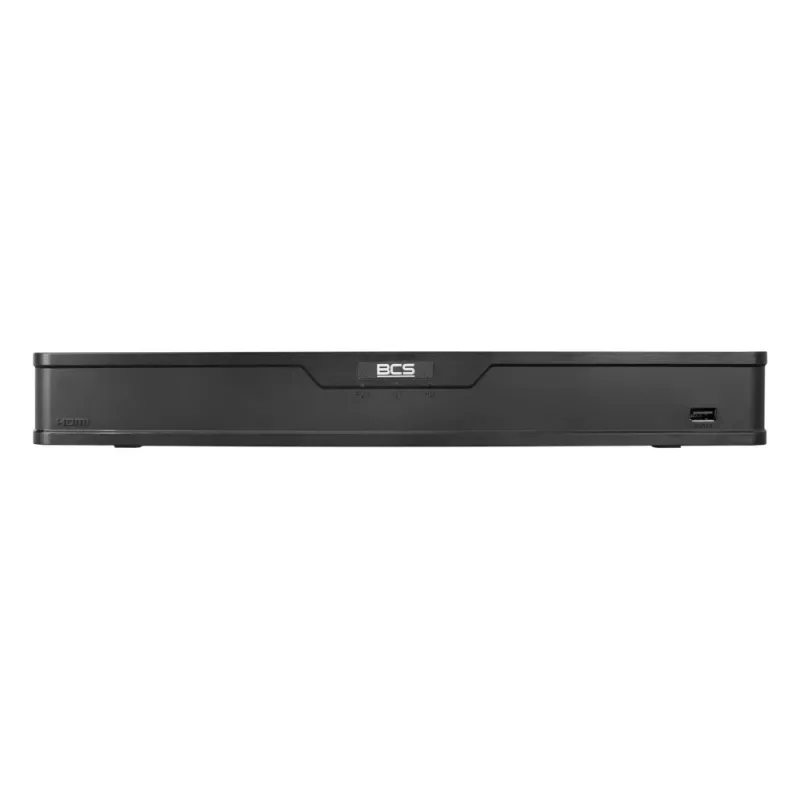

BCS 8-kanaals 4K IP NVR BCS-P-NVR0902-4KE(3)

The BCS-P-NVR0902-4KE(3) is a high-performance 8-channel IP network video recorder supporting 4K resolution recording. Designed for professional surveillance systems, it offers advanced video compression, AI capabilities, and reliable storage options.

Advantages

Supports H.265+ compression to save bandwidth and storage. AI functions like perimeter protection and face detection enhance security. Dual SATA bays allow up to 20 TB total storage.

Suitable for

• Small to medium businesses requiring 8-channel surveillance
• Retail stores, offices, and warehouses
• Integration with ONVIF-compatible cameras

Key specifications

• 8 IP channels, max 8MP (4K) recording
• Video compression: H.265+/H.265/H.264+/H.264
• 2 SATA HDD bays, up to 10 TB each (20 TB total)
• 1x HDMI (4K) and 1x VGA (1080p) output
• 1x Gigabit Ethernet, 2x USB 2.0
• Audio: 1x RCA in, 1x RCA out
• Alarm: 4 inputs, 2 outputs
• Bandwidth: 80 Mbps incoming, 60 Mbps outgoing
• Decoding: 1ch@8MP(30fps) or 4ch@1080p(30fps)
• AI: Perimeter protection, SMD Plus, face detection
• ONVIF Profile S, T, G
• Power: DC 12V, 4A

Recommendations

Pair with compatible BCS cameras for optimal AI performance. Use enterprise-grade HDDs for 24/7 recording.
