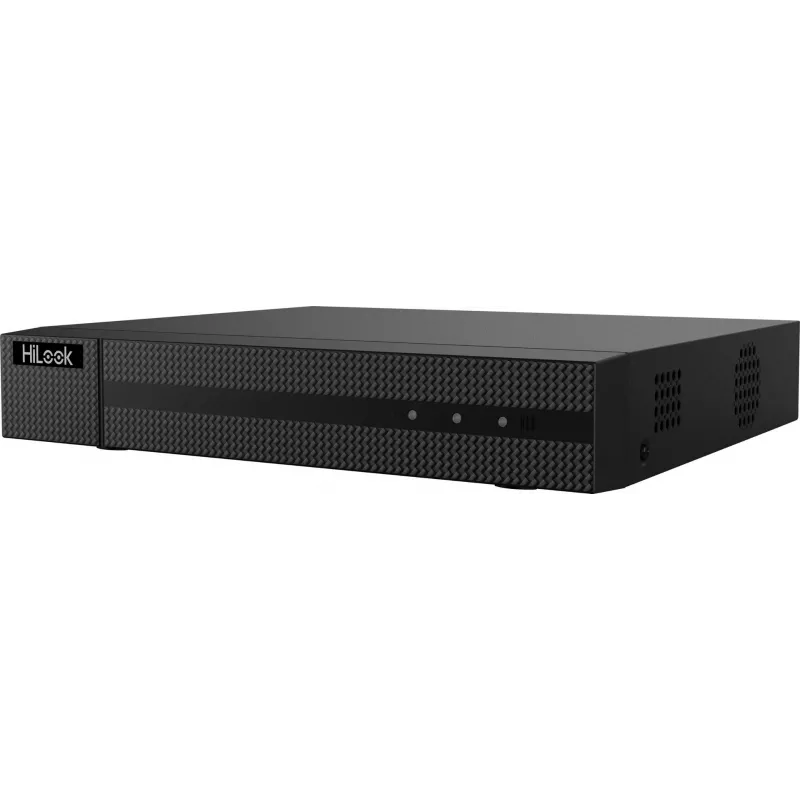

Hikvision Hilook NVR-104MH-D/4P(D) 4-kanaals 5MP PoE netwerkvideorecorder

The Hikvision Hilook NVR-104MH-D/4P(D) is a 4-channel network video recorder (NVR) designed for small to medium-sized surveillance systems. It supports up to 5MP resolution recording and features 4 built-in PoE ports for easy camera connection. With H.265+ compression, it optimizes storage and bandwidth usage. This NVR is ideal for retail stores, offices, and homes requiring reliable 24/7 recording.

Advantages

Supports high-resolution 5MP IP cameras; 4 PoE ports eliminate need for separate power adapters; H.265+ compression reduces storage costs; compact design fits easily in any environment; intuitive interface for quick setup.

Suitable for

• Small businesses and retail shops
• Office surveillance
• Residential security systems
• Warehouses and storage facilities

Key specifications

• Video Input Channels: 4-channel IP
• Max Recording Resolution: 5 MP
• PoE Ports: 4
• Video Compression: H.265+/H.265/H.264+/H.264
• Incoming Bandwidth: 40 Mbps
• Outgoing Bandwidth: 60 Mbps
• HDMI Output Resolution: Up to 1920 × 1080
• VGA Output Resolution: Up to 1920 × 1080
• Audio Input: 1-ch RCA
• Audio Output: 1-ch RCA
• SATA Interfaces: 1
• Max HDD Capacity per Drive: 6 TB
• Network Interface: 1 RJ45 10M/100M Ethernet
• USB Interfaces: 2 × USB 2.0
• Power Supply: 48 VDC
• Max PoE Power: 36 W
• Simultaneous Playback: 4-ch
• Decoding Capability: 4-ch @ 1080p (25 fps) / 2-ch @ 5MP (25 fps)

Recommendations

For optimal performance, use Hikvision or compatible 5MP IP cameras. Install a hard drive up to 6TB for extended recording. Ensure network switch supports PoE if using additional cameras beyond the 4 built-in ports.
