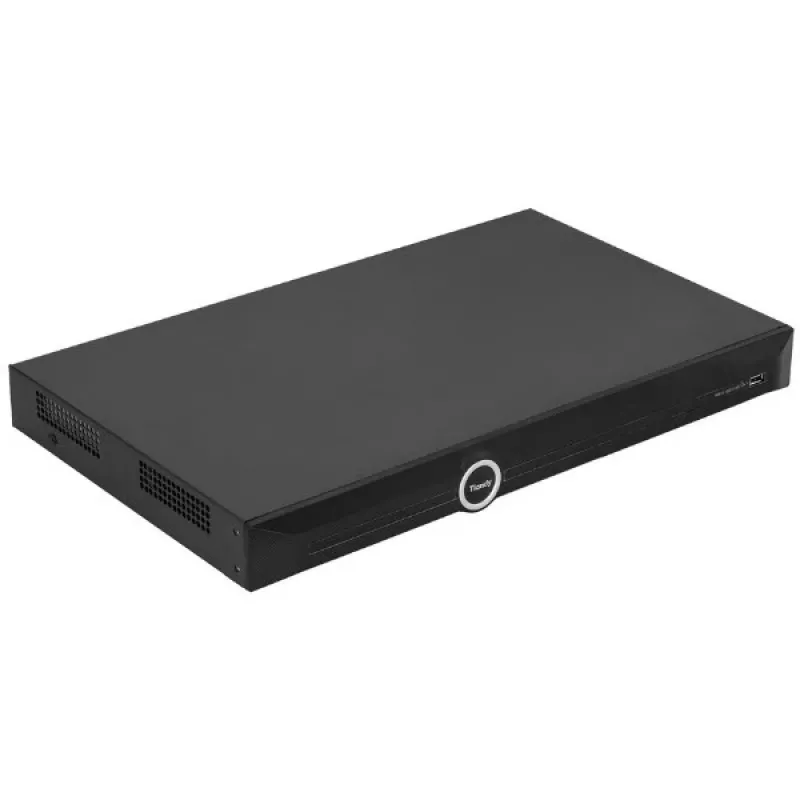

Tiandy TC-R3240 40-kanaals IP-recorder, Pro-serie

The Tiandy TC-R3240 is a high-performance 40-channel IP recorder from the Pro series, designed for professional surveillance systems. It supports up to 12MP resolution recording with S+265/H.265/H.264 compression, ensuring efficient storage and bandwidth usage. With 320 Mbps incoming and 160 Mbps outgoing bandwidth, it handles multiple high-resolution cameras seamlessly. The recorder features 2 SATA HDD bays (up to 10TB each) for extensive storage, and offers versatile video outputs including HDMI up to 4K and VGA up to 1080P. Ideal for medium to large-scale security installations, it provides reliable 24/7 recording and remote access capabilities.

Advantages

High channel count (40 IP channels) supports large camera networks. Advanced compression (S+265) reduces storage requirements without compromising image quality. Dual HDD bays allow for RAID or independent storage configurations. HDMI 4K output enables high-definition local monitoring. Two-way audio and alarm I/O enhance interactive security features.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions
• Government facilities

Key specifications

• Video Input: 40 IP channels
• Max Recording Resolution: 12MP (4000x3000)
• Video Compression: S+265/H.265/H.264
• Incoming Bandwidth: 320 Mbps
• Outgoing Bandwidth: 160 Mbps
• HDD Bays: 2 SATA (up to 10TB each)
• Video Output: 1x HDMI (up to 4K), 1x VGA (up to 1080P)
• Network Interface: 1x RJ45 10/100/1000 Mbps
• USB: 1x USB 2.0 (front), 1x USB 3.0 (rear)
• Audio: 1-ch RCA input / 1-ch RCA output (two-way)
• Alarm: 4-ch input / 1-ch output
• Decoding: 2-ch@12MP, 4-ch@8MP, 8-ch@4MP, 16-ch@1080P
• Power Supply: DC12V
• Power Consumption: ≤10W (without HDD)
• Operating Temperature: -10°C to 55°C (14°F to 131°F)

Recommendations

For optimal performance, pair with Tiandy Pro series cameras and use high-quality CAT6 cabling. Ensure adequate ventilation and consider a UPS for uninterrupted operation. Regular firmware updates are recommended to maintain security and functionality.
