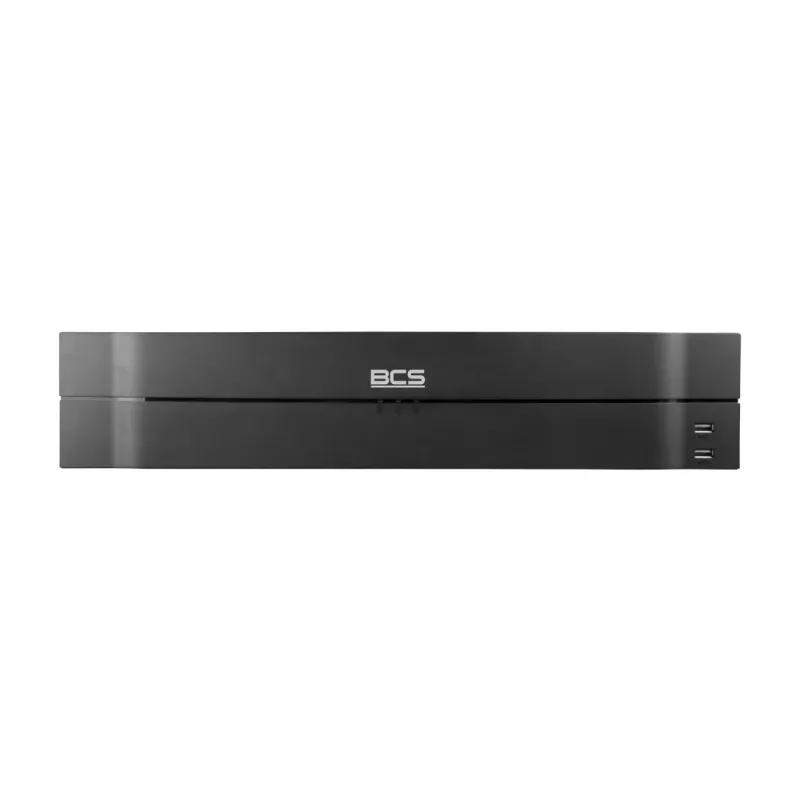

BCS 64-kanaals IP NVR, 4K, 8 SATA, AI, 1,5U rackmount - BCS-L-NVR6408R-A-4K-Ai(2)

The BCS-L-NVR6408R-A-4K-Ai(2) is a high-performance 64-channel IP network video recorder designed for professional surveillance systems. With support for up to 12 MP resolution recording and 4K display output, this NVR delivers exceptional image clarity. It features 8 SATA III HDD bays supporting up to 128 TB total storage, making it ideal for large-scale deployments. Advanced AI capabilities include perimeter protection, face detection/recognition, SMD Plus, and ANPR, enhancing security intelligence.

Advantages

This NVR offers robust AI analytics, high bandwidth (384 Mbps incoming/outgoing), and flexible storage options. Its 1.5U rackmount form factor saves space in server rooms. Dual HDMI outputs allow simultaneous local and remote monitoring.

Suitable for

• Large commercial or industrial surveillance systems
• Retail chains, warehouses, and logistics centers
• Smart city and public safety projects
• Integration with existing IP camera networks

Key specifications

• 64 IP channels, up to 12 MP recording resolution
• 4K display via HDMI, H.265+/H.265/H.264+/H.264/MJPEG compression
• 8 SATA III HDD bays, max 16 TB per bay (128 TB total)
• AI: Perimeter protection (4 ch), Face detection/recognition (2 ch), SMD Plus (8 ch), ANPR (1 ch)
• 2x RJ-45 10/100/1000 Mbps, 16 alarm inputs / 8 alarm outputs
• Power consumption <20W (without HDD), operating temp -10°C to +55°C

Recommendations

Pair with BCS IP cameras for optimal compatibility. Use enterprise-grade HDDs (e.g., WD Purple or Seagate SkyHawk) for 24/7 recording. Ensure network infrastructure supports 384 Mbps bandwidth.
