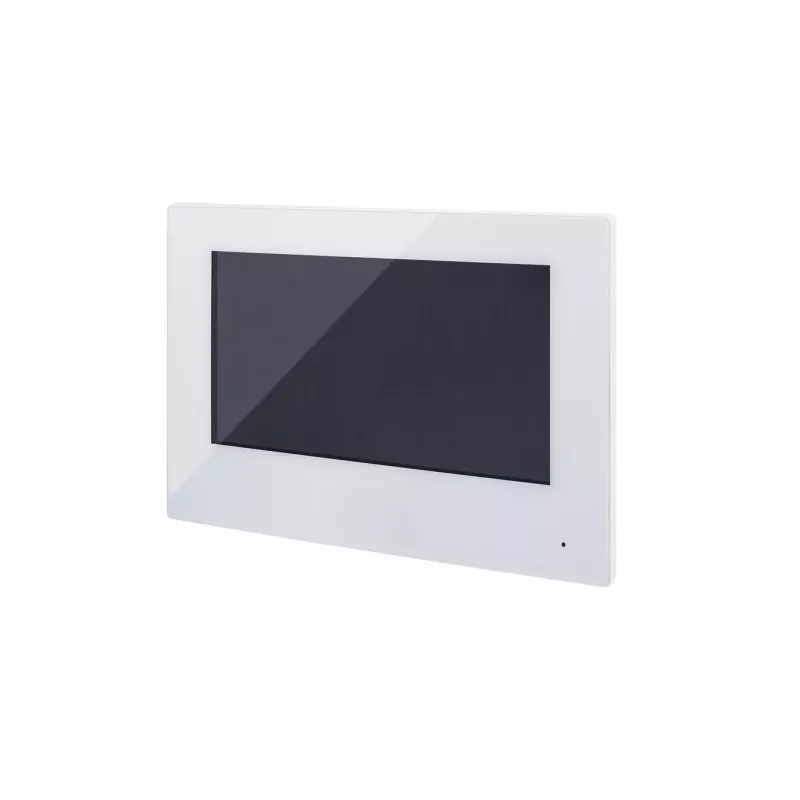

ABUS TVHS20200 7 inch PoE touchmonitor wit LAN/WiFi voor deurintercom

Experience seamless door communication with the ABUS TVHS20200, featuring a 7-inch capacitive touchscreen display with 1024 x 600 resolution for crisp visuals. This PoE-powered monitor connects via Ethernet or Wi-Fi and supports full-duplex hands-free audio, live video, and door release. Ideal for ABUS IP video door stations, it offers call history, messaging, and snapshot functions in a sleek white finish.

Overview

The ABUS TVHS20200 is a wall-mountable indoor monitor designed for ABUS IP video door intercom systems. It features a 7-inch TFT LCD touchscreen, built-in microphone and speaker, and connectivity via PoE (IEEE 802.3af/at) or 12V DC. The monitor operates on embedded Linux and supports TCP/IP protocols, with an operating temperature range of -10°C to +55°C.

What stands out

• 7-inch capacitive touchscreen with 1024 x 600 resolution
• Dual connectivity: PoE Ethernet or 2.4 GHz Wi-Fi
• Full-duplex hands-free communication with built-in microphone and speaker
• Functions: live video, two-way audio, door opening, call history, message function, snapshot
• Compatible with ABUS IP video door stations (e.g., TVHS20100, TVHS20110)
• Surface mount design in white ABS plastic

Technical details

• Display: 7" TFT LCD, capacitive touchscreen, 1024 x 600 pixels
• Connectivity: Ethernet (RJ45), Wi-Fi (2.4 GHz)
• Power: PoE (IEEE 802.3af/at) or 12V DC, max 6W
• Audio: Built-in microphone and speaker, full-duplex
• Memory: 128 MB internal for snapshots/messages
• Operating temperature: -10°C to +55°C
• Material: Plastic (ABS)
• Mounting: Surface mount

Our verdict

The ABUS TVHS20200 is a reliable and feature-rich indoor monitor for ABUS IP door stations, offering flexible connectivity and intuitive touchscreen operation in a clean white design.
