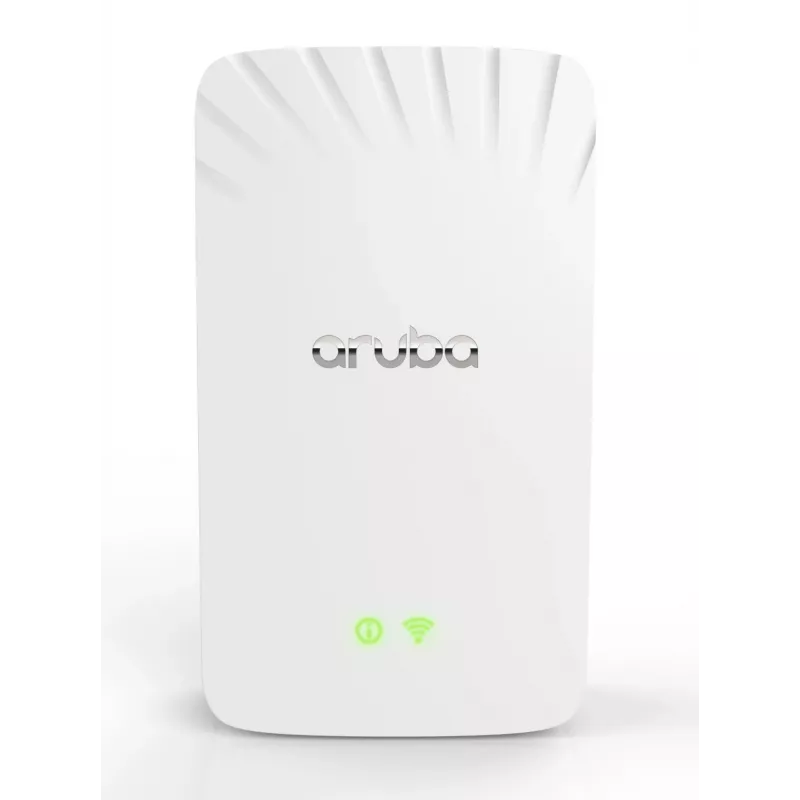

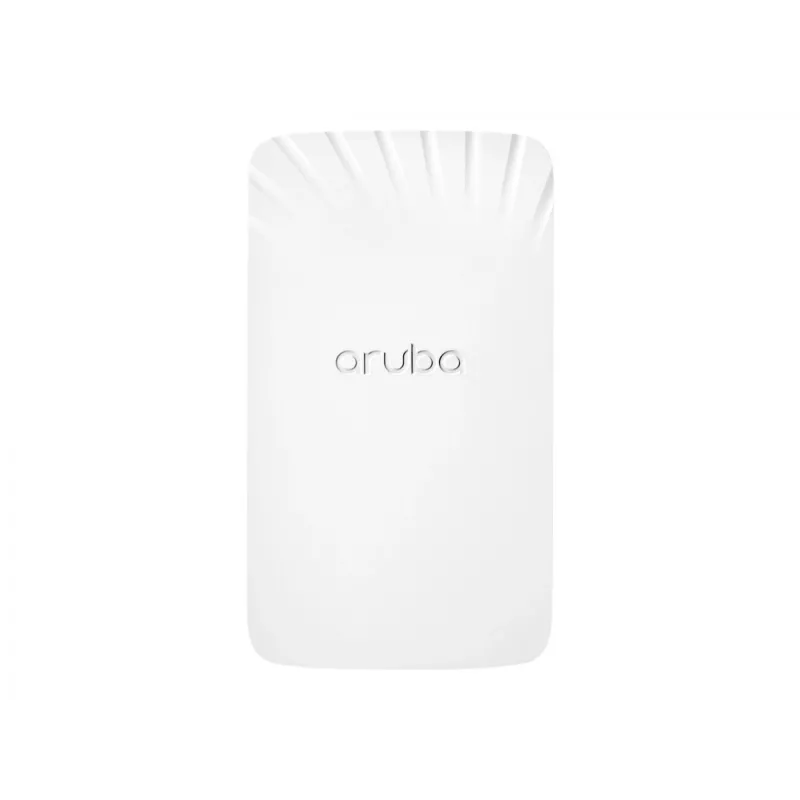

Access point HPE Aruba AP-503H dualband Wi-Fi 802.11ax

The HPE Aruba AP-503H Dual Band Wi-Fi 802.11ax is an enterprise access point that provides high-performance wireless connectivity for mobile and IoT devices. Supporting Wi‑Fi 6 (802.11ax) on both 2.4 GHz and 5 GHz bands, the AP-503H delivers up to 1487 Mbit/s aggregate data rate, dual Ethernet LAN ports, and Power over Ethernet (PoE) for flexible installation. The device includes enhanced security with WPA3 support and integrates Aruba software features such as AI-powered RF optimization and Dynamic Segmentation to improve network efficiency and segmentation.

Advantages

The AP-503H is designed for dense deployments and simultaneous multi-client operation, offering improved overall network performance compared to previous 802.11ac APs. It supports Live upgrades and unified wired/wireless policy enforcement, and its Wi‑Fi 6 capabilities increase throughput and capacity while maintaining backward compatibility with legacy 802.11 standards.

Suitable for

• Offices and corporate environments with high client density
• Education facilities and classrooms
• Retail and hospitality spaces requiring secure guest and IoT connectivity
• Small to medium enterprise branch locations

Key specifications

• Wireless standard: IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac
• Frequency bands: 2.4 GHz and 5 GHz
• Maximum data transfer rate: 1487 Mbit/s (aggregate)
• Ethernet LAN (RJ-45) ports: 2 (10/100/1000 Mbit/s)
• PoE support: Yes
• Security: WPA2, WPA3, Enhanced Open
• Antennas: 2
• Colour: White
• Weight: 0.29 kg

How to use

Mount the AP-503H in a central location for optimal coverage and connect it to the network using an Ethernet cable with PoE to power the device. Configure wireless SSIDs, security settings (WPA3 recommended where supported), and network policies through Aruba management tools or a compatible controller. Use RF optimization and Dynamic Segmentation features to prioritize traffic types and isolate IoT devices as needed.

Recommendations

Install the access point at ceiling height for best coverage in dense areas, ensure PoE power sourcing meets the device requirements, and enable WPA3 where client devices support it to enhance security.
