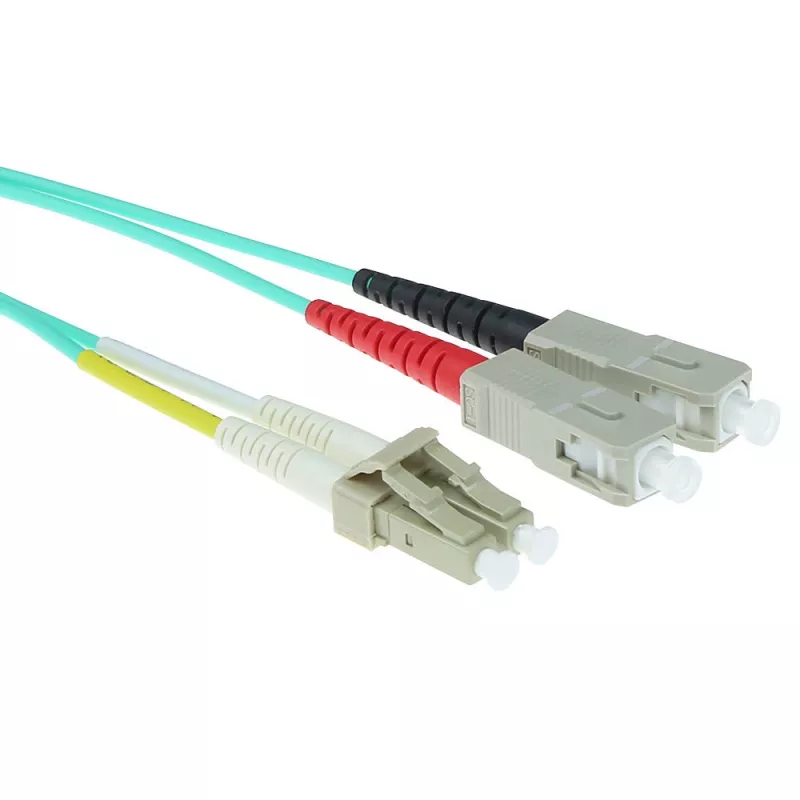

ACT 0,5 meter LSZH multimode 50/125 OM3 glasvezel-patchkabel duplex met LC- en SC-stekkers

The ACT 0.5 meter LSZH Multimode 50/125 OM3 fiber patch cable duplex with LC and SC connectors is a short-range fiber optic cable designed for reliable high-speed data links in indoor networking environments. It uses 50/125 µm multimode OM3 fiber optimized for elevated bandwidth and low attenuation over short distances. The duplex configuration supports simultaneous transmit and receive channels, while the LC and SC connector pair provides compatibility with a wide range of network equipment and patch panels. The outer jacket is made from low-smoke zero-halogen (LSZH) material to limit toxic emissions and dense smoke in the event of a fire, making it suitable for installations in confined or public indoor spaces.

Advantages

The cable combines OM3 multimode performance with a compact duplex form factor and common connector types (LC and SC), enabling straightforward integration into data center racks, telecom closets, and equipment cabinets. The 0.5 meter length reduces excess cabling and signal loss in short patching runs. LSZH jacket construction minimizes the release of halogenated compounds and smoke, supporting safer indoor deployment and compliance with environments where reduced toxic emissions are required.

Suitable for

• Short links between network switches, transceivers and patch panels inside data centers and server rooms
• Equipment-to-equipment connections in telecom closets and wiring cabinets
• High-speed multimode installations using OM3 specifications for 10GbE and similar applications over short distances

Key specifications

• Fiber type: Multimode OM3 (50/125 µm)
• Length: 0.5 meter
• Configuration: Duplex (two fibers)
• Connectors: LC on one end, SC on the other end
• Jacket material: LSZH (Low-Smoke Zero-Halogen)
• Attenuation: low multimode attenuation suitable for short-range links
• Polish/connector type: compatible with standard multimode LC/SC terminations

How to use

Install the cable by aligning and inserting the LC connector into the LC port and the SC connector into the SC port, ensuring correct polarity for transmit and receive channels. Avoid sharp bends and maintain the minimum bend radius specified for multimode fiber to preserve signal integrity. Secure the cable in the rack or patch panel using cable management accessories to prevent strain on connectors. For best performance, keep connectors clean and protected with dust caps when not connected and perform visual inspection or use a fiber inspection tool if contamination is suspected.

Recommendations

Use this 0.5 meter OM3 LSZH patch cable for short indoor connections where space is constrained and where reduced smoke and toxicity are required. Pair it with compatible OM3 transceivers and ensure proper polarity and connector seating to achieve expected data rates. Regularly inspect and clean fiber endfaces to maintain low loss and reliable links.
