ACT 10 meter HDMI Premium High Speed 4K actieve optische kabel v2.0 LSZH HDMI-A stekker - HDMI-A stekker

The ACT AOC 4K HDMI v2.0 cable has been engineered with great care for use in the most sensitive environments where exceptional performance and reliability are must-haves. Made of copper and fiber, this AOC cable enables seamless connection over distances up to 100 meters without data loss. The Active Optical Cable is suited for the most sensitive applications thanks to its complete shielding, low RFI/EMI, and LSZH cable jacket. With a bandwidth of 18Gbps 4:4:4, it effortlessly handles 4K resolutions (3840x2160) at 60Hz. This premium cable also supports CEC, HDR, HDCP 2.2, EDID, HEC, ARC, multi-channel audio, Dolby True HD, and DTS-HD Master Audio - features that guarantee optimal performance in professional settings.

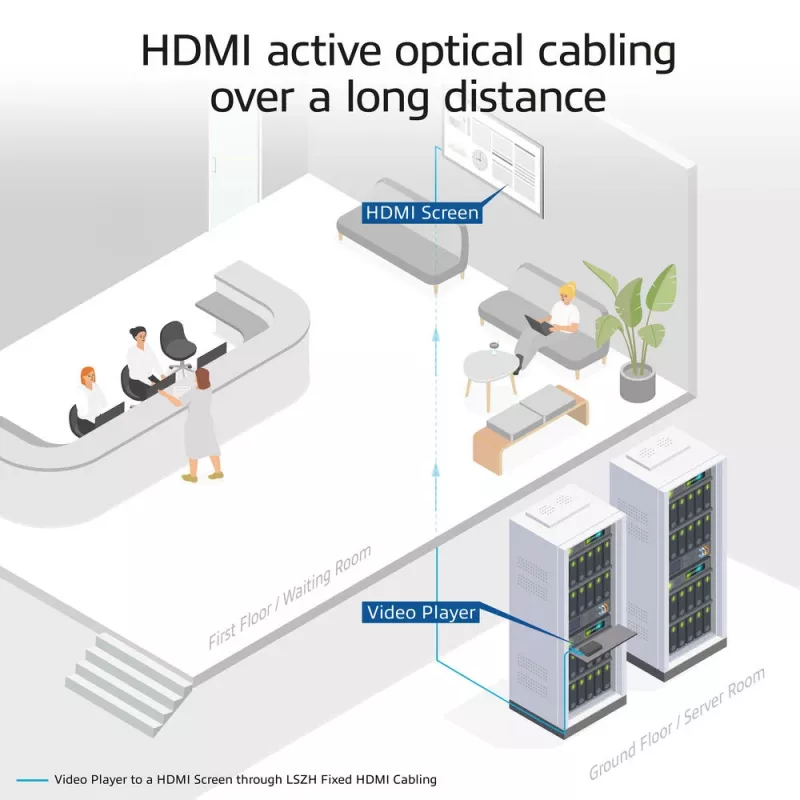

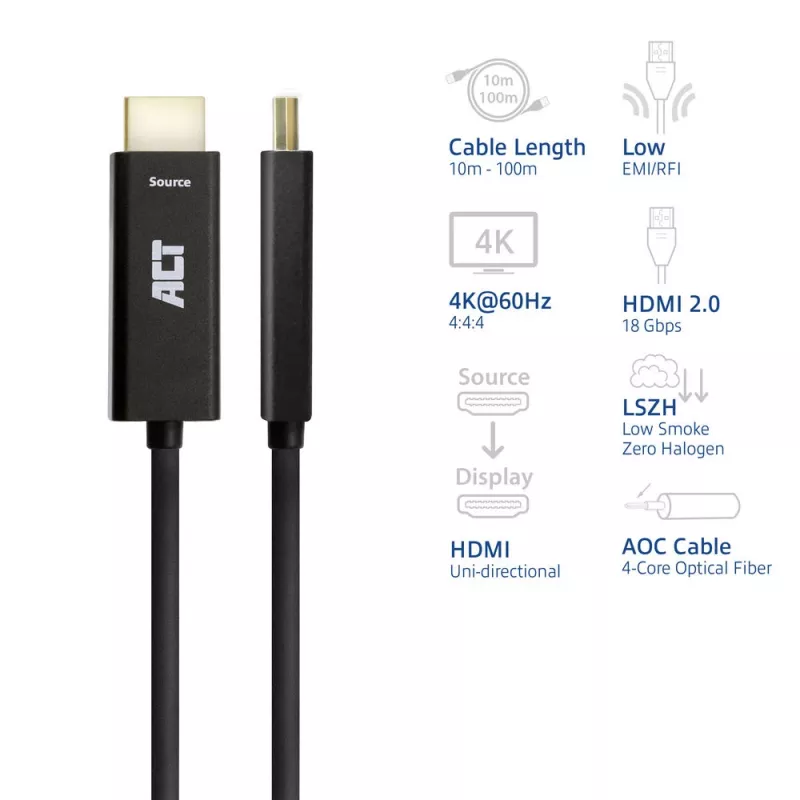

AOC: copper and fiber for distances up to 100m and the best video and audio quality
The AOC (Active Optical Cable) cable is carefully assembled and made of copper and fiber for transferring 4K @ 60Hz over long distances up to 100m without data loss. The cable has a bandwidth of 18Gbps 4:4:4 for high resolution video content.

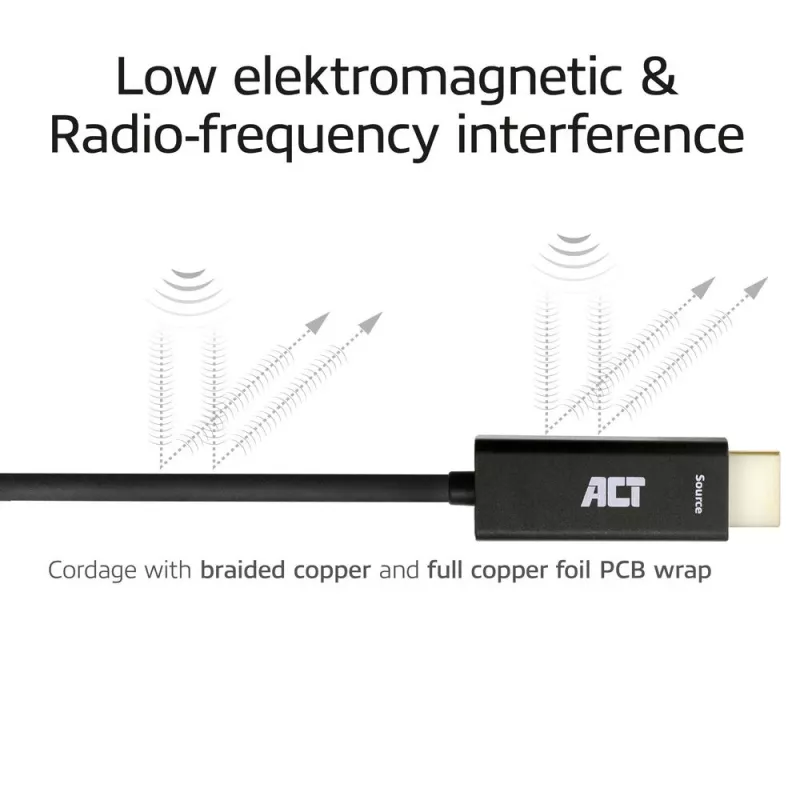

Fully shielded: suitable for sensitive applications
The Active Optical Cable has a Kevlar protected fiber and aluminium foiled shielding. Additionally, the chipset in the connector is encased in copper shielding. This means that the cable is fully shielded, from the source connector to the display connector and is suitable for sensitive applications due to low RFI/EMI. Furthermore, the cable functions without additional power.

Resolution of 4K @ 60Hz
This 4K HDMI cable supports a resolution of 3840x2160 @ 60Hz. Furthermore, the cable supports High Dynamic Range (HDR) video for expansive contrast ratio and color accuracy, CEC, HDCP 2.2, EDID, HEC, ARC, Multi-channel audio, Dolby True HD, and DTS-HD Master Audio.

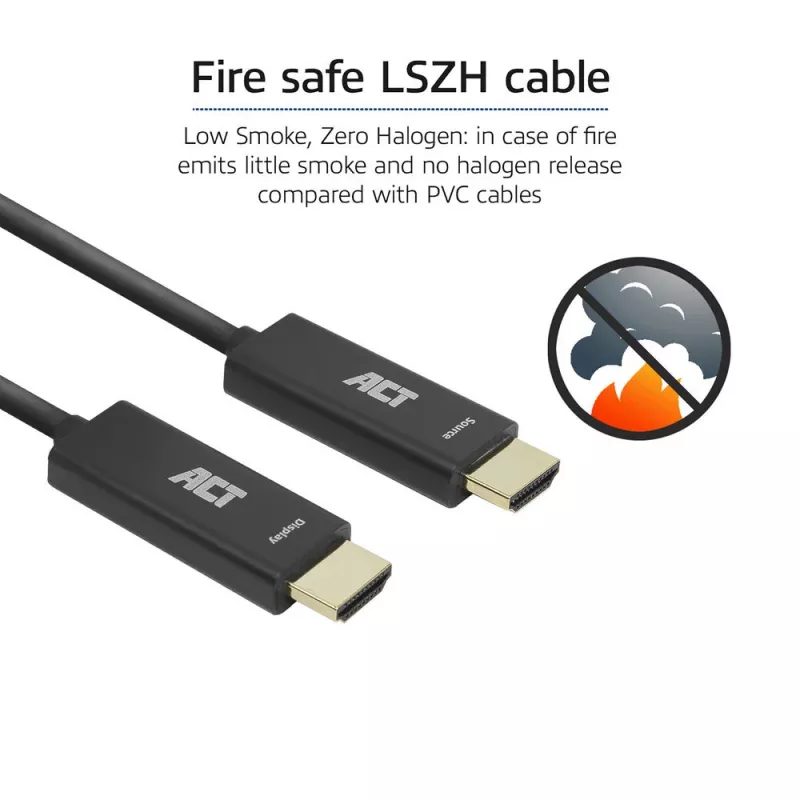

LSZH: reduces the risk of high concentrations of toxic gases
The cable has a LSZH (Low Smoke Zero Halogen) cable jacket that reduces the risk of high concentrations of toxic gases in case the cable is exposed to open flames or in the event of a fire.

Cable marking for easy identification

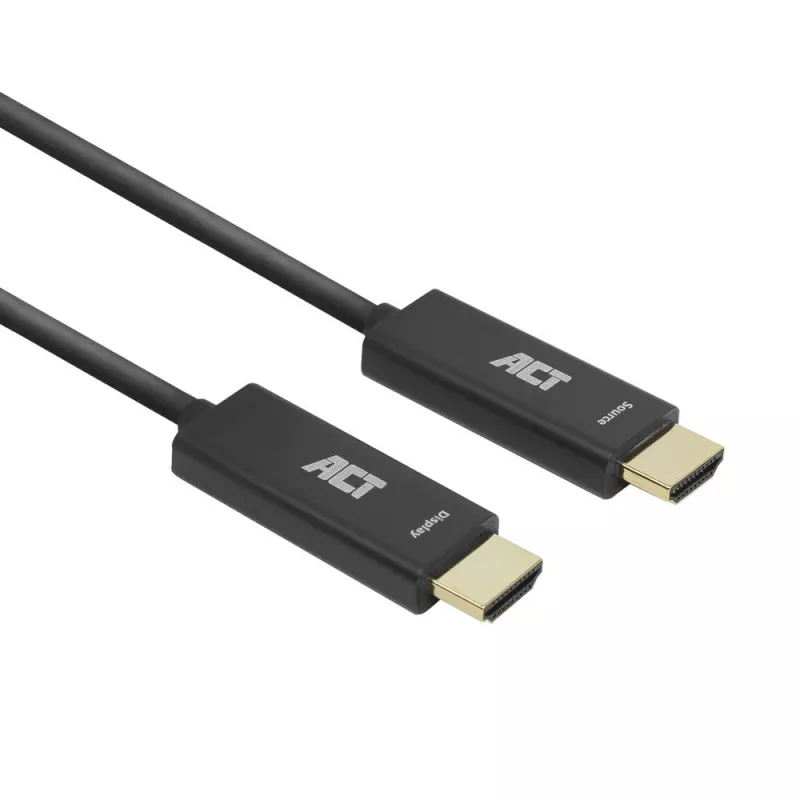

It is important that the cable is connected correctly. That is why we marked the connectors of the ACT AOC HDMI v2.0 cable to ensure easy identification of the source and display connector.

User scenarios
Medical applications: High-resolution imaging is critical in radiology for detailed diagnosis. The low RFI/EMI minimizes interference with sensitive medical devices.
Nautical applications: The cable facilitates the connection between equipment located in different parts of the vessel without signal loss. The Kevlar protected fiber offers durability and reliability in harsh marine environments.
Data center applications: The LSZH jacket ensures safety by reducing toxic gas emissions in case of a fire.
Educational and corporate applications: Provides clear and detailed visuals for large audiences and supports high-definition displays for video conferencing, presentations, and collaborative work.

How to use

Identify the source and display ends using the marked connectors, then insert the HDMI Type A male connectors firmly into the source device (for example a media player, PC or set-top box) and the display (TV, monitor or projector). The cable supports plug-and-play operation with no external power required. Ensure connectors are fully seated and avoid sharp bends or tight kinks; follow standard cable routing practices to minimise mechanical stress and maintain signal integrity.

Recommendations

Use this active optical HDMI cable for long-distance 4K@60Hz connections in professional, medical, marine or data centre environments. Avoid tight bends and secure the cable to prevent strain; verify device HDMI settings (HDR, audio formats, HDCP) to ensure full compatibility.
