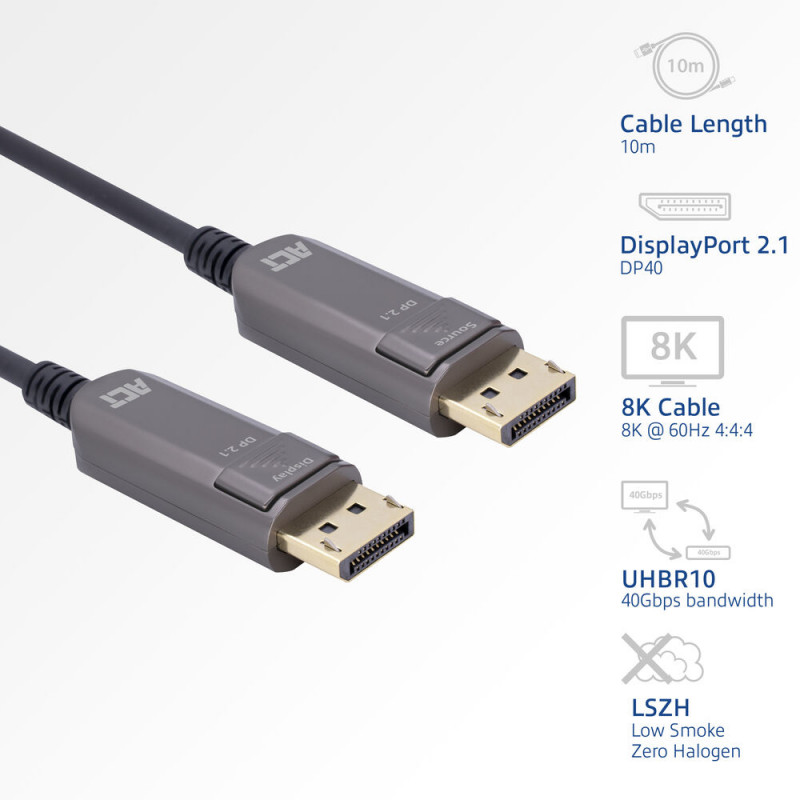

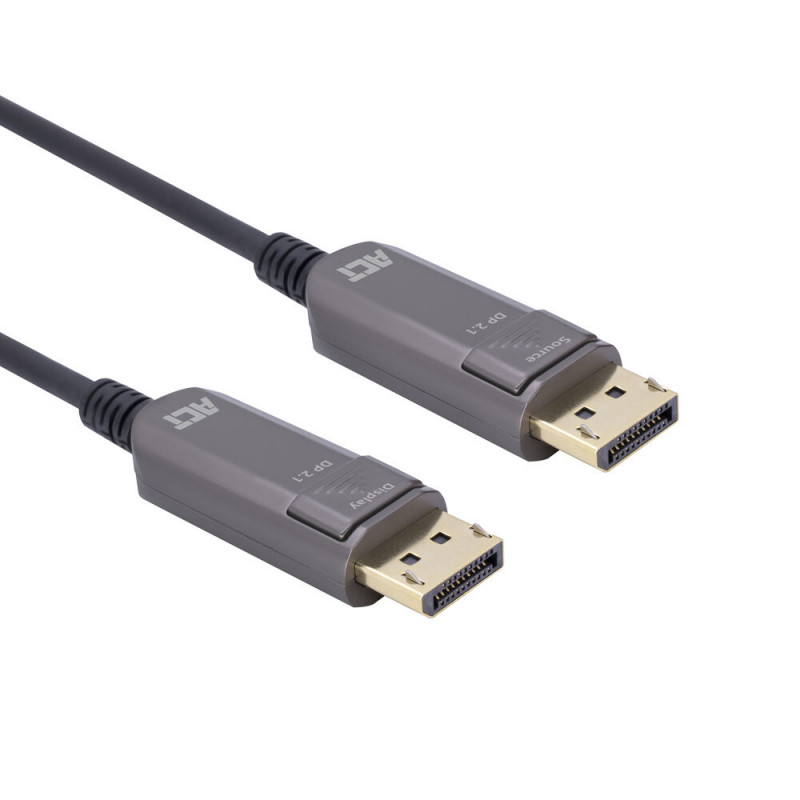

ACT 10m 8K DisplayPort 2.1 DP40 UHBR10 LSZH actieve optische kabel (AOC) AK4170

Long DisplayPort runs often suffer from signal loss and interference, limiting high-resolution performance. This active optical cable solves that by converting electrical signals to light, ensuring stable 8K video over 10 meters.

Who is it for

Professionals and enthusiasts who need a reliable, long-distance connection between a DisplayPort source and an 8K display, without compromising on quality.

Main features

• Active Optical Cable (AOC) technology for lossless signal over 10 meters
• DisplayPort 2.1 with DP40 bandwidth (40 Gbps) and UHBR10 support
• Supports 8K (7680x4320) resolution with DSC for high refresh rates

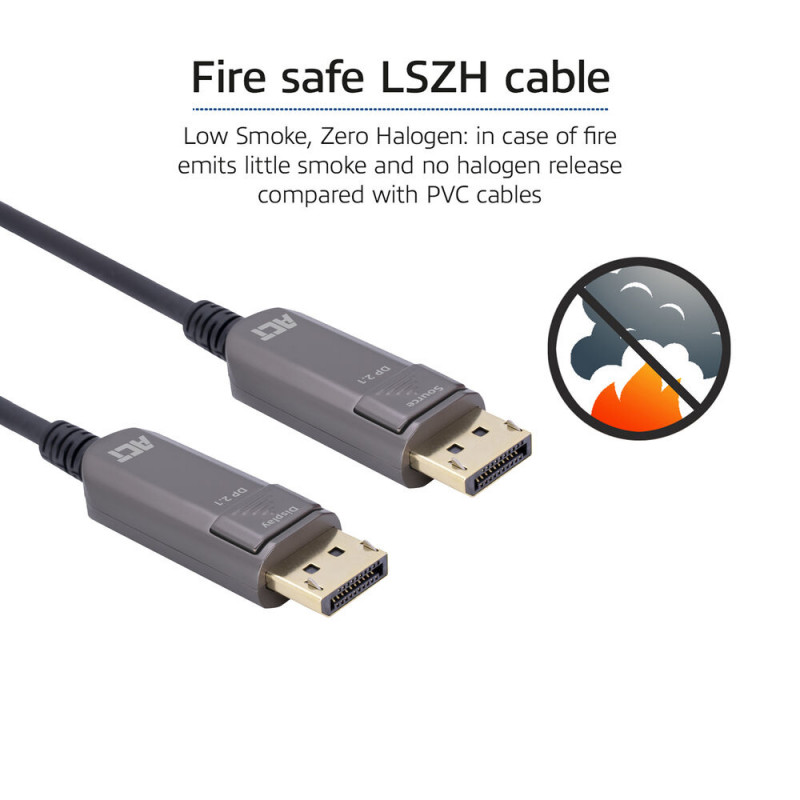

• LSZH jacket for low smoke and halogen-free safety
• Directional design with source and display ends for optimal performance
• Bus-powered from DisplayPort interface, no external power needed
• Supports HDR10, HDCP 2.3, and multi-channel audio

Specifications

• Cable length: 10 m
• Connector type: DisplayPort Male to DisplayPort Male
• DisplayPort version: 2.1
• Bandwidth: 40 Gbps (DP40)
• UHBR support: UHBR10 (10 Gbps per lane)
• Max resolution: 8K (7680x4320)
• Max refresh rate: 8K@60Hz (with DSC), 4K@144Hz (without DSC)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Directional: Yes (Source/Display specific)
• Power source: Bus-powered (from DisplayPort interface)
• HDR support: HDR10, DisplayHDR
• DSC support: Display Stream Compression 1.2a
• HDCP support: HDCP 2.3
• Audio support: Multi-channel audio
• G-Sync/FreeSync support: Yes
• Conductor material: Fiber Optic

Tips

Ensure the source and display ends are connected correctly as the cable is directional. For best results, use with DisplayPort 2.1 compatible devices to achieve full 8K performance.
