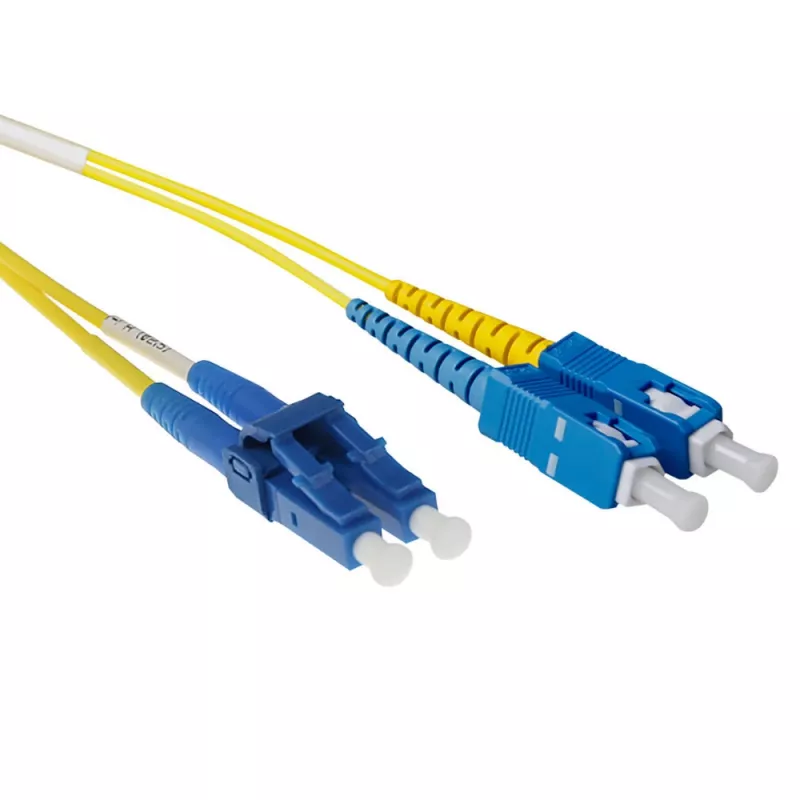

ACT 30 meter LSZH Singlemode 9/125 OS2 short-boot glasvezel-patchkabel duplex met LC- en SC-stekkers

The ACT 30m LSZH Singlemode 9/125 OS2 Duplex LC SC fiber patch cable is a factory-terminated optical jumper designed for indoor networking applications. This 30 meter cable uses a 9/125 µm singlemode core with OS2 performance and a duplex configuration combining LC and SC connectors to link equipment with different port types. The LSZH jacket reduces smoke and toxic gas emission in case of fire, making the cable suitable for enclosed spaces such as data centers, telecommunications rooms and office comms closets.

Advantages

The singlemode 9/125 core and OS2 classification provide low attenuation and stable transmission over longer distances compared with multimode solutions. The duplex design with LC and SC terminations allows flexible connectivity between switches, routers and transceivers without adapting hardware. The LSZH outer jacket improves safety for indoor installations by limiting smoke and halogen release. Factory-terminated connectors ensure consistent optical performance and ease of deployment.

Suitable for

• Interconnection of network equipment in data centers and server rooms
• Telecommunications racks and patch panels
• Longer indoor optical runs requiring singlemode performance
• Environments where low smoke and zero halogen emissions are required

Key specifications

• Length: 30 meters
• Fiber type: Singlemode
• Core/cladding diameter: 9/125 µm
• Optical class: OS2
• Configuration: Duplex
• Connectors: LC to SC
• Jacket material: LSZH (Low Smoke Zero Halogen)

How to use

Route the patch cable along cable trays or within conduits, avoiding tight bends and mechanical stress. Align and insert the LC and SC connectors into the appropriate device ports or patch panel adapters until they click into place. Ensure fiber transceivers or ports are compatible with singlemode OS2 fiber and that dust caps are removed from connectors before insertion. For removal, depress the connector latch and pull straight to avoid damaging the ferrule or housing.

Recommendations

Maintain a minimum bend radius as specified by the manufacturer when installing and storing the cable, keep connectors clean using proper fiber cleaning tools, and avoid excessive tensile loads during installation to preserve optical performance and service life.
