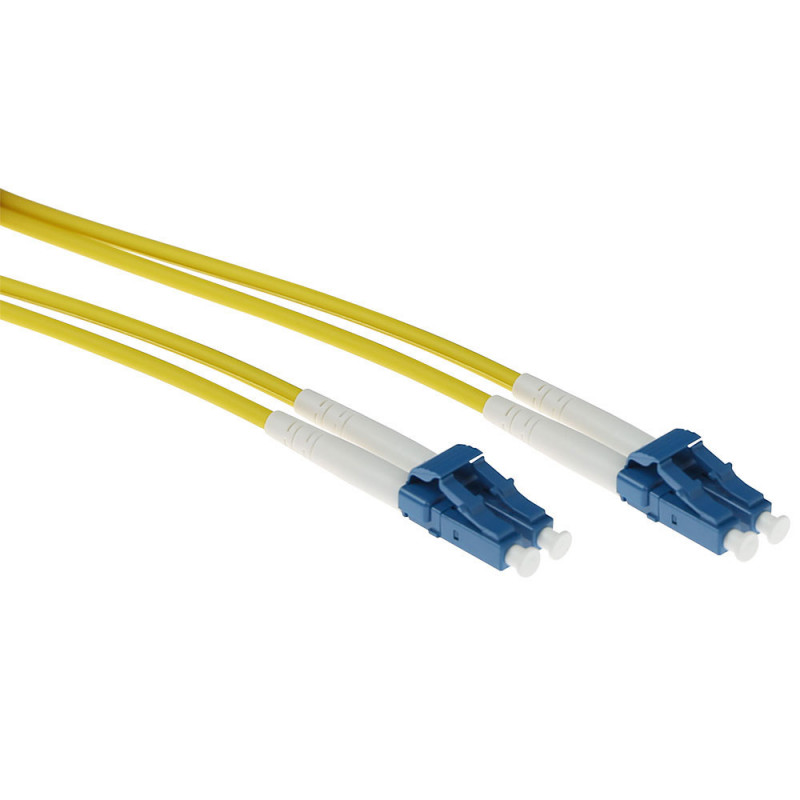

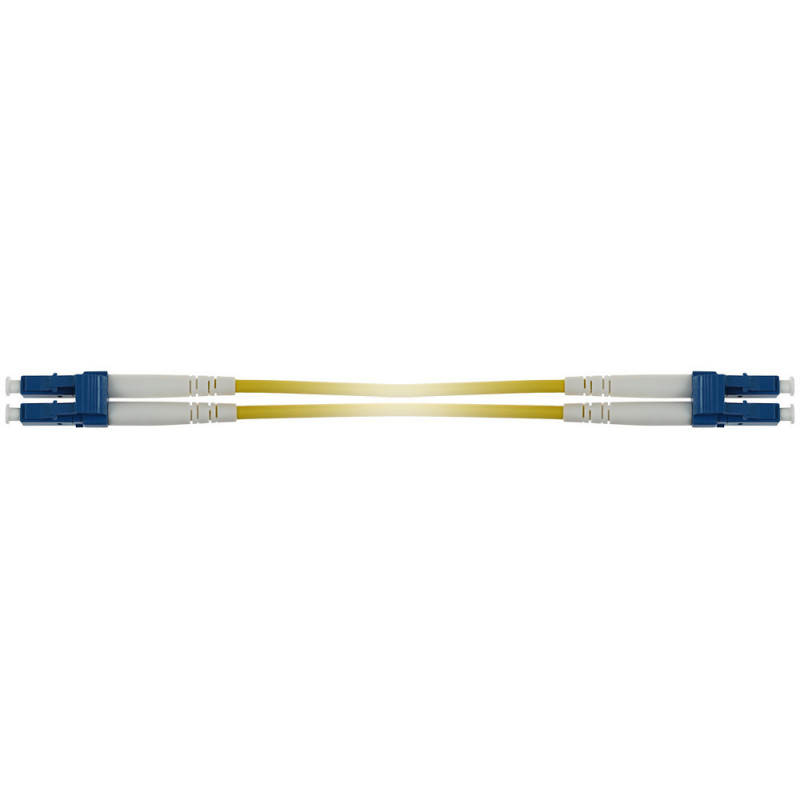

ACT 50m Singlemode OS2 Duplex Armored LWL-patchkabel LC/LC RL3350

50 meters of armored singlemode OS2 fiber with LC/UPC connectors on both ends—ready for demanding indoor/outdoor runs where durability matters.

Overview

The ACT RL3350 is a duplex fiber optic patch cable built around 9/125 µm singlemode fiber, meeting OS2 specifications for low attenuation across long distances. A yellow LSZH jacket protects the two fibers, while the armored construction adds crush and rodent resistance without sacrificing flexibility. Each end is terminated with LC/UPC connectors, providing a reliable, low-loss link for high-speed optical networks.

What stands out

• Armored jacket withstands physical stress in trays, risers, and outdoor conduits.
• LC connectors offer a compact footprint for high-density patching.
• LSZH jacket emits low smoke and zero halogen in case of fire.
• Supports 1310 nm and 1550 nm wavelengths for standard singlemode applications.

Technical details

• Cable length: 50 m
• Fiber type: Singlemode OS2, 9/125 µm
• Configuration: Duplex (2 fibers)
• Connectors: LC/UPC to LC/UPC
• Jacket: LSZH, yellow

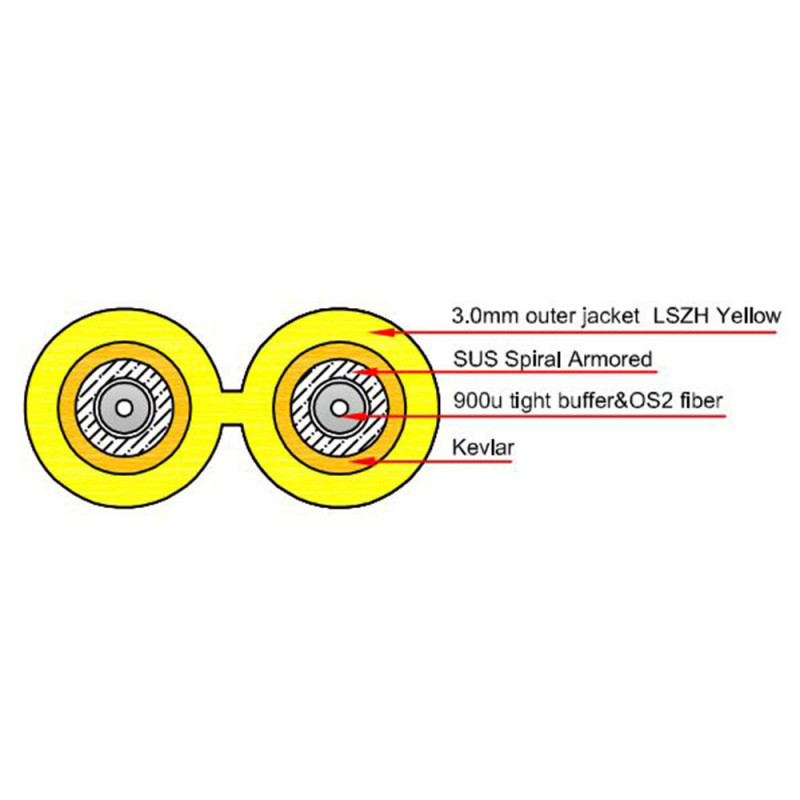

• Armoring: Yes
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB

Our verdict

When you need a long singlemode link that can take a beating, the ACT RL3350 delivers armored protection and OS2 performance in a single, ready-to-deploy cable.
