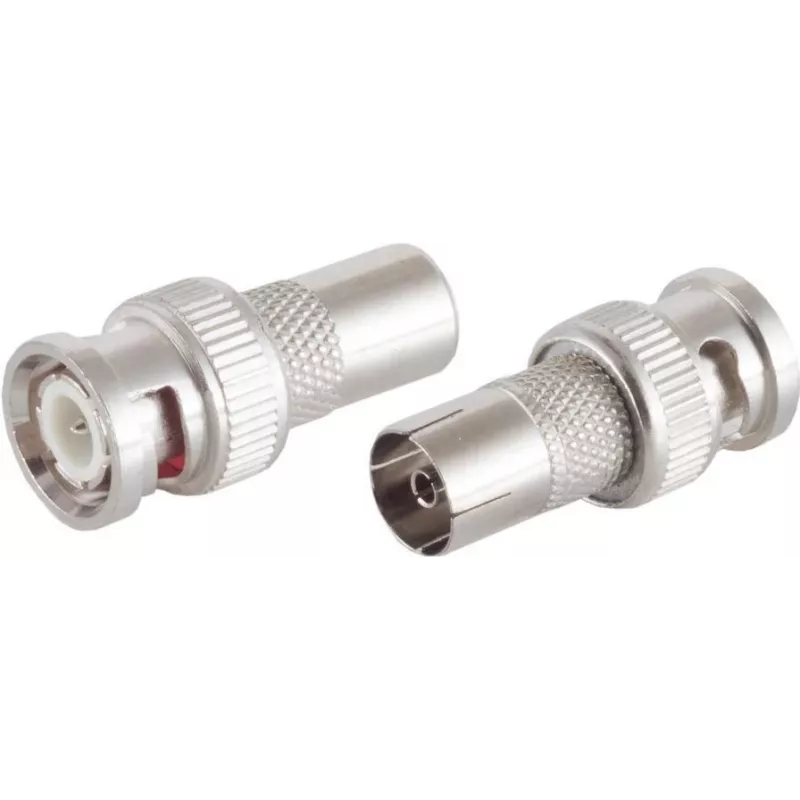

Adapter ShiverPeaks 98813 BNC (video/audio) naar IEC-koppeladapter

ShiverPeaks 98813 BNC (video/audio) to IEC coupling adapter provides a simple, passive conversion between BNC and IEC coaxial connectors. Designed for video and audio signal connections, this adapter allows equipment with BNC cables to interface with devices that use IEC coaxial sockets. The adapter is intended for use in CCTV, broadcast and AV setups where a direct mechanical and electrical coupling is required without signal processing.

Advantages

The adapter offers a compact, low-profile solution for converting between BNC and IEC connections without the need for cable replacement. It maintains the coaxial signal path and provides a reliable mechanical connection suitable for temporary or semi-permanent installations. As a passive coupling device, it requires no power and introduces minimal complexity into existing cabling systems.

Suitable for

• Connecting BNC-ended coaxial cables to devices with IEC coaxial sockets
• CCTV camera systems and DVR/recorder interfaces
• Broadcast and studio setups requiring quick connector adaptation
• Audio-video installations where conversion between connector types is needed

Key specifications

• Connector types: BNC to IEC coupling
• Signal types supported: video and audio coaxial signals
• Usage: passive, no power required
• Form factor: compact inline coupling adapter suitable for rack or field use

How to use

To use the adapter, align the BNC and IEC connectors with the corresponding cable ends or device sockets and engage the mechanical coupling until secure. For BNC connections, push and twist to lock the BNC plug into the adapter; for IEC, insert and ensure the coaxial interface seats firmly. Verify the physical connection and then test the audio/video signal path to confirm continuity and signal integrity.

Recommendations

Use the adapter in dry, indoor environments or within protected outdoor housings; avoid exposing the connector to moisture or mechanical stress. For critical installations, verify impedance matching and signal quality after installation and prefer permanent terminations where frequent disconnection is not required.
