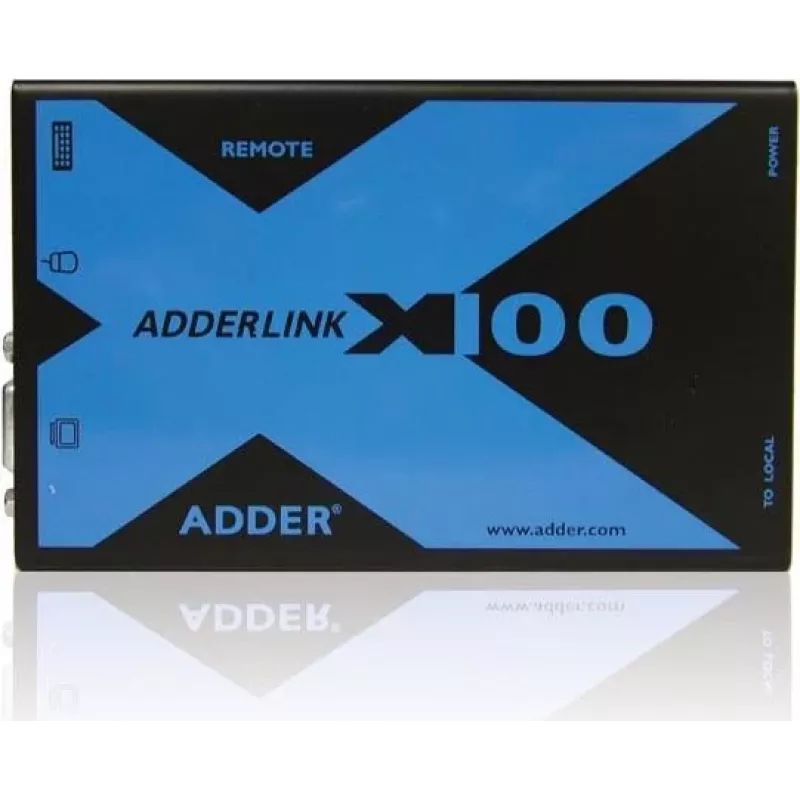

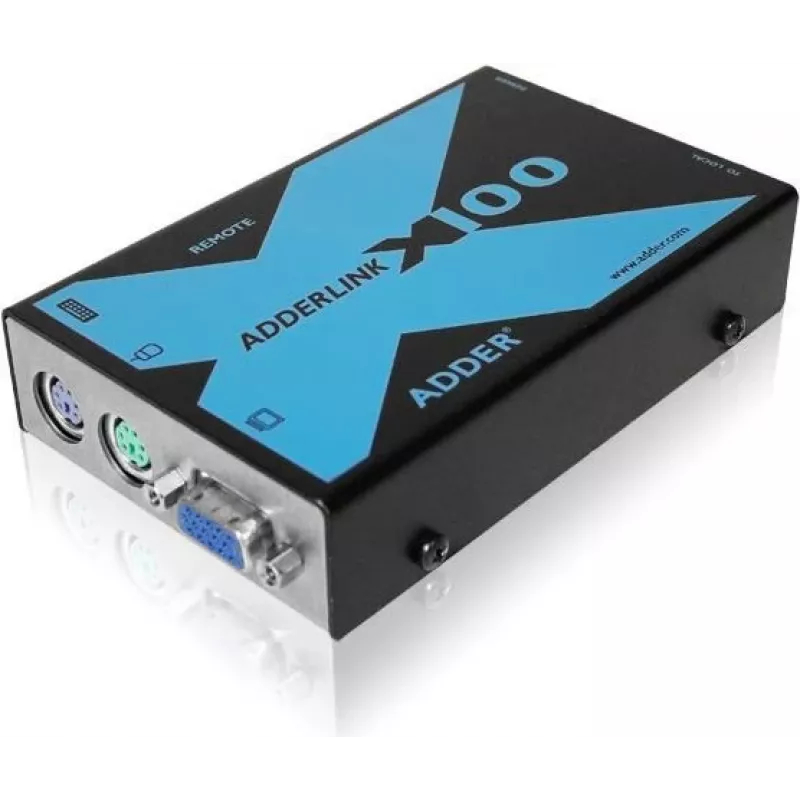

Adder Adderlink X100 VGA USB KVM-extender set via CAT tot 100 meter (X100-USB/P-IEC)

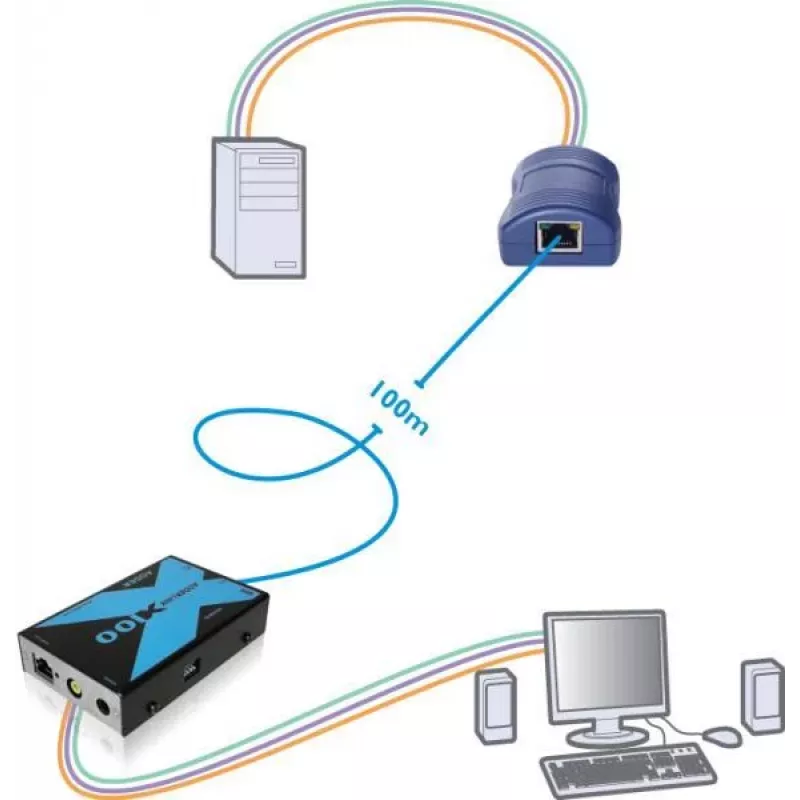

Extend VGA video and USB keyboard/mouse signals up to 100 meters over standard Cat5e/6/7 cable with the Adder Adderlink X100. This compact KVM extender set delivers 1920 x 1200 @ 60Hz video with near-zero latency, making it ideal for server rooms, industrial control, and remote workstation applications. The set includes transmitter and receiver units, power supply, USB Type A-B cable, and VGA cable.

Overview

The Adderlink X100 is a hardware-based KVM extender that transmits VGA video and USB HID signals over a single Cat5e/6/7 twisted-pair cable. It supports one computer and one remote user, with USB keyboard and mouse emulation for reliable boot-up and operation. The system is OS independent and supports hot-plugging of USB peripherals.

What stands out

• Extends VGA and USB up to 100 m (330 ft) over Cat5e/6/7
• Supports resolutions up to 1920 x 1200 @ 60Hz
• Near-zero latency for real-time control
• USB keyboard and mouse emulation
• Compact desktop form factor with LED indicators

Technical details

• Transmitter connectors: 1x VGA In, 1x USB Type B In, 1x RJ45 Out, 1x Power Jack

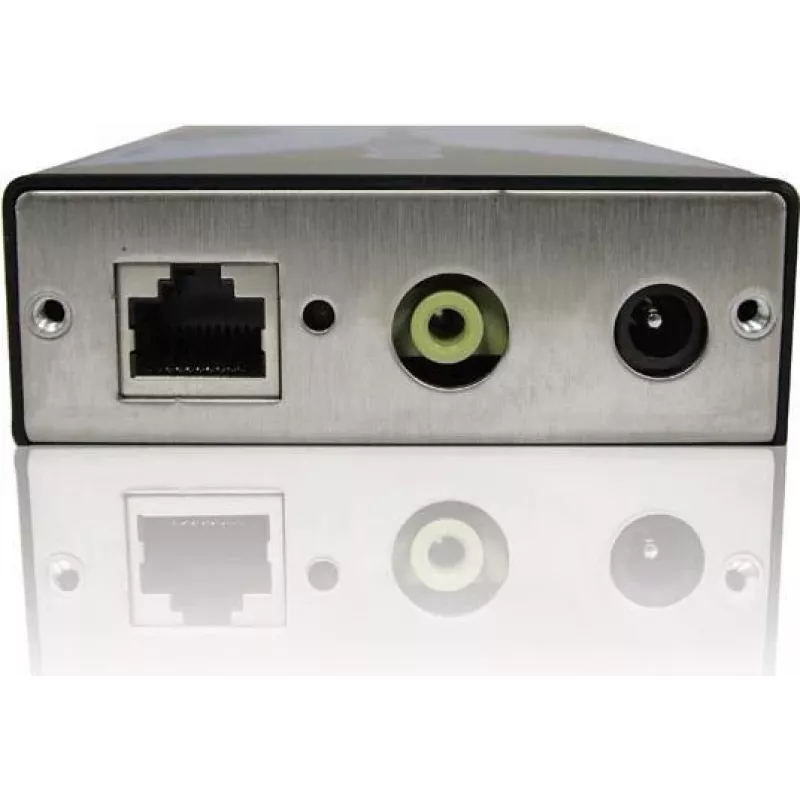

• Receiver connectors: 1x VGA Out, 2x USB Type A Out, 1x RJ45 In, 1x Power Jack
• Power supply: External AC adapter with IEC C14 input
• LED indicators: Power, Link, Status
• Mounting: Desktop, optional rackmount kit (accessory)

Our verdict

A reliable, no-frills KVM extension solution for VGA and USB over long distances. The Adderlink X100 delivers crisp video and responsive control without software or drivers.
