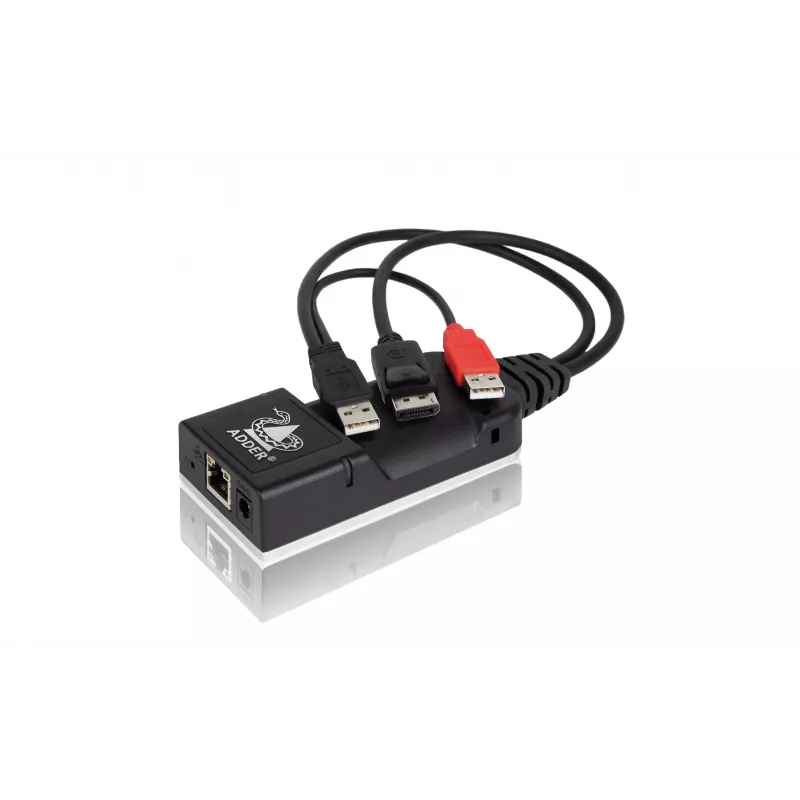

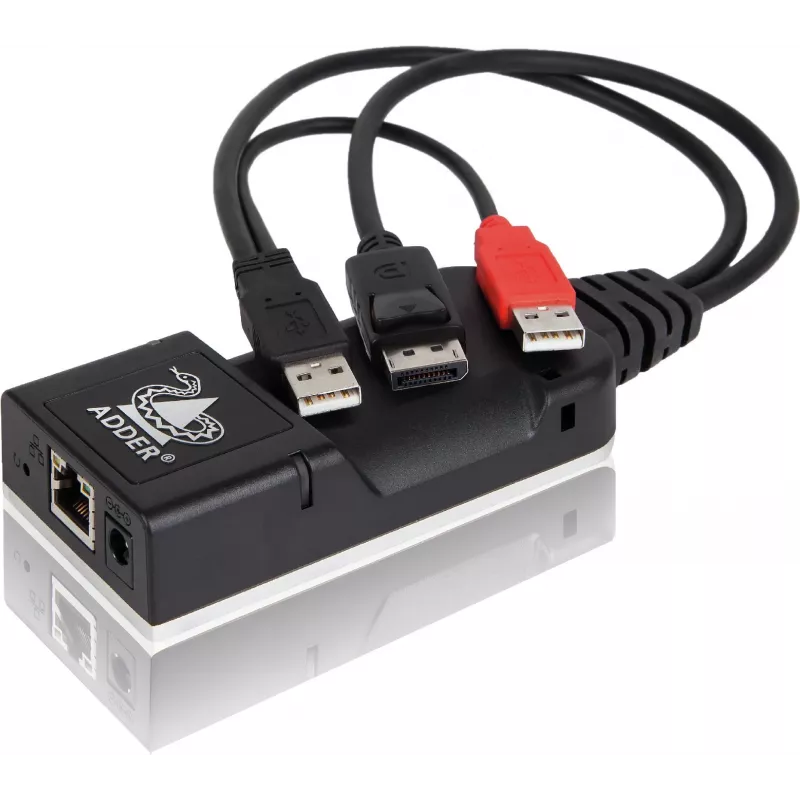

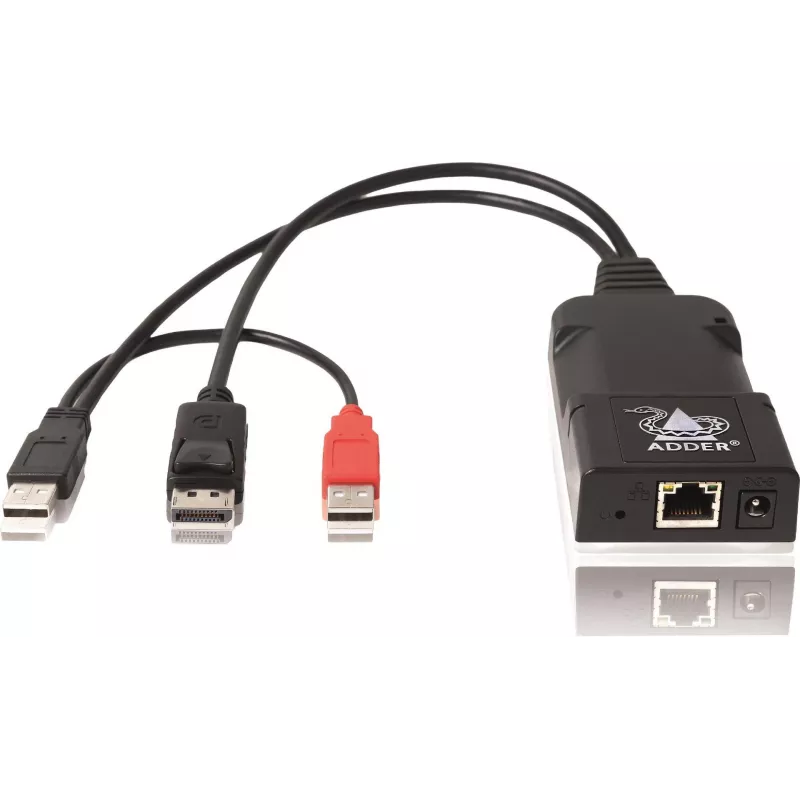

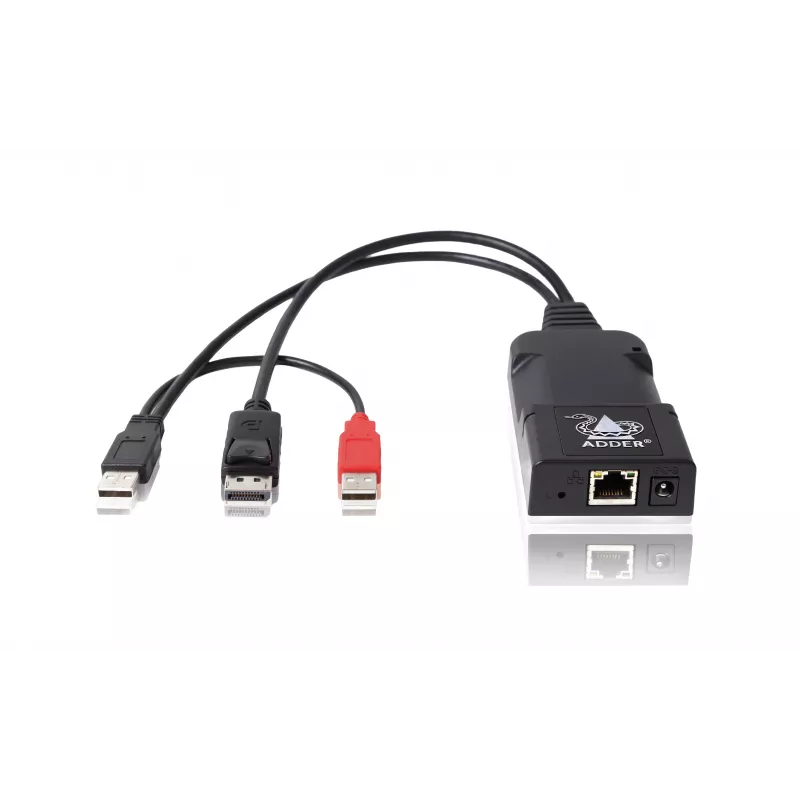

ADDER ALIF101T-DP DisplayPort KVM-extender zender via Cat5e/6/7 - 2560x1600, USB 2.0, audio, zwart aluminium

The ADDER ALIF101T-DP is a KVM extender transmitter that extends DisplayPort video, USB 2.0, and audio signals up to 100 meters over a single Cat5e/6/7 cable. It supports resolutions up to 2560 x 1600 at 60Hz, enabling high-quality video transmission for professional AV and control room applications.

Advantages

This transmitter delivers uncompressed, low-latency video with USB 2.0 and audio extension, all in a durable black aluminium chassis. Its compatibility with standard Cat5e and higher cabling makes installation flexible and cost-effective.

Suitable for

• Control rooms and broadcast environments
• Industrial and medical imaging systems
• Digital signage and remote workstation setups

Key specifications

• Video input: 1 x DisplayPort
• Maximum resolution: 2560 x 1600 @ 60Hz
• USB support: USB 2.0 (HID, mass storage, isochronous)
• Audio: 3.5mm line in/out
• Network cable: Cat5e, Cat6, Cat7
• Maximum distance: 100 m (330 ft)
• Material: Aluminium
• Colour: Black

Recommendations

Pair with an ADDER receiver (sold separately) for a complete point-to-point KVM extension solution. Use shielded Cat6 or Cat7 cable for optimal performance in high-interference environments.
