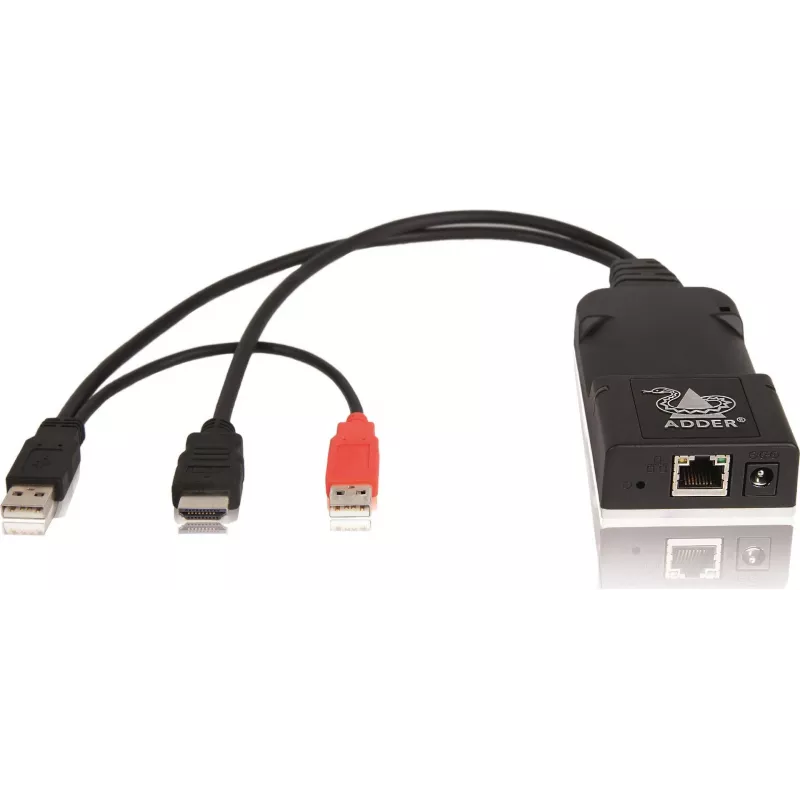

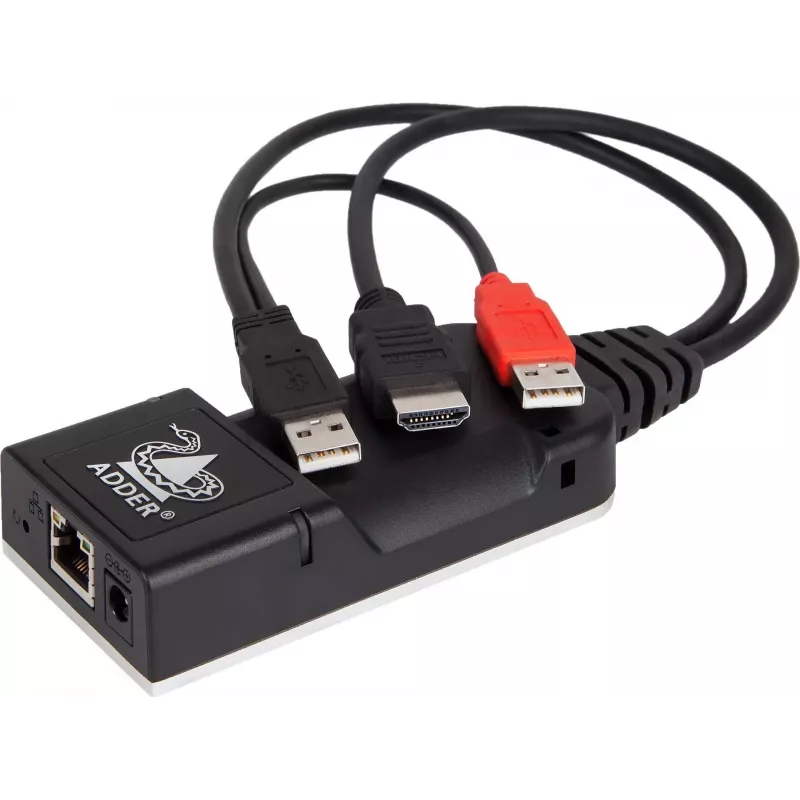

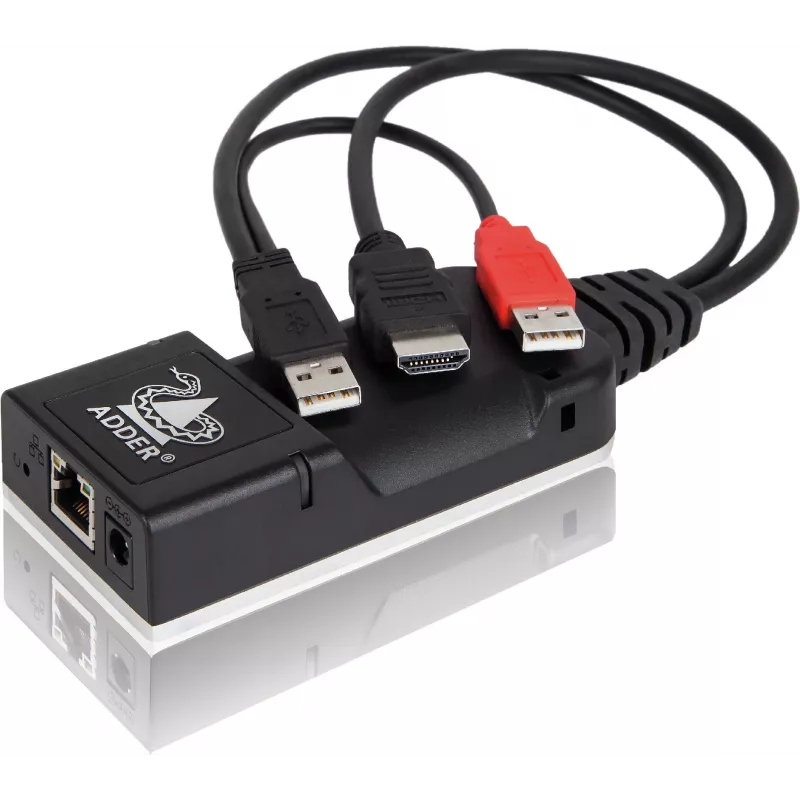

ADDER ALIF101T-HDMI KVM over IP transmitter - HDMI, USB, audio, Cat5e/Cat6/Cat7, 2560x1600@60Hz, zwart aluminium

Experience ultra-low latency KVM over IP with the ADDER ALIF101T-HDMI, delivering stunning 2560 x 1600 @ 60Hz video over standard Cat5e or higher cabling. This transmitter extends HDMI, USB 2.0, and stereo audio across your network with AES 128-bit encryption and RSA 2048-bit authentication for secure, high-performance remote access.

Overview

The ADDER ALIF101T-HDMI is a compact, aluminium-bodied KVM transmitter designed for professional AV and IT environments. It connects to a computer's HDMI output, USB port, and audio line-out, then transmits those signals over a Gigabit Ethernet network to a compatible ADDERLink INFINITY receiver. With support for resolutions up to 2560 x 1600 at 60Hz, it ensures crisp, detailed visuals for demanding applications.

What stands out

• Ultra-low latency KVM over IP for real-time control
• Supports Cat5e, Cat6, and Cat7 cabling up to Gigabit speeds
• Secure transmission with AES 128-bit encryption and RSA 2048-bit authentication
• Durable black aluminium chassis suitable for desktop or rackmount use
• Compatible with ADDERLink INFINITY Manager (AIM) for centralized management

Technical details

• Device Type: KVM over IP Transmitter
• Connectivity: Wired
• Video Input: 1 x HDMI
• USB Host Connection: 1 x USB Type B (USB 2.0, HID & Mass Storage)
• Audio Input: 1 x 3.5mm Line In (Stereo)
• Network Interface: 1 x RJ45 Gigabit Ethernet
• Maximum Resolution: 2560 x 1600 @ 60Hz
• Supported Cable Type: Cat5e, Cat6, Cat7
• Power Input: 12V DC
• Operating Temperature: 0 to 40 °C (32 to 104 °F)
• Chassis Material: Aluminium
• Colour: Black
• Mounting Options: Desktop, Rackmount (with optional kit)

Our verdict

A robust and secure KVM over IP transmitter that combines high-resolution video, USB, and audio extension with enterprise-grade encryption, making it ideal for control rooms, broadcasting, and industrial applications.
