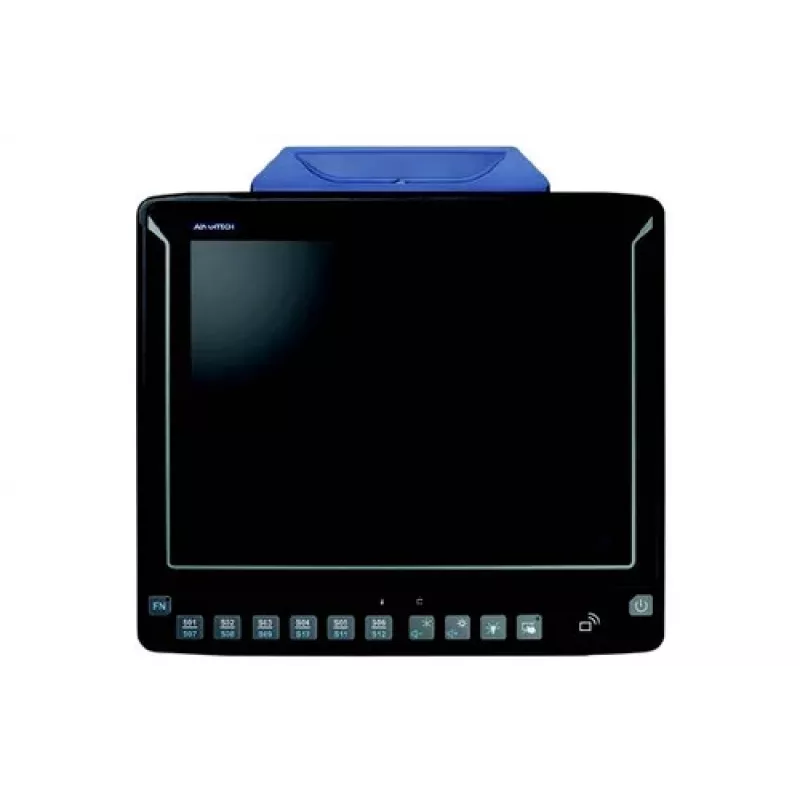

Advantech DLT-V7310P 26,4 cm 10,4'' projectief-capacitieve USB RS232 BT Ethernet WLAN - Celeron - 1,8 GHz

In busy logistics hubs and factory floors, the Advantech DLT-V7310P serves as a rugged control interface for warehouse management, machine monitoring, and vehicle-mounted data terminals. Its 10.4-inch projected capacitive touchscreen responds reliably even with gloved hands, while the fanless design and wide operating temperature range ensure continuous operation in demanding environments.

Key specifications

• 10.4" XGA (1024 x 768) projected capacitive touch display
• Intel Celeron N2930 quad-core processor, 1.83 GHz
• 4 GB DDR3L RAM and 64 GB mSATA SSD storage
• Integrated Wi-Fi 802.11a/b/g/n/ac and Bluetooth 4.0
• 1x Gigabit Ethernet, 1x USB 3.0, 2x USB 2.0, 1x RS-232, 1x RS-232/422/485
• 9-36V DC wide-range power input for vehicle or industrial use
• IP65-rated front panel for dust and water resistance
• Supports Windows 10 IoT Enterprise, WES7, and Linux

Why choose it

Built for reliability in harsh conditions, the DLT-V7310P combines a bright, responsive touchscreen with flexible mounting options (VESA 75mm, RAM mount) and a wide operating temperature range of -30°C to 50°C. Its fanless, solid-state construction minimizes maintenance and downtime, while the multiple connectivity options simplify integration into existing industrial networks.

Ideal use cases

• Forklift-mounted terminals for warehouse picking and inventory
• Human-machine interface (HMI) for production line control
• Mobile data collection in ports, yards, and cold storage
• Kiosk or self-service stations in industrial environments

Good to know

The device is powered by an Intel Celeron N2930 processor and includes 4 GB of RAM, expandable for more demanding applications. The front panel is IP65 rated, making it resistant to dust and water jets, while the wide DC input range allows direct connection to vehicle batteries or industrial power supplies. Audio line-out and mic-in ports are available for voice-enabled applications.
