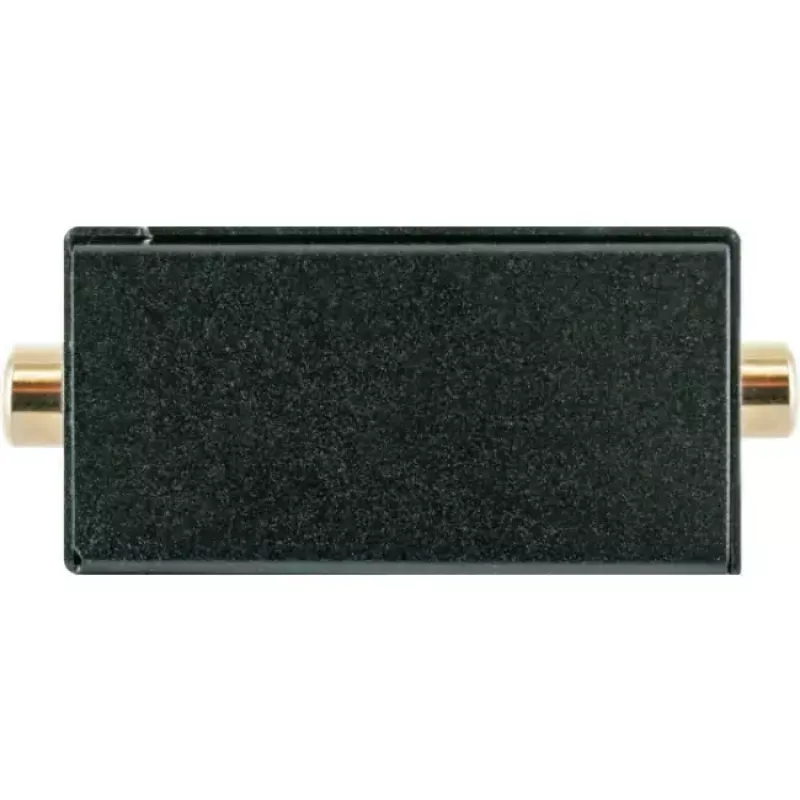

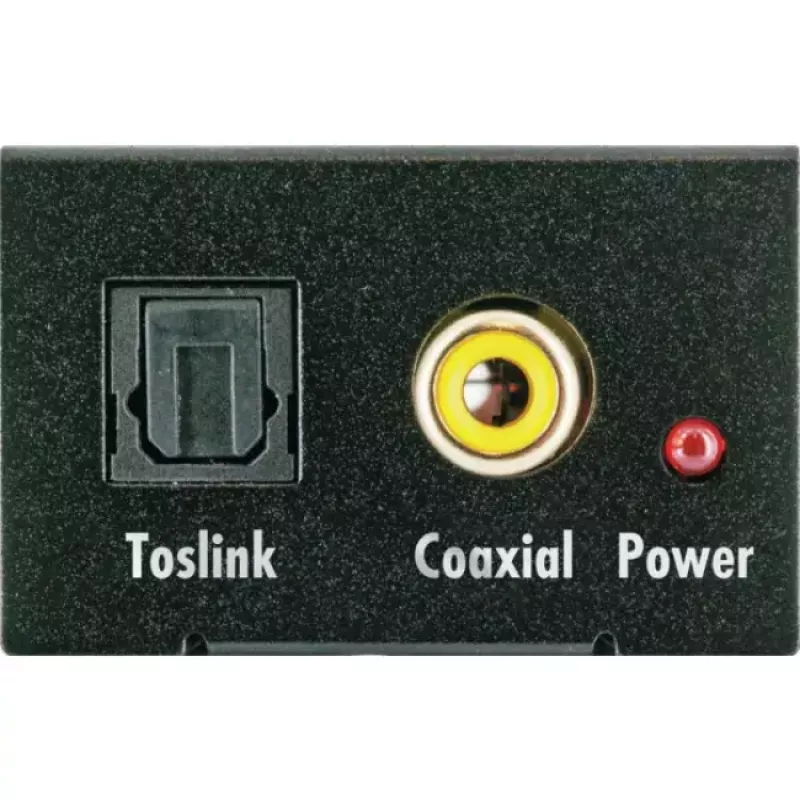

ADW200 513 zwart Schwaiger

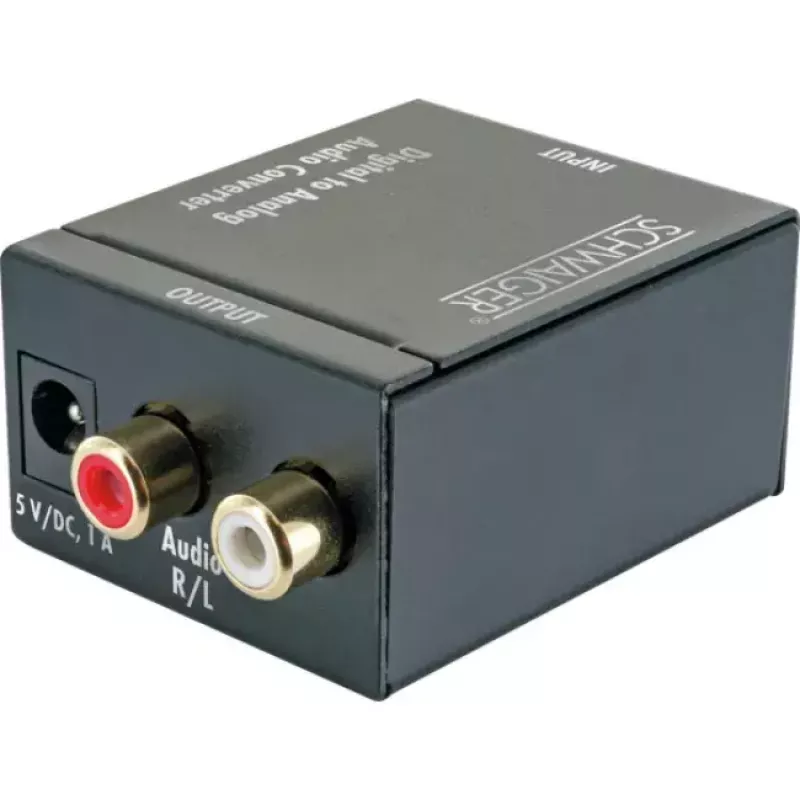

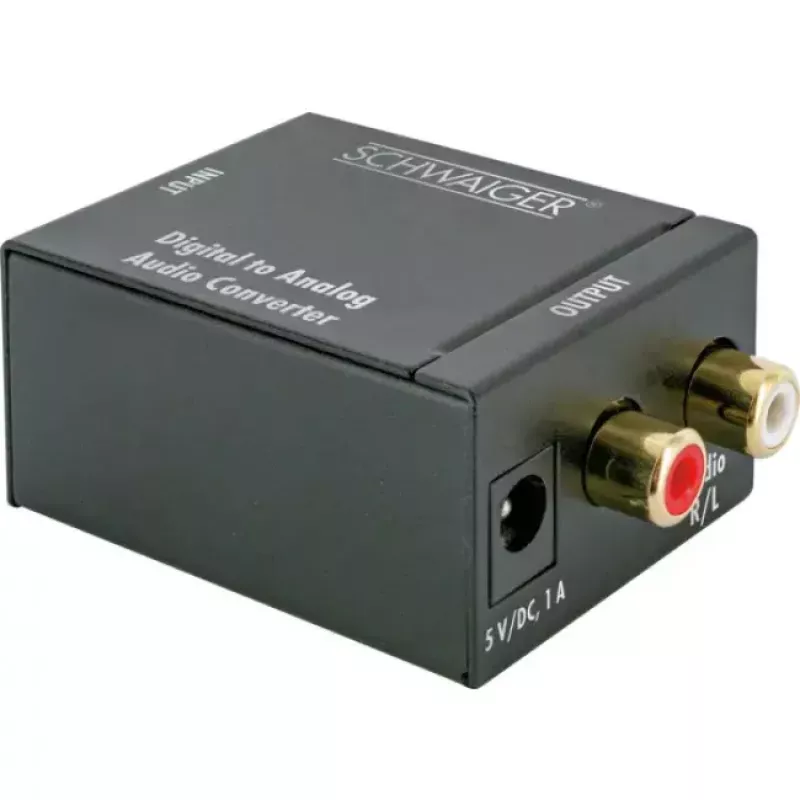

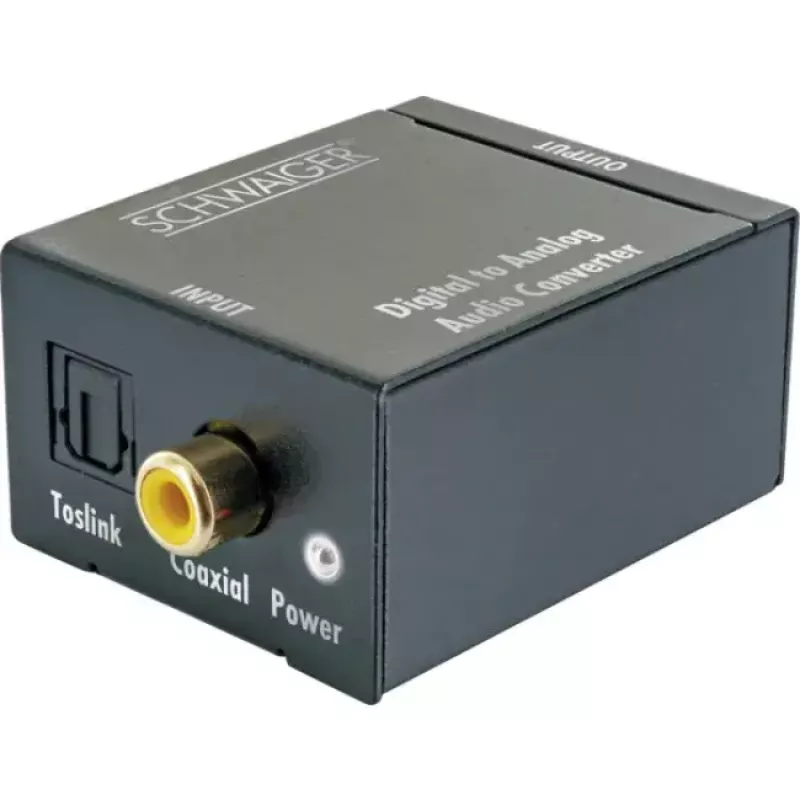

The SCHWAIGER ADW200 513 Black is a compact electrical device engineered for efficient power delivery in small installations. With an operating voltage of 5V and a nominal current draw of 1000mA, the unit combines a small footprint—50mm (W) x 40mm (D) x 30mm (H)—with consistent performance suitable for a variety of systems where low-voltage, reliable power is required. The black finish and compact dimensions allow discreet integration into consumer electronics, control modules, or low-power data devices.

Advantages

The device offers straightforward electrical characteristics—stable 5V operation and a defined 1000mA power consumption—resulting in predictable behaviour in compatible circuits. Its compact size reduces space requirements and simplifies installation in confined enclosures. Built with focus on reliability, the unit is suitable for continuous use in applications that demand steady low-voltage power.

Suitable for

• Powering small consumer electronics and peripherals
• Integration in control panels and compact enclosures
• Supplying low-power data or communication modules
• Replacement or upgrade in systems requiring 5V/1A input

Key specifications

• Operating voltage: 5 V
• Power consumption / current: 1000 mA
• Dimensions (W × D × H): 50 × 40 × 30 mm
• Colour: Black
• Design focus: compact form factor for space-limited installations

How to use

Install the unit in a dry, ventilated location inside the equipment enclosure, ensuring adequate clearance around the device for heat dissipation. Connect the 5V supply and the load according to the system wiring diagram, observing correct polarity and secure contact at terminals or connectors. Verify that the connected load does not exceed the specified 1000 mA rating to avoid overload. After wiring, power up the system and check for normal operation and absence of excessive heating or unusual noise.

Recommendations

For stable long-term performance, ensure the ambient temperature remains within the equipment’s normal operating range and prevent exposure to moisture or dust. Use appropriate cable gauges for the 1A current, fuse protection where applicable, and consider periodic visual checks of connections to maintain reliable operation.
