Aerocool GRAPHITEV1 computerbehuizing met mesh-frontpaneel

Featuring a mesh front panel design, this high-performance mid tower case allows for increased air circulation and viewing of your front LED fans. Full tempered glass side panel with a convenient hinge mechanism and handle allows for easy opening and closing while showcasing the inside of your rig. Comes with three additional vertical expansion slots, allowing for vertical graphics card installation.

WIDE AND STURDY CHASSIS DESIGN
Featuring a chassis design focused on delivering increased interior space, you now have more freedom and possibilities to customize your PC how you want.

With more room for your graphics card, coolers and fans, and even your motherboard, the Graphite will allow you to fully maximize the performance of your PC build.

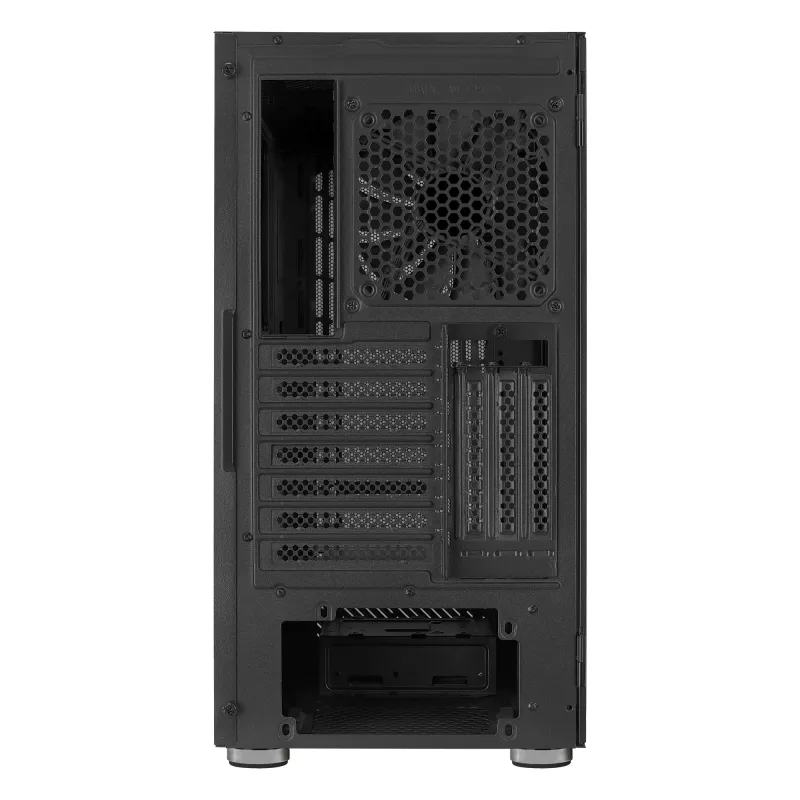

EXPANSION SLOTS FOR VERTICAL GRAPHICS CARD INSTALLATION
Built with three additional vertical expansion slots, allowing you to install your graphics card at a vertical position.

Supports Nvidia® Geforce RTX 30 series graphics cards including Founder’s Edition.

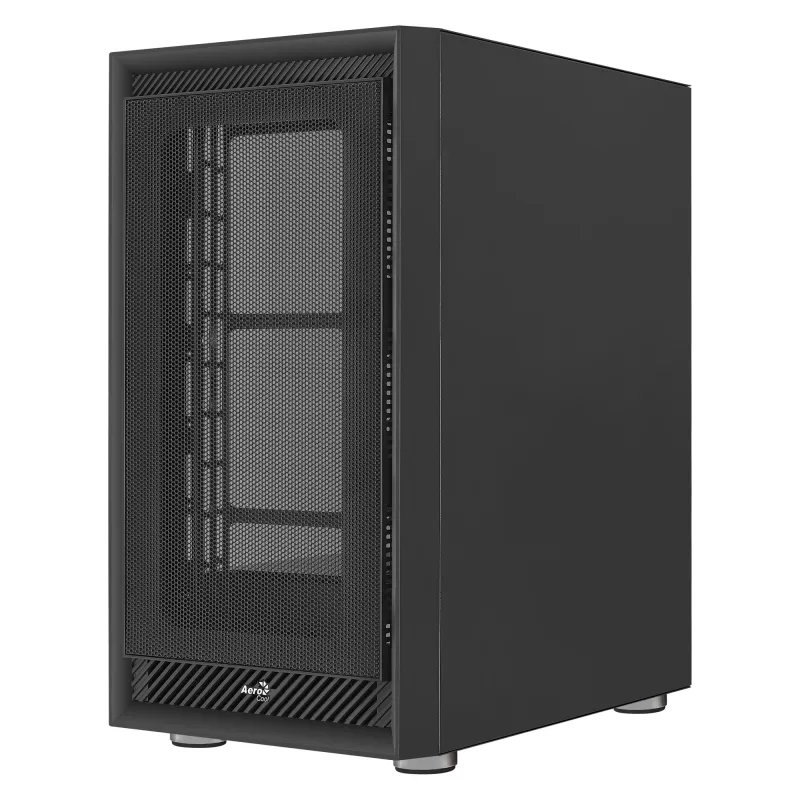

MESH FRONT PANEL DESIGN
Featuring a mesh front panel design, this case allows for clear viewing of your front LED fans while improving air flow and ventilation.

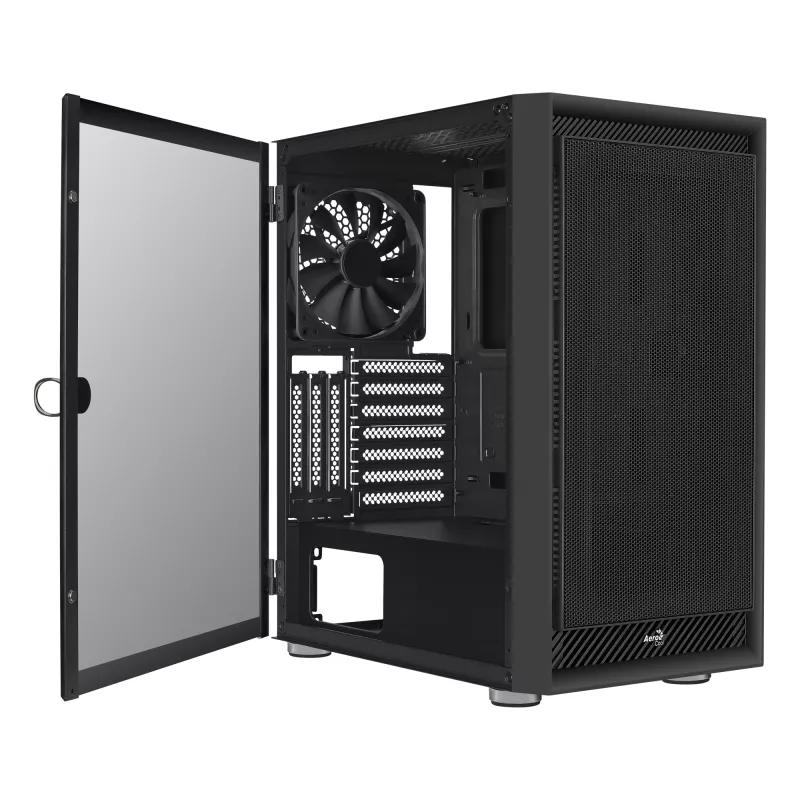

FULL TEMPERED GLASS SIDE PANEL WITH HINGE DESIGN
Full tempered glass side panel with a convenient hinge mechanism and handle allows for easy opening and closing while showcasing the inside of your rig.

EFFICIENT CABLE MANAGEMENT
Comes equipped with two cable passthrough tubes on the motherboard tray to keep your cables neat, tidy, and secure.

AIR COOLING
Supports air cooling in the front, top, and rear of the case to enhance cooling performance.

- Front: 120mm x 3 or 140mm x 2 (Max.)
- Top: 120mm x 2 or 140mm x 2 (Max.)
- Rear: 120mm x 1 or 140mm x 1 (Max.)

LIQUID COOLING
Supports liquid cooling in the front, top, and rear of the case for maximum efficiency cooling.

- Front: 120/240/280/360mm Radiator (Optional)
- (radiator length - Top: 120/240mm Radiator (Optional)
- (radiator length - Rear: 120mm Radiator (Optional)
- (GPU width
DUAL CHAMBER DESIGN
Built with a dual chamber design to direct heat away from the main chamber for more effective all-around cooling.

BUILT FOR HIGH PERFORMANCE
- Supports ATX, Micro-ATX, and Mini-ITX motherboards
- Supports CPU cooler up to 180mm
- Supports graphics cards up to 348mm
- (without front radiator)

CONVENIENT ACCESS TO YOUR MEDIA

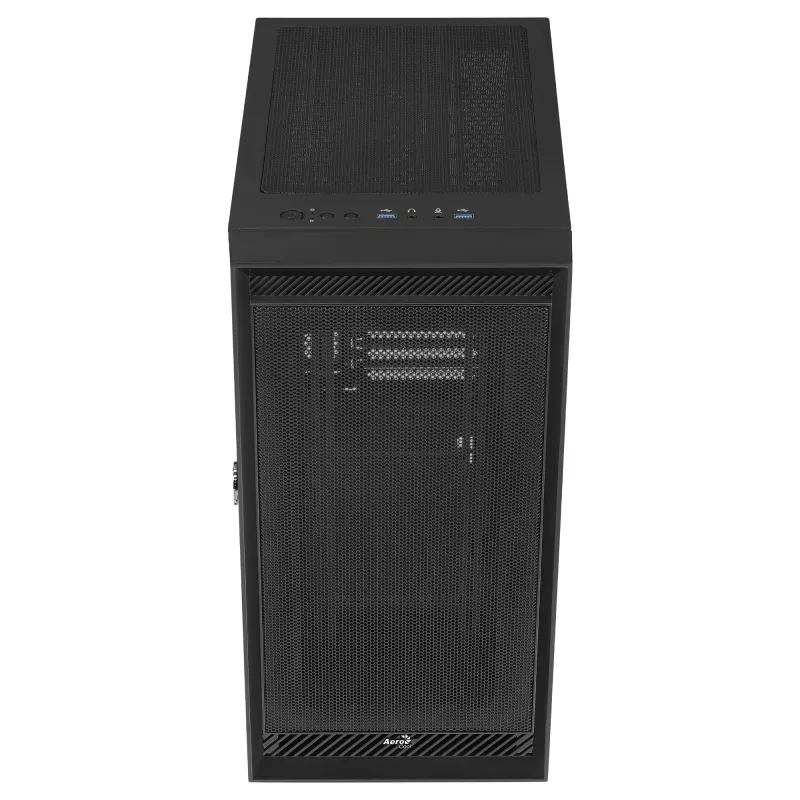

Quick and easy access to 2 x USB 3.0, HD audio and mic ports, and power button.

STORAGE CAPABILITY
Supports up to 2 x 3.5” HDDs (1 x 3.5” and 1 x 3.5”/2.5″), and 4 x 2.5” SSDs (3 x 2.5” and 1 x 2.5”/3.5”).

EASY MAINTENANCE
Removable dust filters on the top and bottom of the case for fast and convenient cleaning.

How to use

Open the hinged tempered glass side panel using the integrated handle to install the motherboard, power supply and components. Route cables through the two cable passthrough tubes on the motherboard tray for cleaner cable management. Install cooling fans or radiators according to supported mounting locations and size limits; check radiator length and thickness requirements when fitting front or top radiators. Use the additional vertical expansion slots if you want to mount a graphics card vertically, and ensure GPU width meets the vertical installation limit.

Recommendations

For best cooling performance, combine front intake fans with top and rear exhaust fans and keep dust filters clean. Verify radiator and component dimensions against the specified limits (radiator length, thickness and memory clearance) before fitting large coolers or a vertical GPU.
