Afkort- en verstekzaag Einhell TC-SM 2534/1 Dual

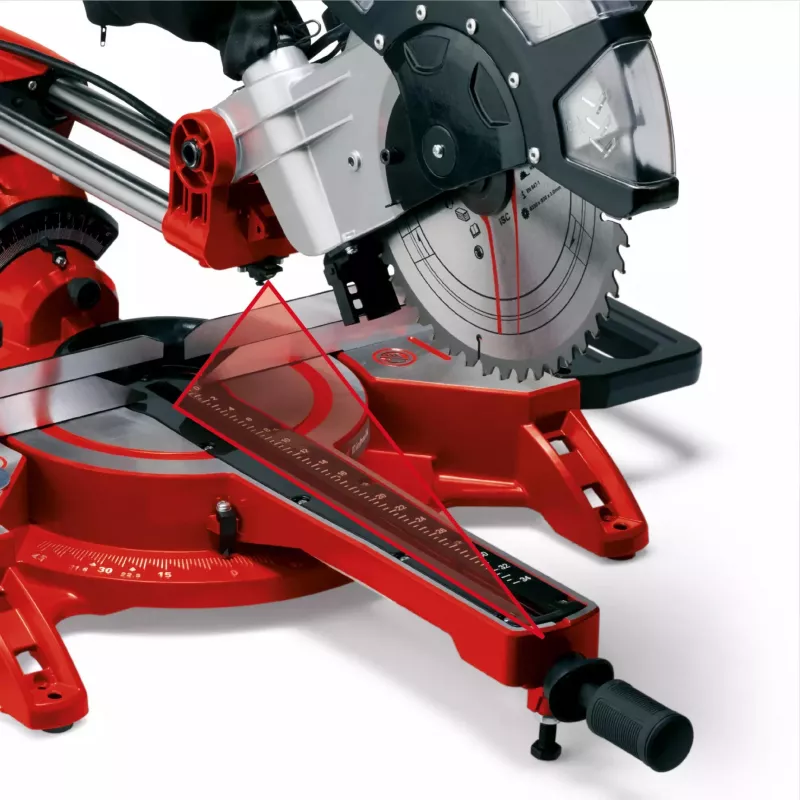

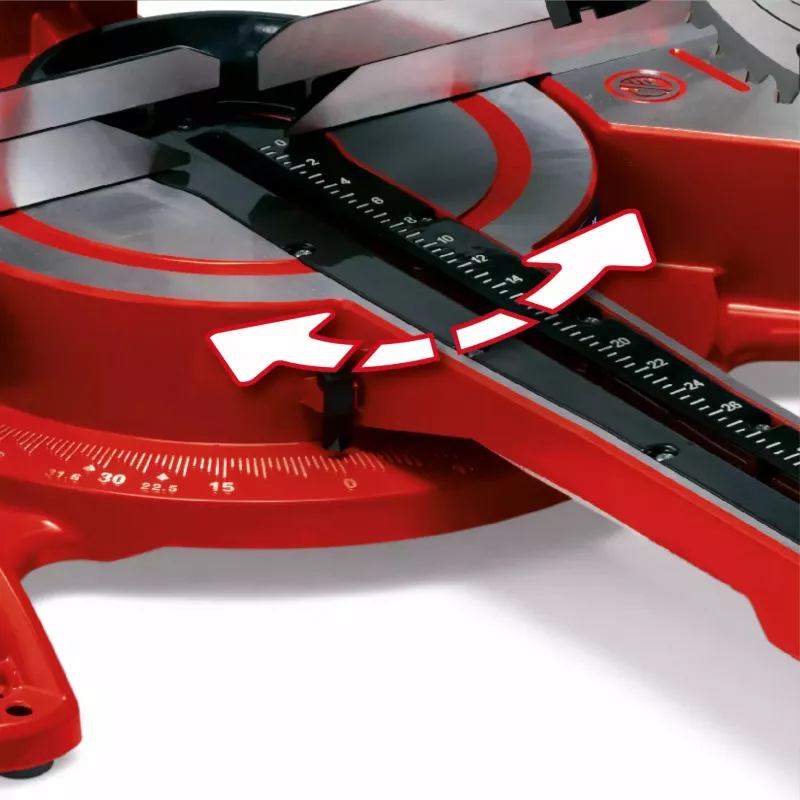

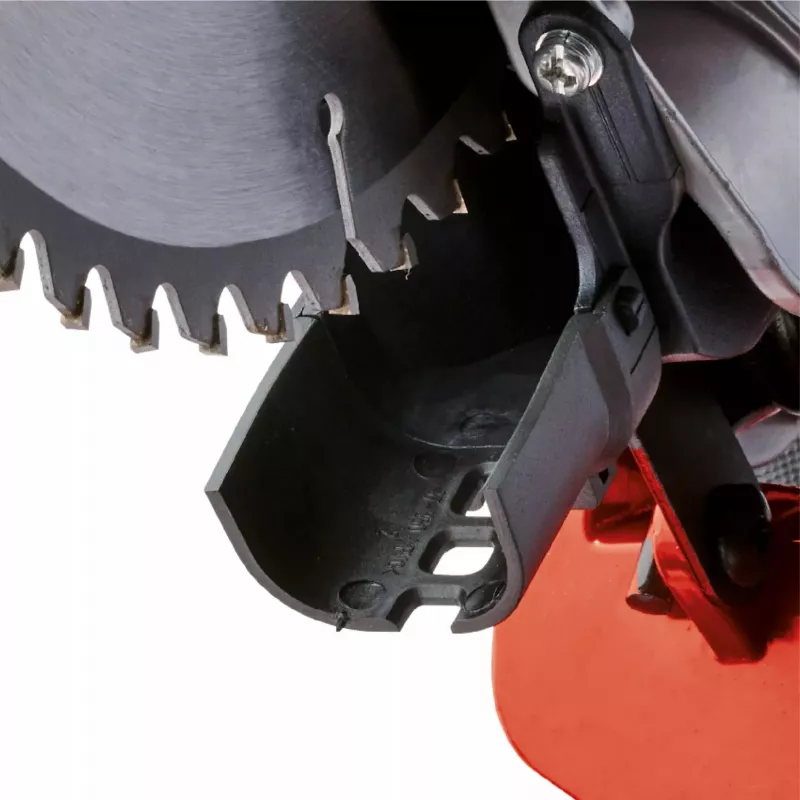

The Einhell TC-SM 2534/1 Dual is a miter saw designed for crosscutting, dragging and mitre cuts in wood, laminated panels and plastic. It features a tilting saw head for left and right mitres, an integrated mains-powered laser for marking the cutting line, a high-quality turntable with precise angle adjustment, and an integrated drag function for cutting wide workpieces. Additional features include workpiece supports on both sides, a clamping device, an adjustable workpiece stop with rails, a scale in the table insert for reading workpiece width, a carbide-tipped precision saw blade, a sawdust bag and a dust funnel behind the blade. The saw is powered from AC mains (230–240 V) and has a powerful 2350 W motor (max. no-load speed 4000 rpm). The blade diameter is 250 mm with a 30 mm bore, and the unit weighs 14.3 kg.

Advantages

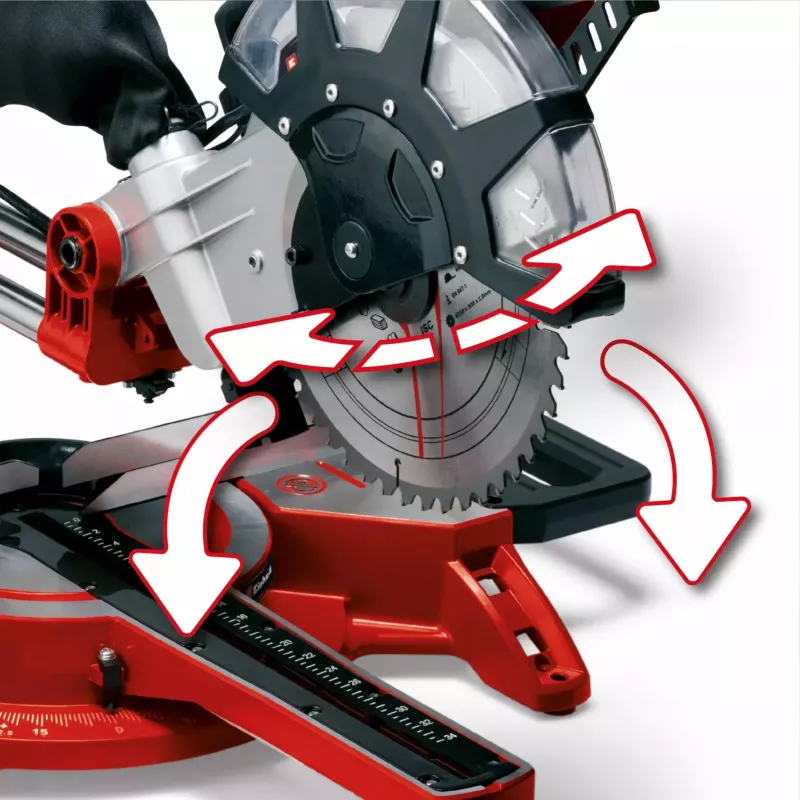

The saw offers continuous left/right tilt of the saw head for flexible mitre setting, precise single-handed angle latching on the turntable, and an integrated drag function for oversized workpieces. The mains-powered laser improves positioning accuracy, while the carbide-tipped blade provides clean, durable cutting performance. Built-in supports, a clamping device and an adjustable stop enhance safety and repeatability. Dust extraction elements (sawdust bag and dust funnel) support a cleaner work environment.

Suitable for

• Crosscuts and mitre cuts in solid wood
• Cutting laminated panels and furniture boards
• Trimming and shaping plastic components
• Workshop tasks requiring precise angled cuts and repeatable setups

Key specifications

• Power input: 2350 W
• Voltage: 230–240 V, AC
• No-load speed: 4000 rpm
• Blade diameter: 250 mm
• Bore diameter: 30 mm
• Mitre range: -45° to +45°
• Weight: 14.3 kg

How to use

Secure the saw to a stable workbench if required, fit the correct blade and connect the unit to the specified mains voltage. Place the workpiece on the table, use the workpiece supports and clamp to secure it, and set the required angle on the turntable using the angle adjustment and latch. For wide boards, use the drag function to move the saw head through the cut. Align the cutting line with the integrated laser, start the saw and make the cut while keeping hands clear of the blade and using the clamp for stability. Empty the sawdust bag regularly and connect a suitable external dust extractor to the dust funnel if needed.

Recommendations

Use appropriate personal protective equipment (safety goggles, hearing protection and dust mask). Ensure the workpiece is properly supported and clamped before cutting, and allow the blade to reach full speed before contacting the material. Maintain the carbide-tipped blade sharpness and keep the dust extraction system clear for best cutting results and safe operation.
