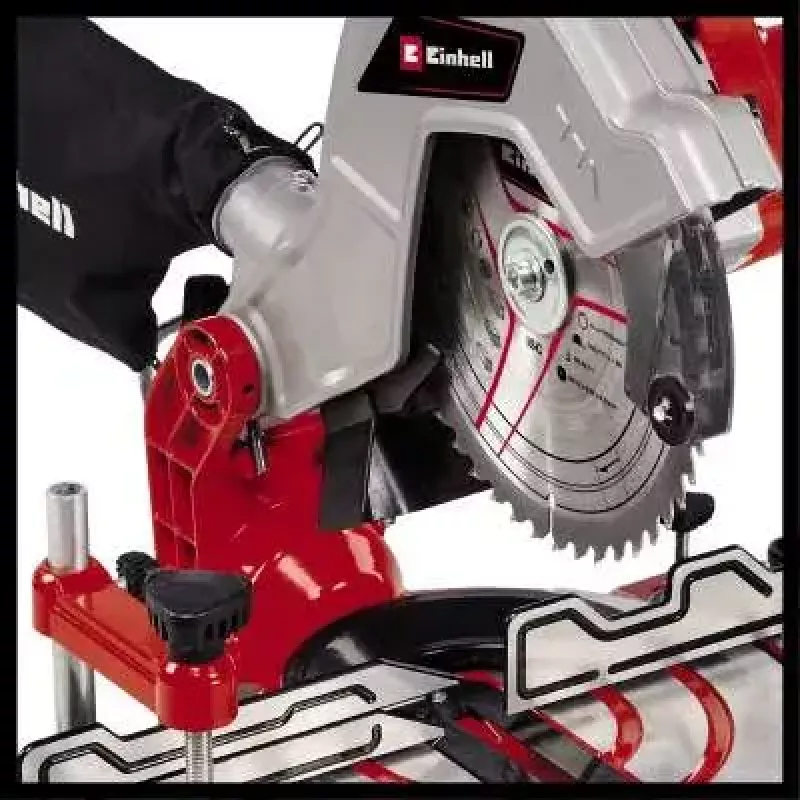

Zaag Einhell TC-MS 216

The Einhell TC-MS 216 is a compact crosscut and miter saw designed for DIY and workshop use. It is driven by a 1,400 W motor and reaches a maximum no-load speed of 5,000 RPM. The saw accepts a carbide-tipped blade with an external diameter of 216 mm and a 30 mm bore, and provides a maximum cutting width of up to 120 mm depending on the tilt angle. The work table is made of light, durable die-cast aluminium and the tool has compact dimensions of 364 mm (W) x 535 mm (D) x 330 mm (H).

Advantages

The saw offers stable, precise cutting thanks to a die-cast aluminium table, a turntable with locking positions for common angles, and easy-to-read angle scales for both miter and bevel cuts. A carbide-tipped saw blade ensures durable, clean cuts while a spindle lock simplifies blade changes. Supports on both sides and an integrated clamping device help secure long workpieces. A dust funnel behind the blade improves sawdust removal.

Suitable for

• Crosscutting timber and board materials up to 120 mm width
• Miter and bevel cuts for trim work and framing
• DIY projects, home workshop and garage tasks

Key specifications

• Brand: EINHELL
• Model: TC-MS 216 (MPN 4300370, EAN 4006825635683)
• Motor power: 1,400 W
• No-load speed: 5,000 RPM
• Blade diameter: 216 mm (external) / 30 mm (bore)
• Maximum cutting width: up to 120 mm (depending on tilt)
• Power supply: AC 220–240 V, 50 Hz
• Dimensions (W×D×H): 364 × 535 × 330 mm

How to use

Secure the saw to a stable workbench or use the integrated supports for long workpieces. Fit the correct carbide blade and use the spindle lock to safely tighten the blade nut. Set the desired angle with the turntable and angle scales and lock it in the indicated position. Clamp the workpiece with the provided clamping device before starting the saw. For bevel cuts tilt the saw head up to 45° to the left and check the maximum cutting width for the selected angle. Follow the manufacturer’s safety instructions for personal protective equipment and safe operation.

Recommendations

Use appropriate hearing, eye and dust protection; keep the dust funnel connected to extraction where possible. Check blade condition regularly and replace the carbide blade when it becomes dull. Do not exceed the specified supply voltage and observe the maximum material thickness for the chosen angle.
