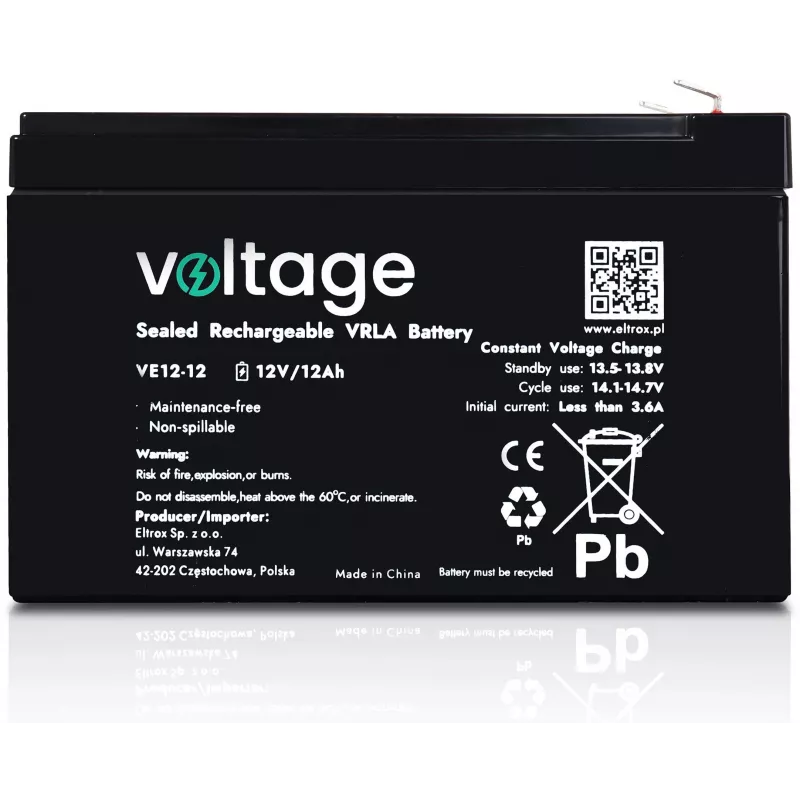

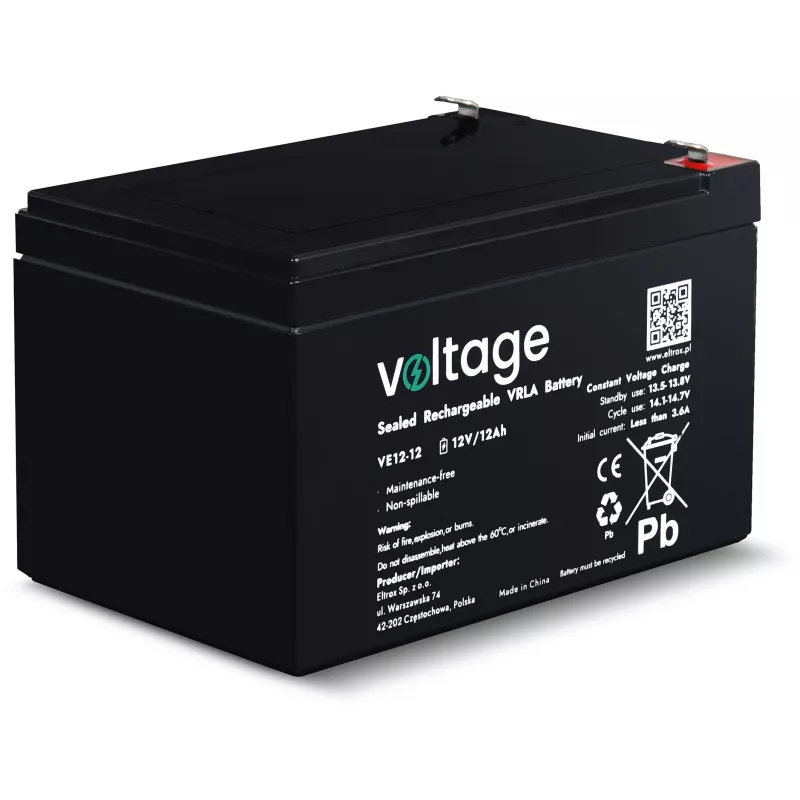

AGM-accu Voltage 12V 12Ah VE12-12 (levensduur 6-9 jaar)

The Voltage VE12-12 is a high-performance AGM (Absorbent Glass Mat) battery designed for reliable backup power and cyclic applications. With a nominal voltage of 12V and a capacity of 12Ah, it delivers consistent power for UPS systems, security alarms, emergency lighting, solar installations, and telecommunications equipment. Its maintenance-free design and low self-discharge rate ensure long service life and minimal upkeep.

Advantages

This AGM battery offers a design lifespan of 6-9 years, thanks to its robust construction and advanced plate technology. It is completely maintenance-free, eliminating the need for water refilling. The sealed design prevents acid leakage, allowing safe installation in any orientation. With a low self-discharge rate of less than 3% per month, it retains charge during storage. The battery is certified CE and RoHS, meeting international safety and environmental standards.

Suitable for

• UPS (Uninterruptible Power Supplies)
• Security and alarm systems
• Emergency lighting
• Solar power storage
• Telecommunications equipment

Key specifications

• Battery Type: AGM (Absorbent Glass Mat)
• Nominal Voltage: 12V
• Nominal Capacity: 12Ah
• Design Lifespan: 6-9 years (Eurobat Classification)

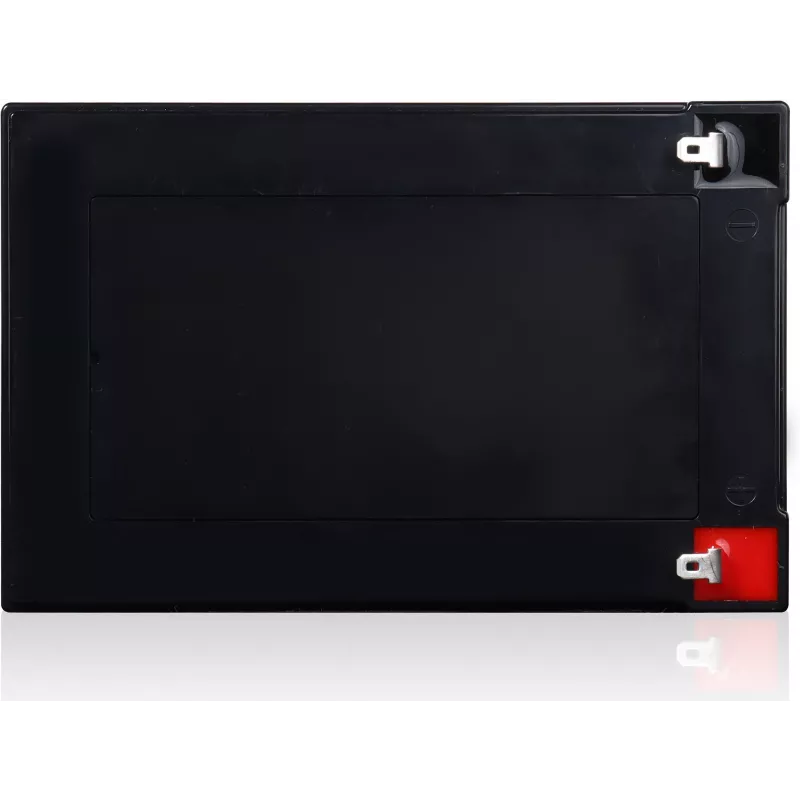

• Terminal Type: F2 (T2) / Faston 250
• Internal Resistance: Approx. 19 mΩ
• Max Discharge Current: 120A (5 seconds)
• Max Charge Current: 3.6A
• Float Charge Voltage: 13.5V - 13.8V (at 25°C)
• Cycle Use Voltage: 14.4V - 15.0V (at 25°C)
• Operating Temperature Range (Discharge): -20°C to 60°C
• Operating Temperature Range (Charge): -10°C to 50°C
• Operating Temperature Range (Storage): -20°C to 50°C
• Self-Discharge Rate: Less than 3% per month at 25°C
• Container Material: ABS (UL94-HB, UL94-V0 optional)
• Maintenance: Maintenance-free
• Certification: CE, RoHS

Recommendations

For optimal performance and longevity, use this battery in a well-ventilated area and avoid deep discharges below 10.5V. Charge with a compatible AGM battery charger following the recommended voltage settings. Store in a cool, dry place when not in use.
