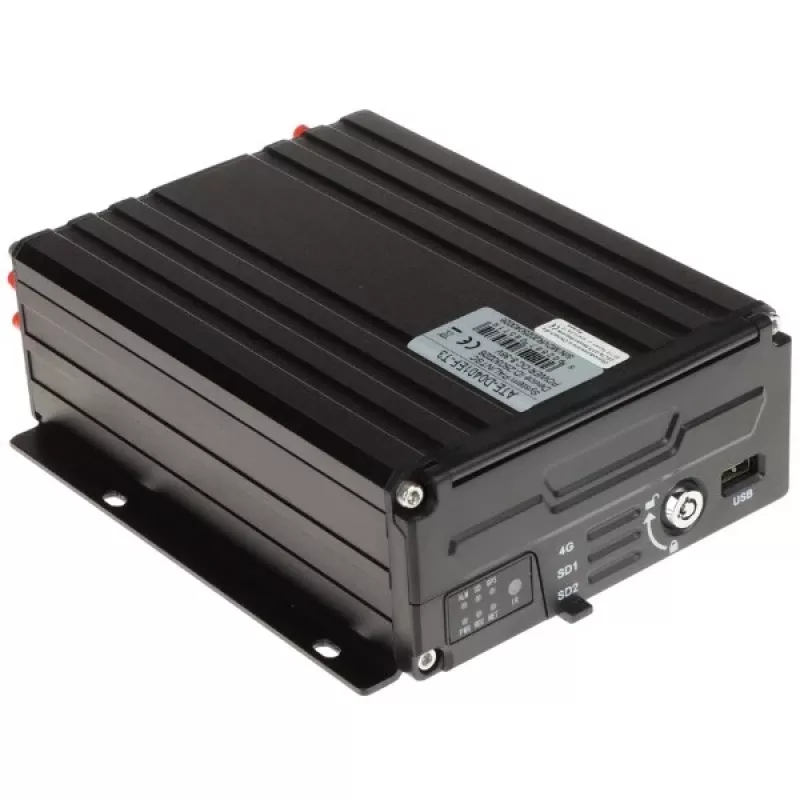

AHD Mobiele DVR Recorder ATE-D0401EF-T3 4 Kanalen

The ATE-D0401EF-T3 is a professional 4-channel AHD mobile DVR recorder designed for reliable video surveillance in vehicles. It supports hybrid video input (AHD/TVI/CVI/CVBS) and records up to 1080P resolution per channel at 25/30fps. Built-in GPS and G-sensor provide accurate location and impact detection, making it ideal for fleet management and public transport security.

Advantages

Compact and rugged design with wide input voltage range (8-36V DC) ensures stable operation in various vehicles. Supports up to 2TB 2.5" HDD/SSD and 256GB SD card for extended recording. Four alarm inputs and one alarm output allow integration with external sensors.

Suitable for

• Fleet management and logistics
• Public transport (buses, trams, trains)
• Emergency vehicles
• Construction and heavy machinery

Key specifications

• Video Input: 4 channels AHD/TVI/CVI/CVBS
• Recording Resolution: Up to 1080P per channel
• Compression: H.264
• Storage: 1x 2.5" HDD/SSD (up to 2TB) + 1x SD card (up to 256GB)
• Video Output: 1x CVBS, 1x VGA
• Audio: 4 inputs, 1 output (RCA)
• Power: DC 8-36V
• GPS and G-sensor built-in
• Alarm: 4 inputs, 1 output
• Network: 1x RJ45 10/100Mbps
• USB: 2x USB 2.0
• Operating Temperature: -20°C to +70°C
• Optional 4G LTE and Wi-Fi

Recommendations

For optimal performance, use with a compatible 2.5" hard drive or SSD. Ensure proper power connection within 8-36V DC range. For remote monitoring, consider adding 4G LTE module.
