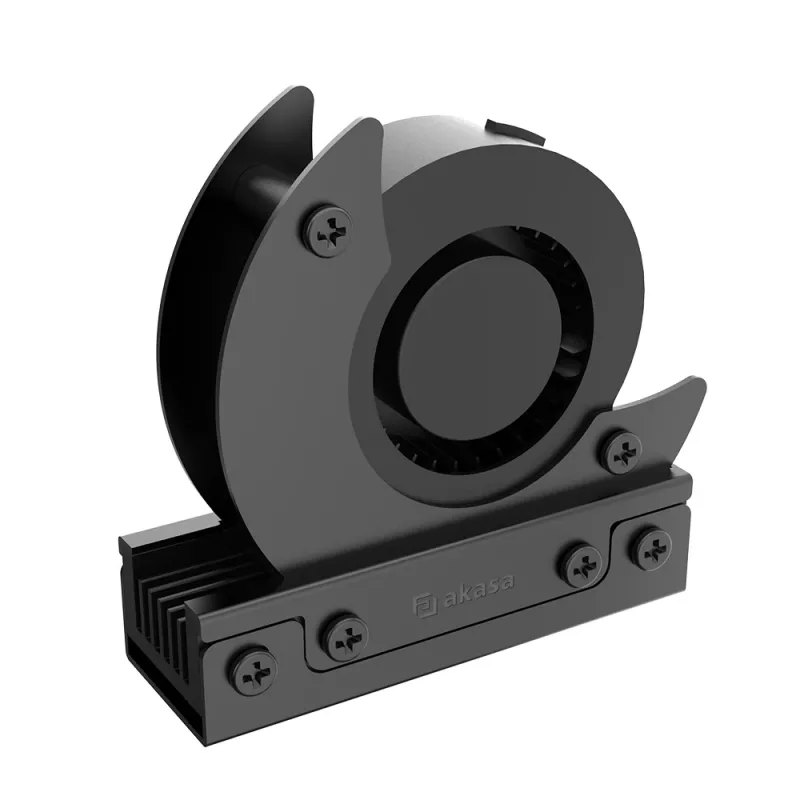

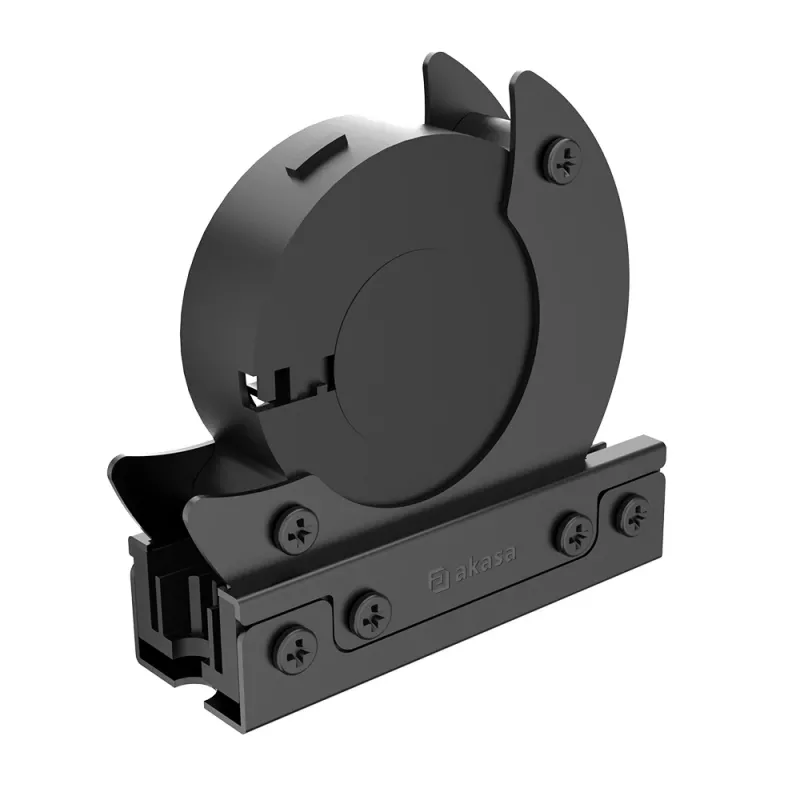

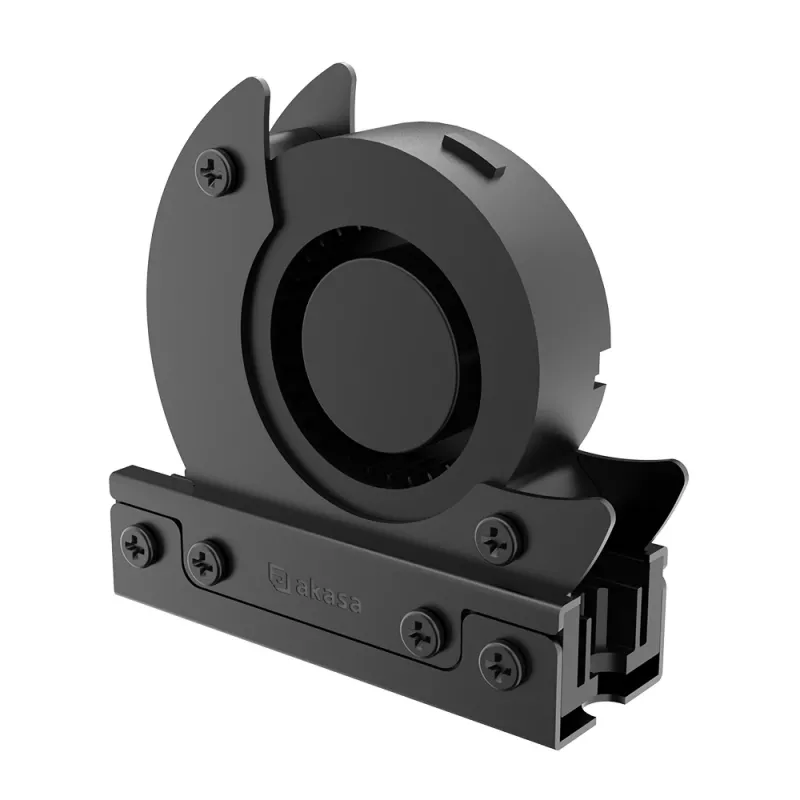

Akasa GeckoCooler active cooling voor M.2 NVMe PCIe & SATA drives

The Akasa GeckoCooler is an active cooling solution designed specifically for M.2 NVMe PCIe and SATA SSDs. It effectively dissipates heat from high-performance drives, ensuring stable operation and prolonged lifespan. The compact low-profile design makes it suitable for various systems, including small form factor builds.

Advantages

Active cooling with a dedicated 20mm fan reduces temperatures significantly, preventing thermal throttling. The clip-on installation is tool-free and secure, requiring no screws. Includes two thermal pads for optimal heat transfer.

Suitable for

• M.2 NVMe PCIe SSDs (2280 form factor)
• M.2 SATA SSDs (2280 form factor)
• High-performance storage in desktops, HTPCs, and gaming rigs

Key specifications

• Cooling Type: Active (Fan)
• Drive Compatibility: M.2 NVMe PCIe SSD, M.2 SATA SSD
• M.2 Form Factor Support: 2280
• Heatsink Material: Aluminium
• Fan Dimensions: 20 x 20 x 6 mm
• Fan Speed: 8000 RPM (Max)
• Fan Airflow: 0.88 CFM
• Fan Noise Level: 21.5 dBA
• Fan Bearing Type: Sleeve Bearing
• Fan Connector: 4-pin PWM
• Rated Voltage: 12V DC
• Current Rating: 0.04A
• Power Consumption: 0.48W
• Thermal Pads Included: Yes (2x thermal pads)
• Installation Method: Clip-on / Spring clips
• Low Profile Design: Yes

Recommendations

Ideal for users seeking to maximize M.2 SSD performance by preventing overheating. Compatible with most motherboards and M.2 slots. Ensure your system has adequate clearance for the cooler's height.
