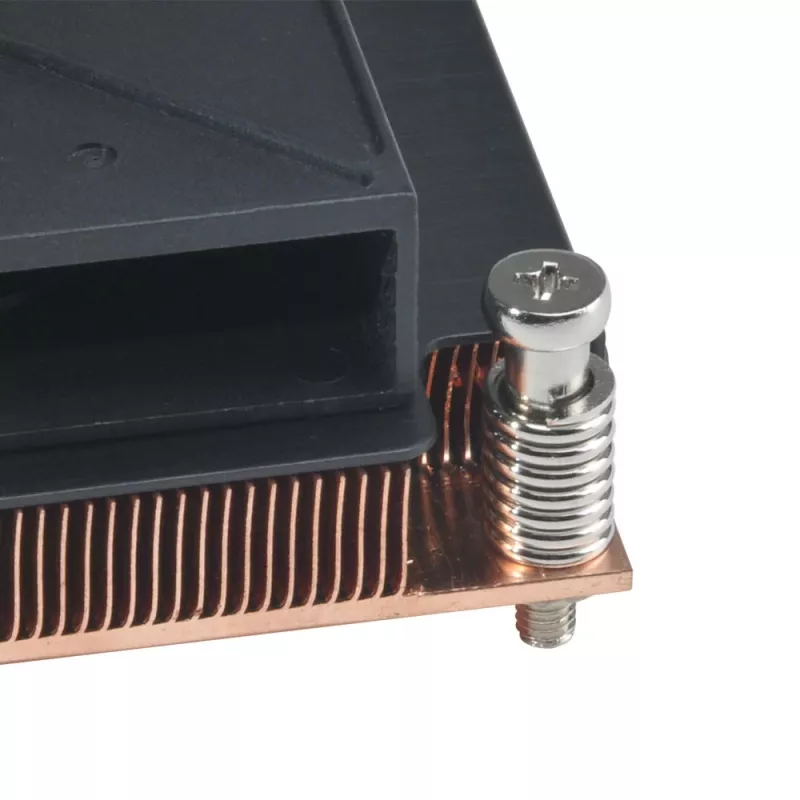

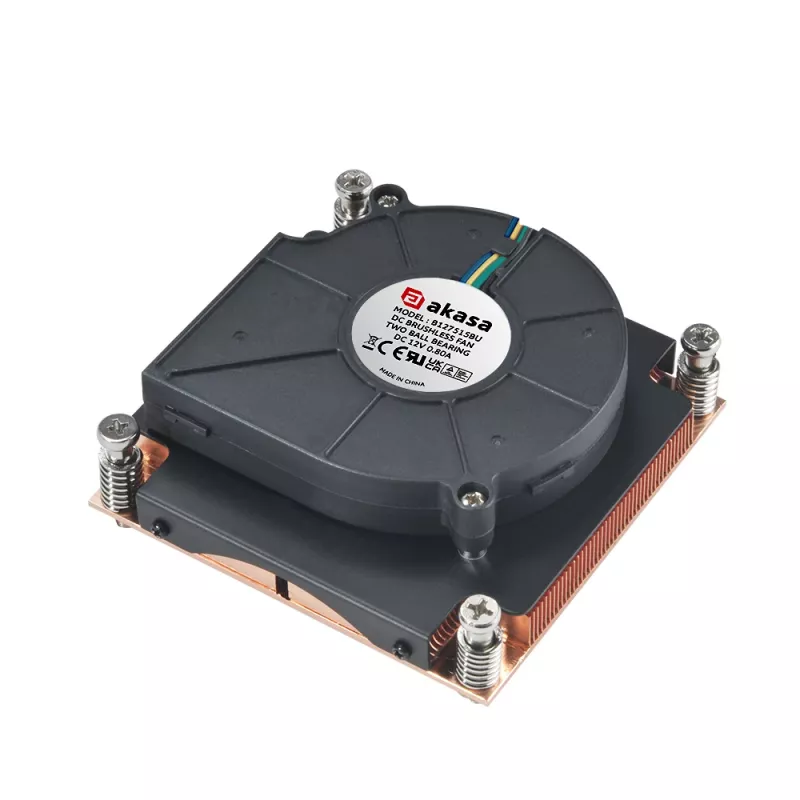

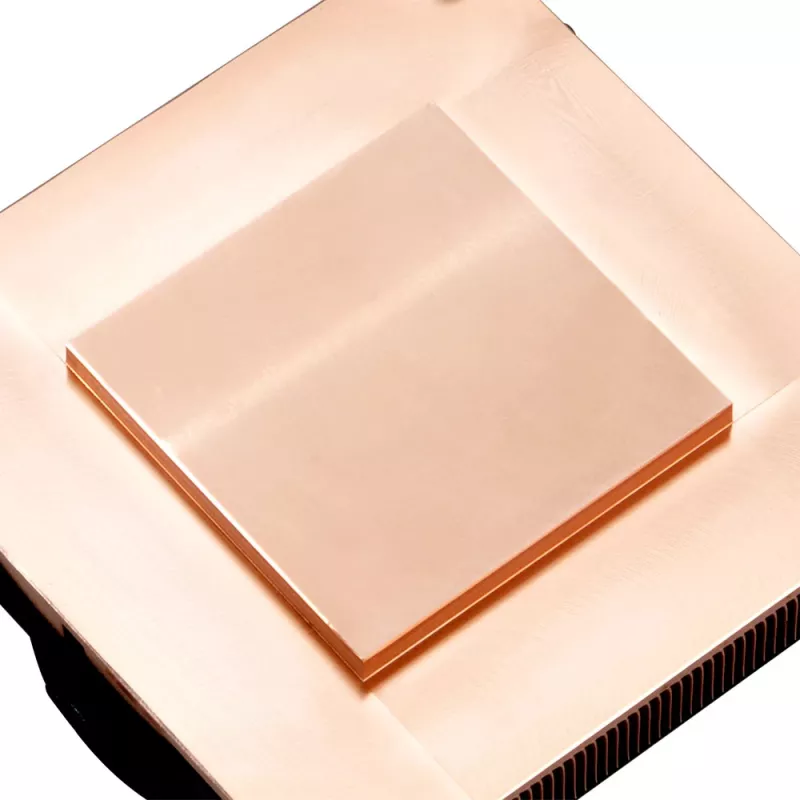

Akasa Intel 1U volledig koperen actieve koeler met PWM-ventilator voor LGA 2011 (Xeon MP)

The Akasa AK-CC6503BP01 is a high-performance 1U active CPU cooler designed for Intel LGA 2011 (Socket R) server platforms. Featuring an all-copper heatsink and a PWM-controlled blower fan, this cooler delivers efficient thermal management for Intel Xeon E5-2600 series processors in space-constrained 1U chassis.

Advantages

All-copper construction ensures superior heat dissipation, while the PWM blower fan provides dynamic speed control for optimal cooling and reduced noise. The pre-applied thermal paste simplifies installation, and the 4-pin PWM connector allows precise fan speed regulation via the motherboard.

Suitable for

• 1U server and workstation builds
• Intel LGA 2011 (Socket R) motherboards
• Intel Xeon E5-2600 v1/v2/v3/v4 processors
• Applications requiring high reliability and low profile cooling

Key specifications

• Cooler Type: Active CPU Cooler
• Form Factor: 1U Server
• Heatsink Material: All Copper
• Fan Type: Blower Fan
• Fan Control: PWM (Pulse Width Modulation)
• Socket Compatibility: Intel LGA 2011 (Socket R)
• Supported Processors: Intel Xeon E5-2600 series (v1/v2/v3/v4)
• Fan Dimensions: 75 x 75 x 25 mm
• Fan Speed: 1200 - 4800 RPM
• Max Airflow: 30.0 CFM
• Max Static Pressure: 6.05 mm H2O
• Noise Level: 17.2 - 45.0 dB(A)
• Bearing Type: Two Ball Bearing
• Fan Connector: 4-pin PWM
• TDP Support: Up to 150W
• Thermal Paste: Pre-applied
• Application: Server / Workstation

Recommendations

For optimal performance, ensure your chassis supports 1U cooler height and that the motherboard has a 4-pin PWM header. This cooler is ideal for dense server environments where reliability and thermal efficiency are critical.
