Akyga AK-EV-09 oplader voor e-bikes / e-scooters met 48V-accu (13s), 54,6 V, 2 A, 110 W, kabel zonder stekker, 1 m

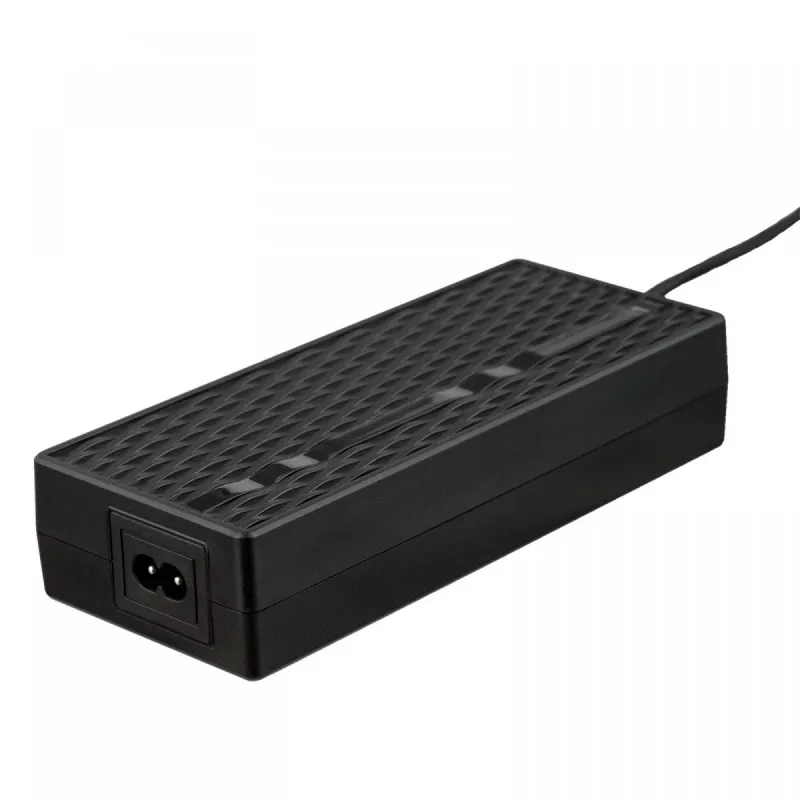

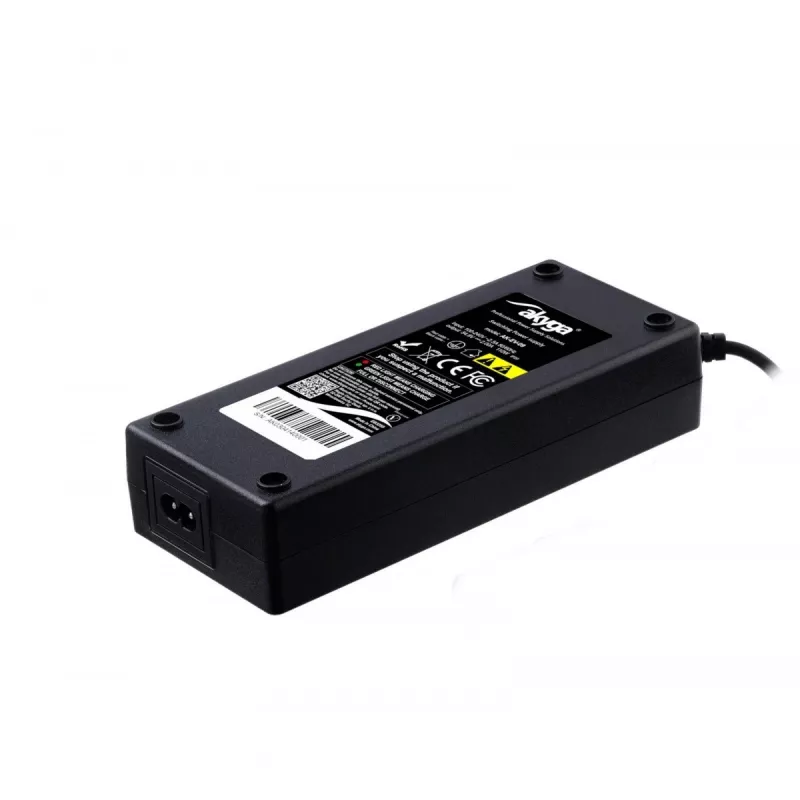

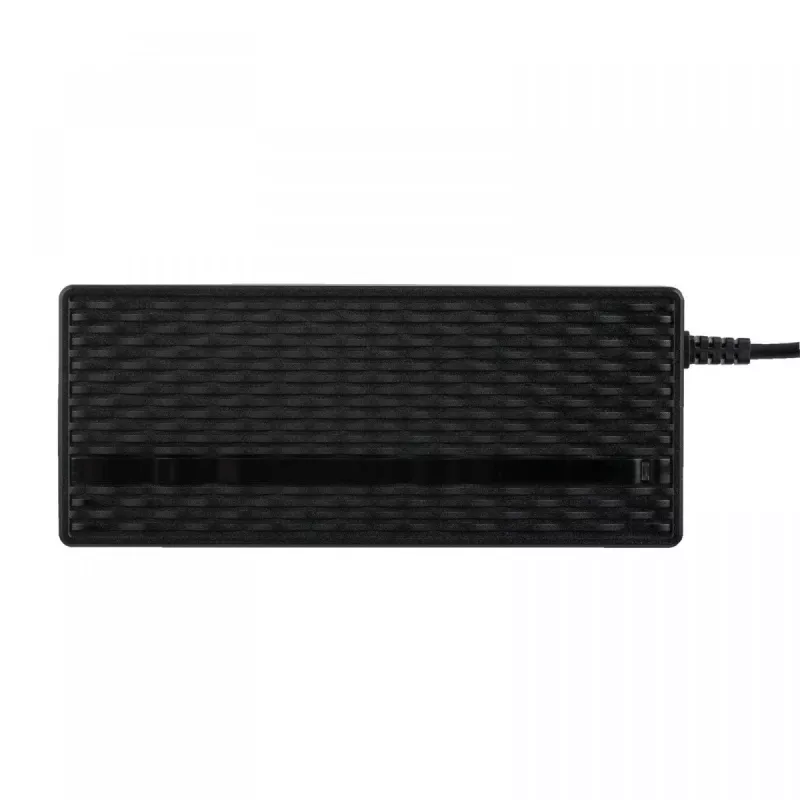

The Akyga AK-EV-09 is a power supply unit designed for charging electric vehicles equipped with a 48 V (13s) cell pack. It features an open-end output cable, allowing you to install any plug that matches your device, and a 1-meter cable for convenient charging of e-bikes or electric scooters. The charger is powered via an IEC C8 inlet and includes an LED light to indicate charging status.

Key features

• Dedicated for 48 V (13s) battery packs

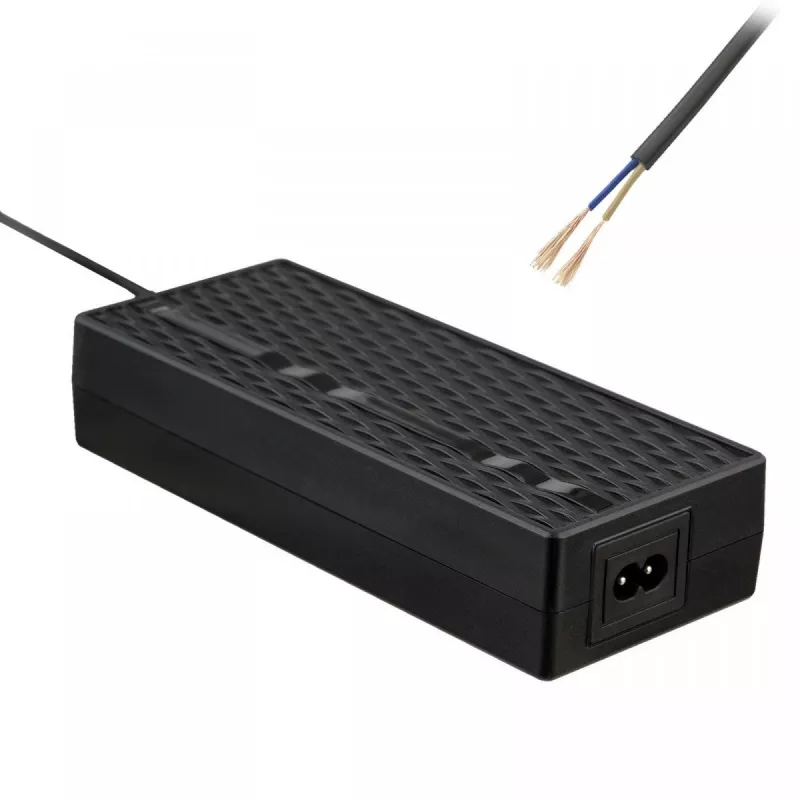

• Open-end output cable (no plug)
• 1 m cable length
• LED light indicates charging duration or completion
• Efficiency exceeds 80%
• Power inlet: IEC C8
• Protection features: Over voltage, Over current, Over power, Short circuit
• IP20 rated
• ABS housing, black colour

Specifications

• Product type: AC/DC adapter
• Input voltage: 100 - 240 V
• Input frequency: 55 +/- 5
• Power consumption: < 2.5 A
• Output voltage: 54.6 V
• Maximum output voltage: 54.6 V
• Output current: 2 A
• Maximum power: 110 W
• Power source type: DC
• Power plug: Open end (no plug)
• Charger type: Indoor
• Charger compatibility: Universal
• Compatibility: electric vehicles
• Housing material: ABS
• Product colour: Black
• International Protection (IP) code: IP20
• Operating temperature (T-T): 5 - 50
• Storage temperature (T-T): 0 - 70
• Operating relative humidity (H-H): 5 - 80
• Storage relative humidity (H-H): 0 - 80
• Width: 73 mm
• Depth: 172 mm
• Height: 37 mm
• Weight: 0.215 kg
• Certification: CE, RoHS, REACH
• Compliance certificates: RoHS
• Country of origin: Poland
• Quantity per pack: 1 pc(s)
