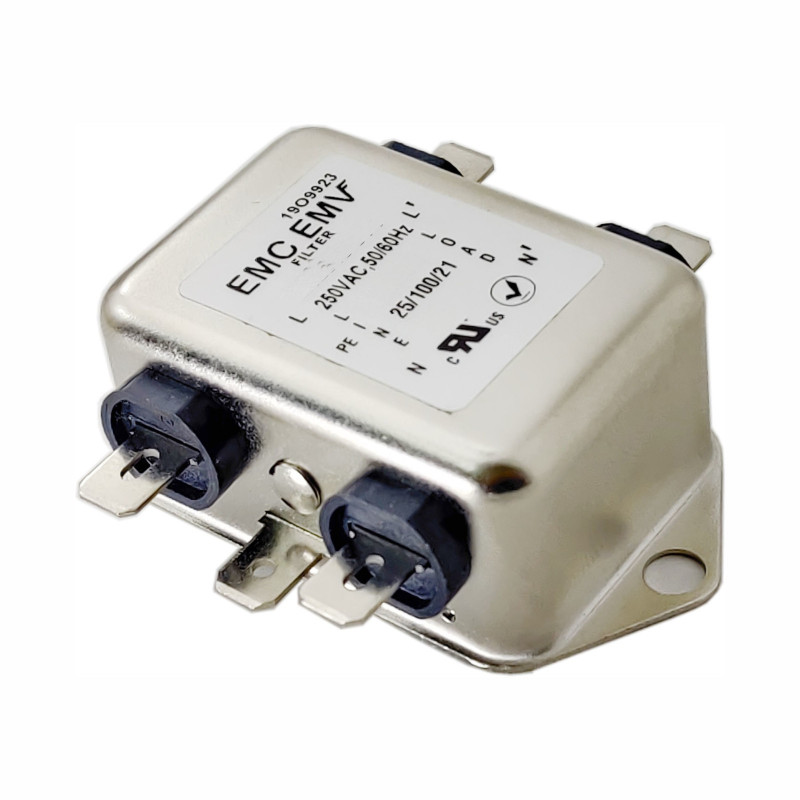

Akyga EN2030-3-F eenfasig EMC-netfilter 3 A, 120–250 V AC, 50/60 Hz, 6,3 mm aansluitingen

The Akyga EN2030-3-F is a single-phase EMI filter designed to protect electronic equipment operating at moderate loads. With a maximum working current of 3 A and low leakage current, it is suitable for systems requiring precise operation and stable power supply, such as office equipment, building automation, or laboratory equipment.

Key features

• Maximum working current: 3 A
• Leakage current: 0.30 mA @ 120 VAC 60 Hz, 0.52 mA @ 250 VAC 50 Hz
• 6.3 mm connectors for easy installation
• Metal housing for durability and effective shielding against external interference
• Number of poles: 2
• Operating temperature: -25°C to +100°C
• Product size (L x W x H): 71 x 68 x 22 mm
• CE, RoHS, and REACH compatibility

Specifications

• Brand: Akyga
• MPN: EN2030-3-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 3 A
• Leads: 6.3 mm connectors
• Leakage current: 0.30 mA @ 120 VAC 60 Hz, 0.52 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C to +100°C
• Product size (L x W x H): 71 x 68 x 22 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138606
