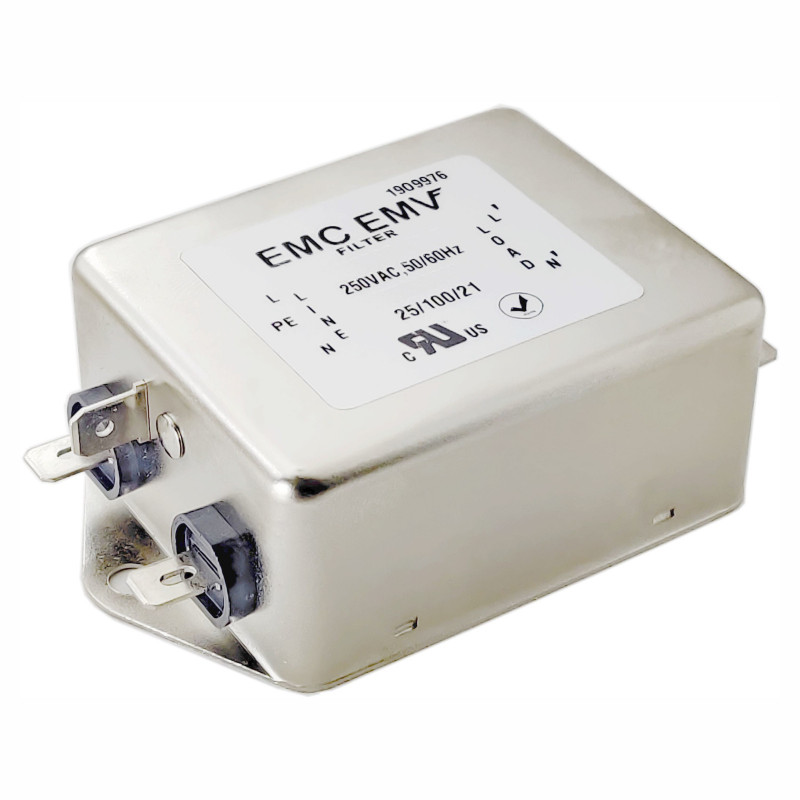

Akyga EN2070-1-F eenfasig EMC-netfilter 1 A, 120–250 V AC, 50/60 Hz, 6,3 mm aansluitingen

The Akyga EN2070-1-F is a single phase EMI filter designed to protect sensitive electronic systems from electromagnetic interference. With a maximum working current of 1 A, it is suitable for measurement equipment, control systems, and laboratory equipment where precision and power stability are important.

Key features

• Compact and effective EMI filtering
• Metal housing for interference shielding and resistance to external influences
• 6.3 mm connectors for easy installation
• Reliable protection for electronics requiring exceptional accuracy

Specifications

• Brand: Akyga
• MPN: EN2070-1-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 1 A
• Leads: 6.3 mm connectors
• Leakage current: 0.43 mA @120 VAC 60 Hz, 0.74 mA @250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature range: -25°C to +100°C
• Product size (L x W x H): 86 x 52 x 29 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138781
