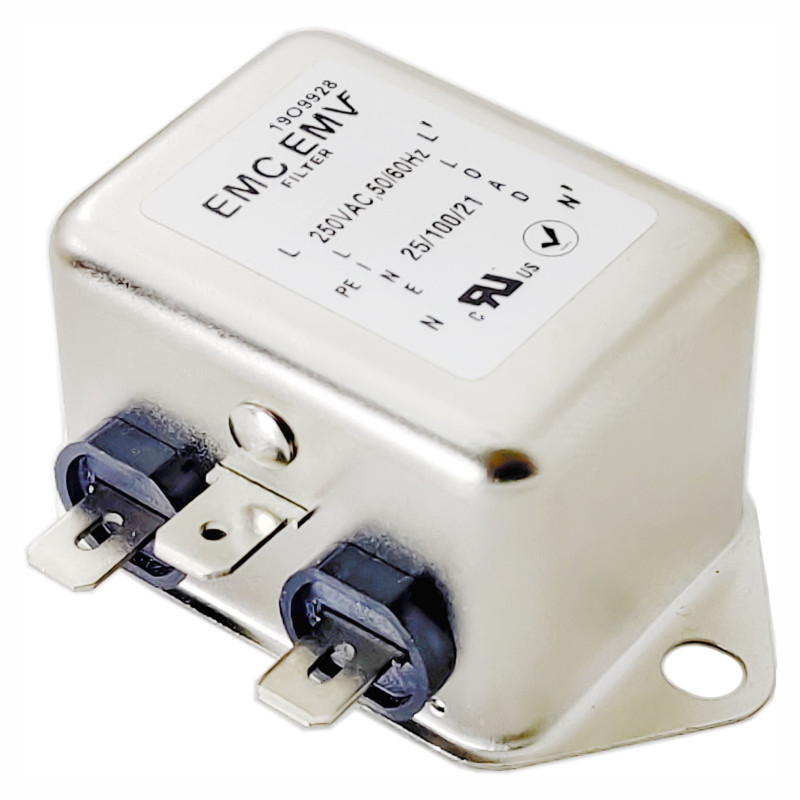

Akyga EN2030-10-F eenfasig EMC-netfilter 10 A, 120–250 V AC, 50/60 Hz, 6,3 mm aansluitingen

The Akyga EN2030-10-F is a single-phase EMI filter designed to protect equipment operating at up to 10 A from electromagnetic interference. Its bipolar design ensures effective interference suppression, and the durable metal housing protects the filter from external influences.

Key features

• Maximum working current: 10 A
• Bipolar design for effective interference suppression
• 6.3 mm connectors for quick installation
• Durable metal housing
• Leakage current: 0.43 mA @ 120 VAC 60 Hz, 0.74 mA @ 250 VAC 50 Hz
• Operating temperature: -25°C to +100°C
• CE, RoHS, and REACH compliant

Specifications

• Brand: Akyga
• MPN: EN2030-10-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Number of poles: 2
• Material: Metal
• Product size (L x W x H): 86 x 52 x 29 mm
• EAN code: 5901720138637
