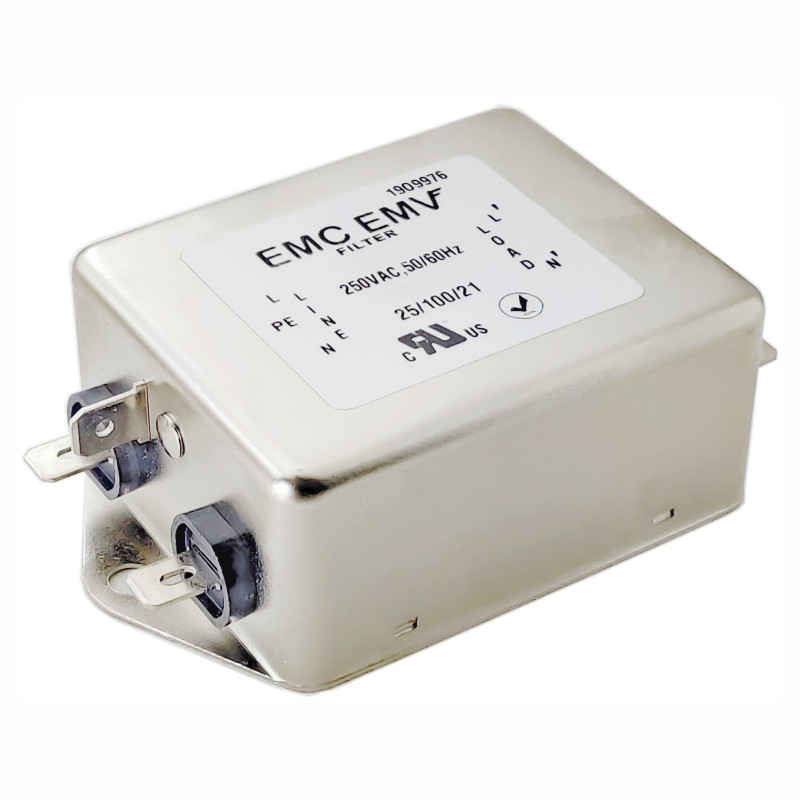

Akyga EN2030-20-F eenfasig EMC-netfilter 20 A, 120–250 V AC, 50/60 Hz, 6,3 mm aansluitingen

The Akyga EN2030-20-F is a single-phase EMI filter designed for high power consumption installations where power supply stability and interference protection are a priority. Rated for up to 20 A, it is suitable for demanding environments such as industrial control systems, advanced power systems, and professional electronics. It features a bipolar design and a metal housing for effective shielding.

Key features

• Rated for up to 20 A
• Bipolar design for effective suppression of electromagnetic interference
• 6.3 mm connectors for quick installation and secure connection
• Metal housing for durability and effective shielding
• Wide operating temperature range

Specifications

• Brand: Akyga
• MPN: EN2030-20-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 20 A
• Leads: 6.3 mm connectors
• Leakage current: 0.90 mA @120 VAC 60 Hz, 1.57 mA @250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C to +100°C
• Product size (L x W x H): 86 x 52 x 38 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138668
