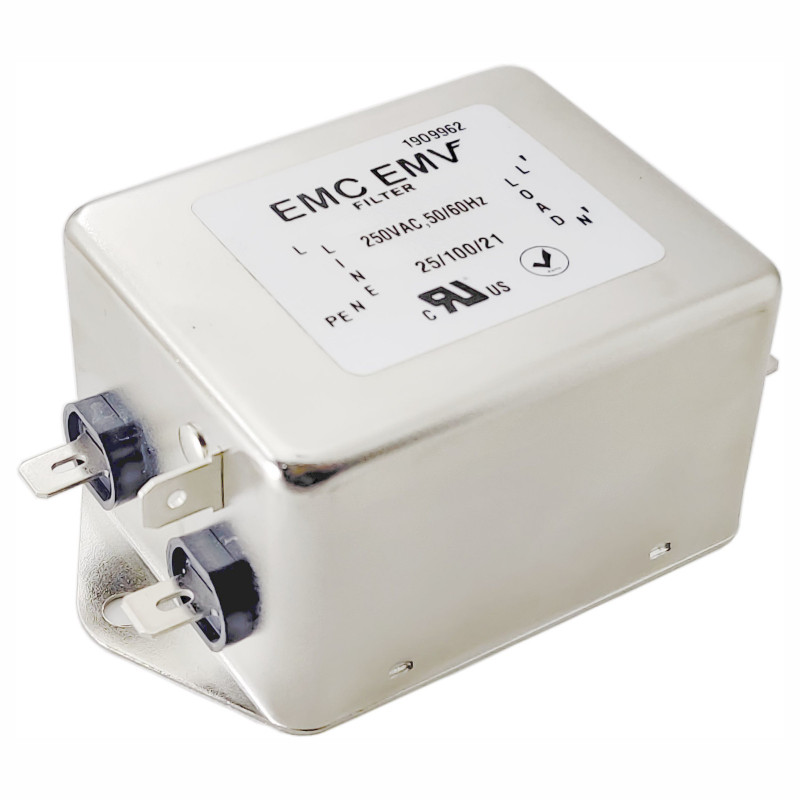

Akyga EN2090-20-F eenfasige EMI-netfilter 20 A, 120–250 V AC, 50/60 Hz, 6,3-mm-aansluitingen

The Akyga EN2090-20-F is a single-phase EMI filter designed to protect equipment drawing up to 20 A from electromagnetic interference. It provides stable operation for industrial automation, power systems, audio installations and sensitive IT systems.

Key features

• High attenuation efficiency
• Metal housing for protection against external interference
• 6.3 mm connectors for quick and robust installation
• Higher leakage current for demanding environments

Specifications

• Brand: Akyga
• MPN: EN2090-20-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 20 A
• Leads: 6.3 mm connectors
• Leakage current: 1.00 mA @120 VAC 60 Hz, 1.73 mA @250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature range: -25°C to +100°C
• Product size (L x W x H): 115 x 57 x 45 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720139023
