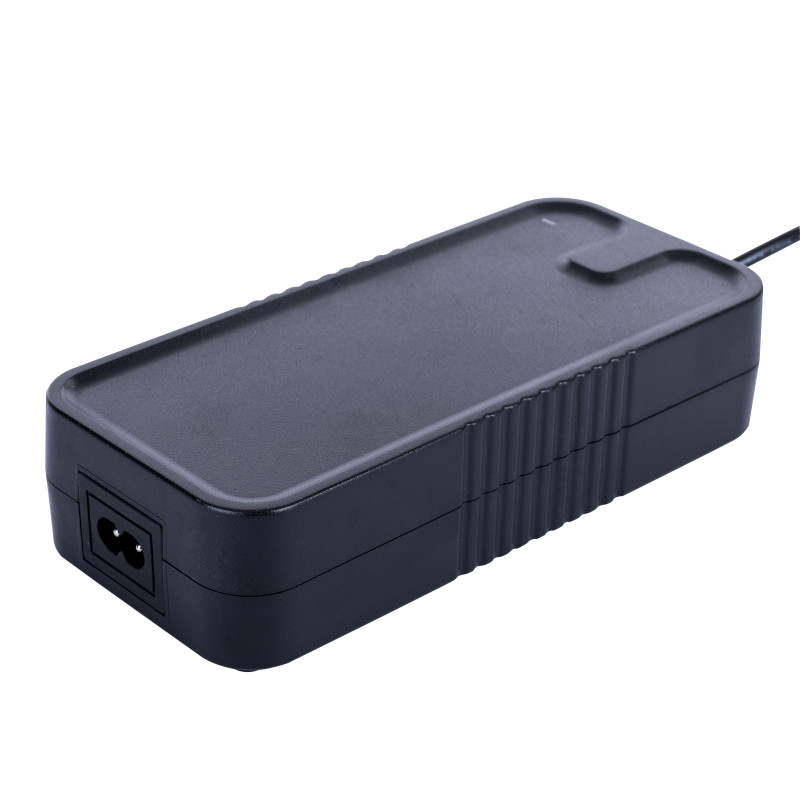

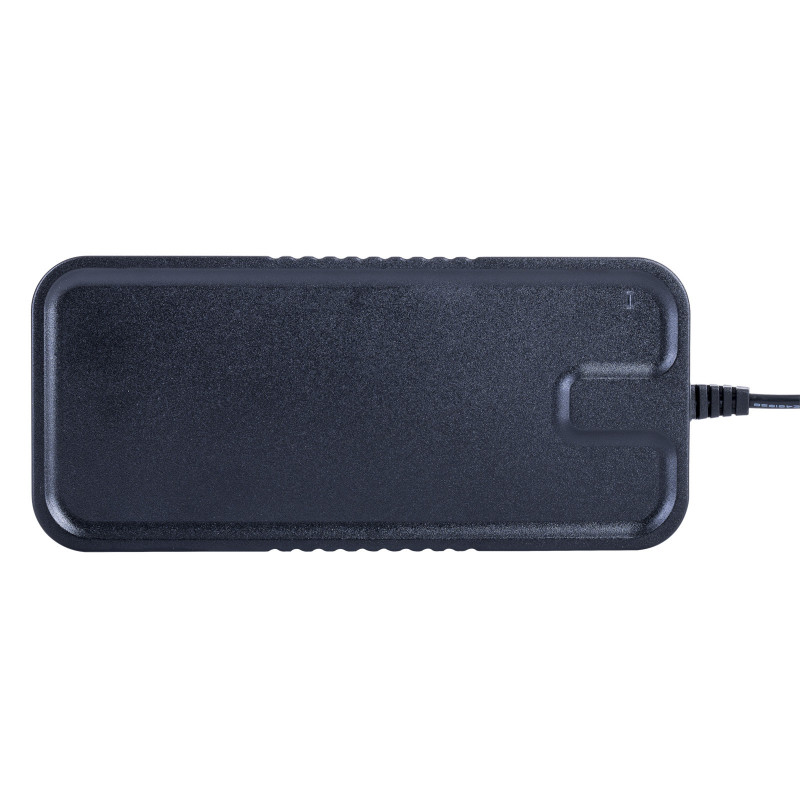

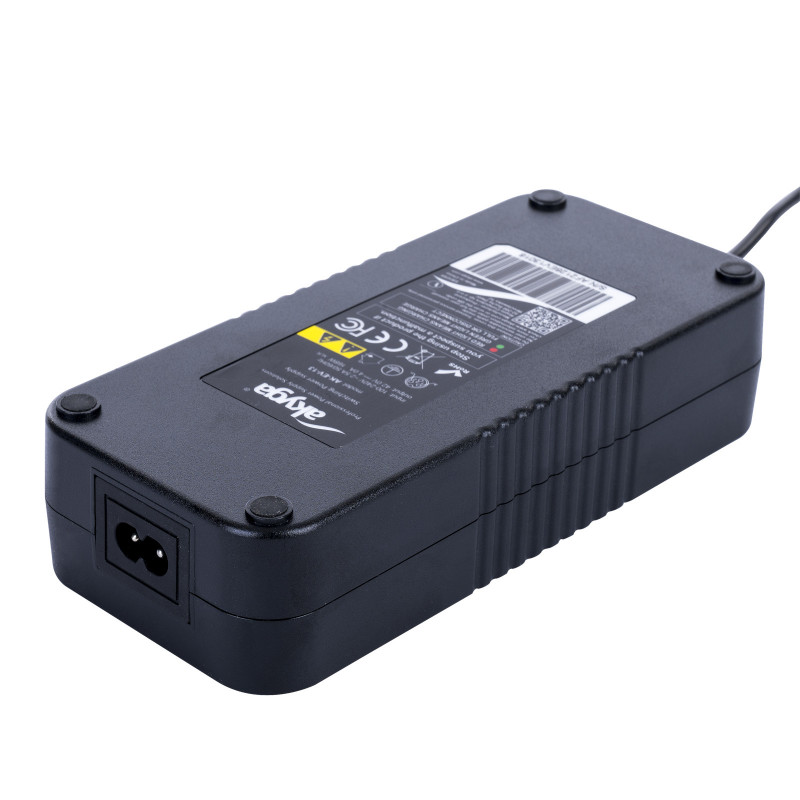

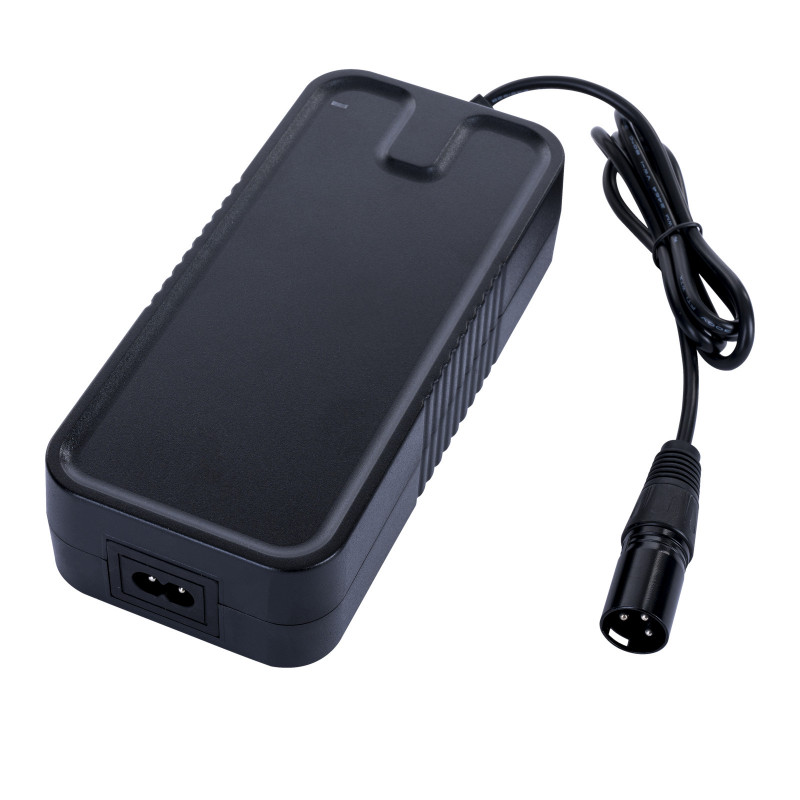

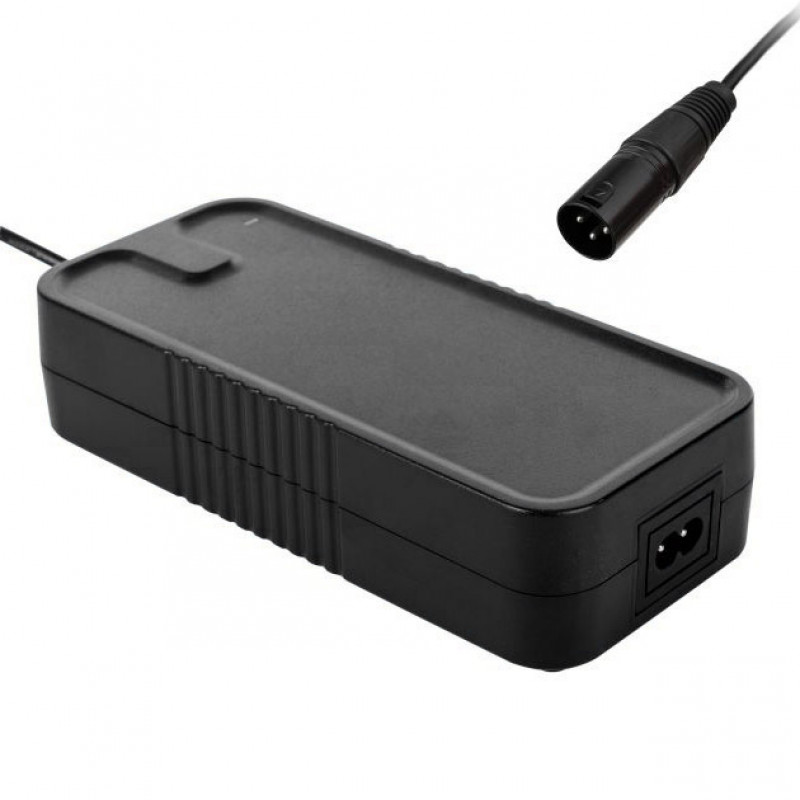

Akyga AK-EV-13 oplader voor 36 V e-bikes, 42 V / 4 A 168 W, 3-polig XLR (M), 1 m

The Akyga AK-EV-13 is a charger for electric bicycles and scooters, featuring a 3-pin XLR male connector. It delivers 42 V at 4 A for faster charging of lithium-ion batteries, and is recommended for vehicles with a 36 V battery. The charger does not have a permanently attached power cable, allowing you to use a suitable cable for your region.

Key features

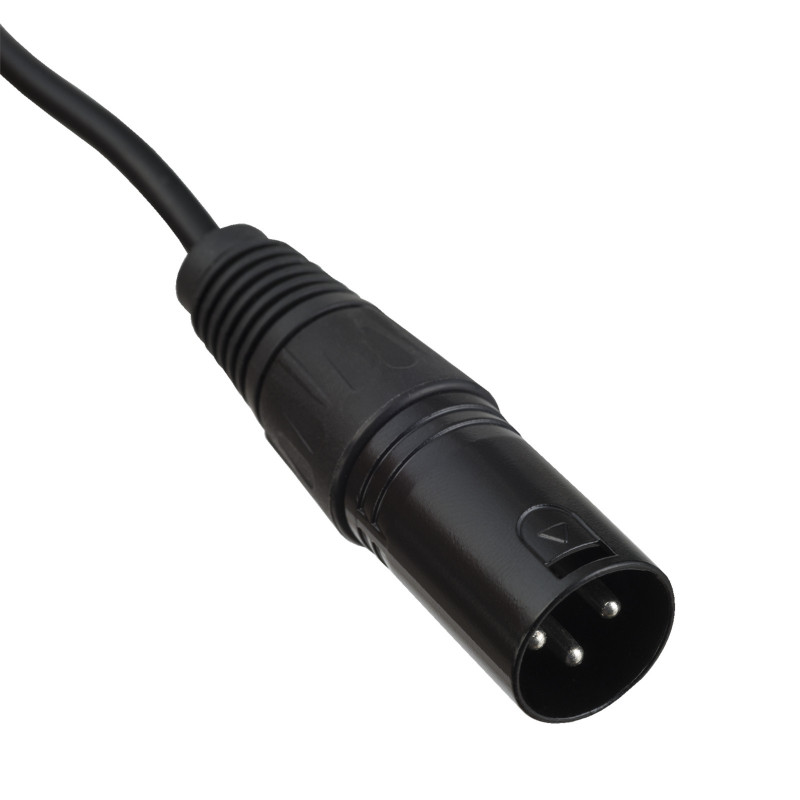

• 3-pin XLR male connector (Cannon)
• 42 V / 4 A output for faster charging
• Recommended for 36 V battery vehicles
• No permanently attached power cable
• Protection: OVP, OCP, OPP, SCP
• Efficiency: > 80%

Specifications

• Brand: Akyga
• MPN: AK-EV-13
• Product type: AC/DC adapter
• Supply voltage: 100-240 V
• Power consumption: < 2.5 A
• Output voltage: 42 V
• Output amperage: 4 A
• Maximum power: 168 W
• Output connector: Cannon (3 DIN) XLR (m)
• Outlet cord length: 1 m
• Power inlet: IEC C8
• Mechanical switch: None
• Ground wire: None (II protection class)
• IP rating: IP20
• Material: ABS
• Product colour: Black
• Backlight colour: Bicolor diode
• Display: None
• MTBF: 10000 h
• Product size (L x W x H): 180 x 80 x 40 mm
• Net weight: 695 g
