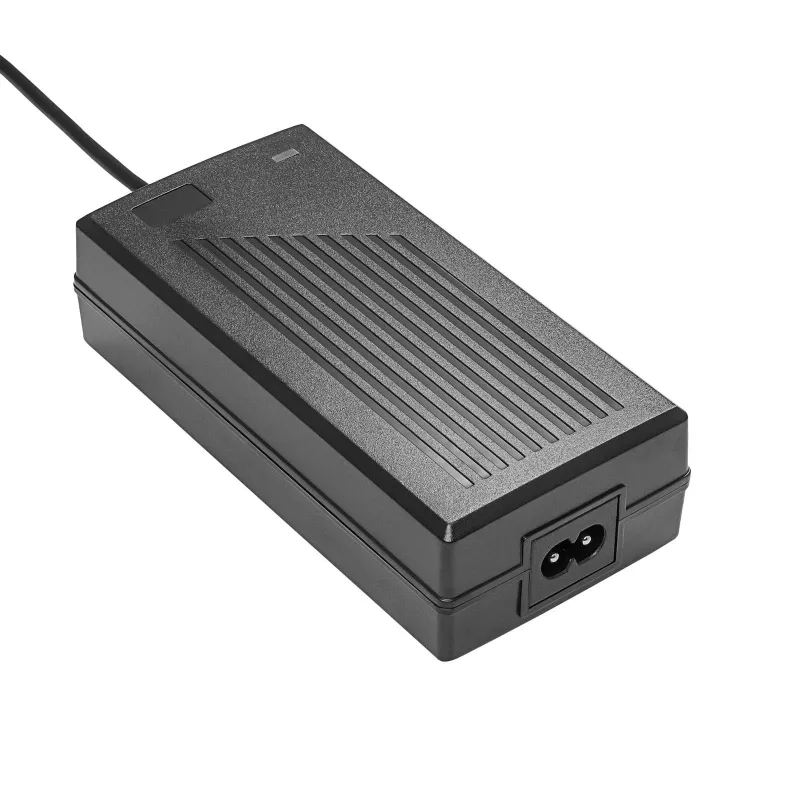

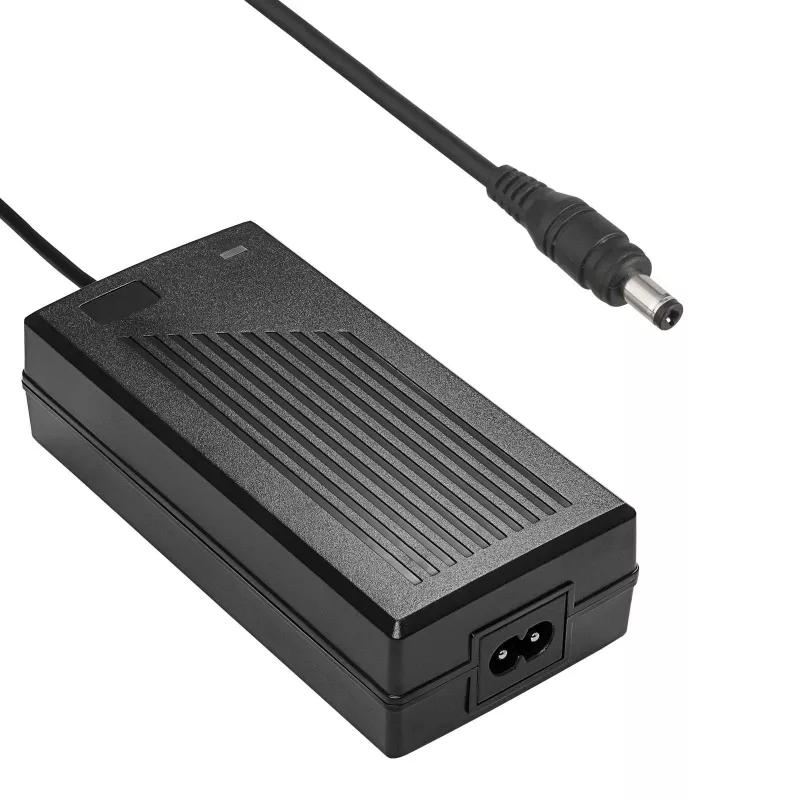

Akyga AK-EV-14 oplader voor 24-V-(7S)-Li-Ion-accu's (E-bike / scooter), 29,4 V / 2 A, 60 W, 5,5 x 2,5 mm

The Akyga AK-EV-14 charger is designed for 24 V (7S) Li-Ion batteries used in e-bikes, scooters, skateboards, and unicycles. It delivers 29.4 V at 2 A (60 W) via a 5.5 x 2.5 mm DC connector and features over voltage, over current, over power, and short circuit protection.

Key features

• Compatible with 24 V (7S) Li-Ion batteries: e-bikes, scooters, skateboards, unicycles
• Output: 29.4 V / 2 A, 60 W
• Input: 100-240 V, max. 1.2 A

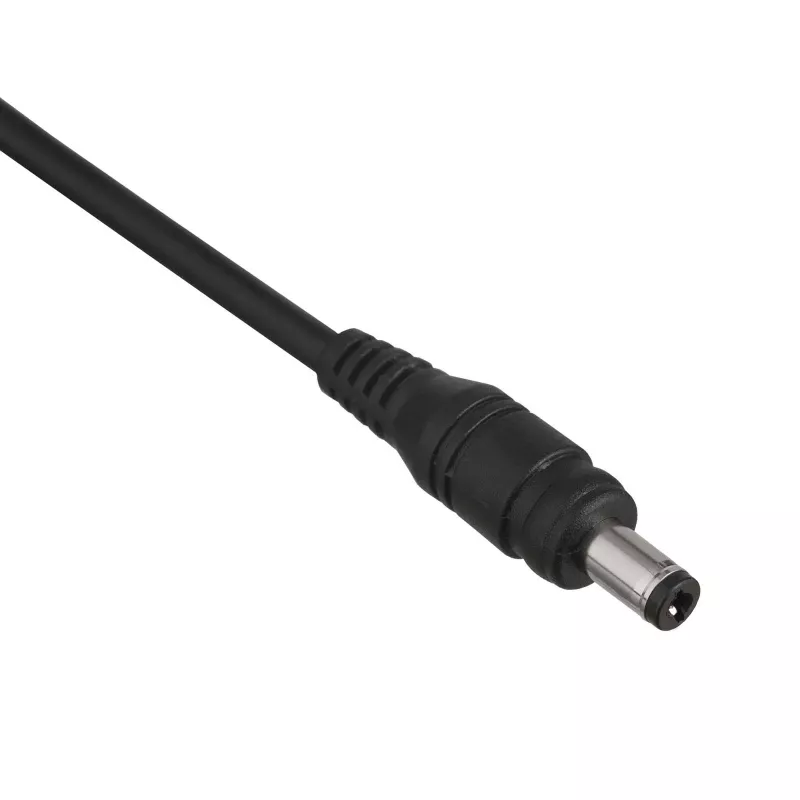

• Connector: 5.5 x 2.5 mm
• Power protection: over voltage, over current, over power, short circuit
• Efficiency: > 80 %
• IP20 rated
• ABS housing, black
• Cable length: 1.2 m
• Connectors #2: IEC C8

Specifications

• Product type: E-bike battery charger
• Brand: Akyga
• MPN: AK-EV-14
• Product colour: Black
• Housing material: ABS
• Input voltage: 100 - 240 V
• Input current: max. 1.2 A
• Output voltage: 29.4 V
• Output current: 2 A
• Output power: 60 W
• Charging voltage: 29.4 V

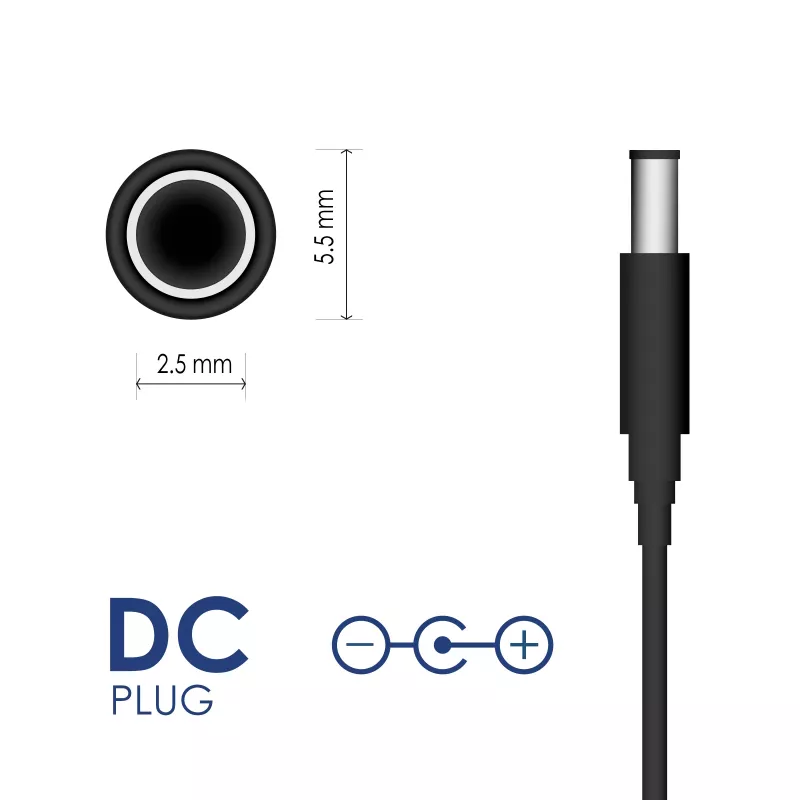

• Connector type: 5.5 x 2.5 mm
• Connectors #2: IEC C8
• Cable length: 1.2 m
• Efficiency: > 80 %
• Power protection features: Over voltage, Over current, Over power, Short circuit
• International Protection (IP) code: IP20
• Weight: 308 g
• Compliance certificates: CE, RoHS, REACH
