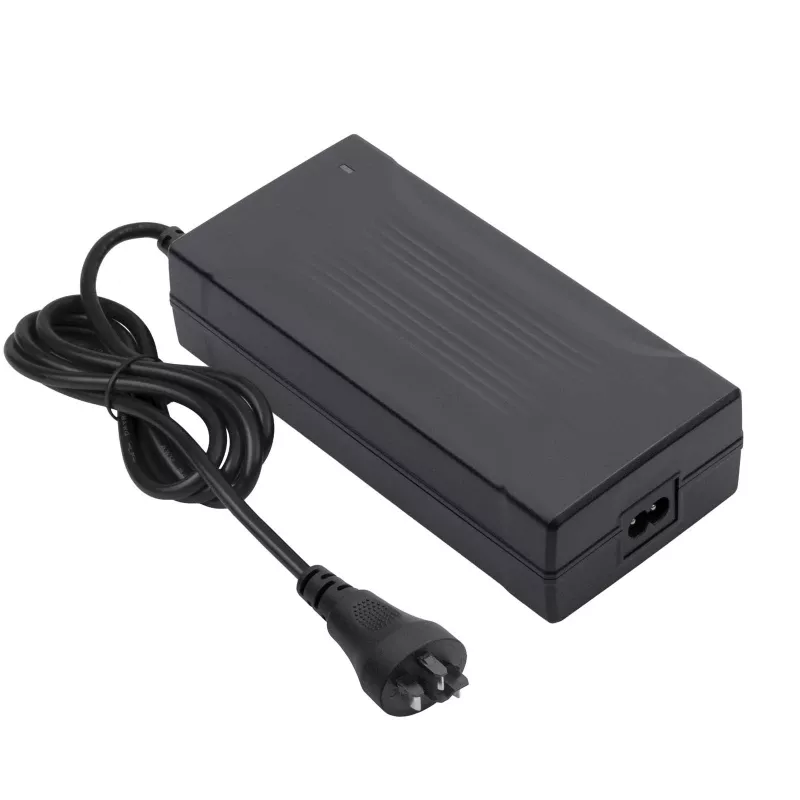

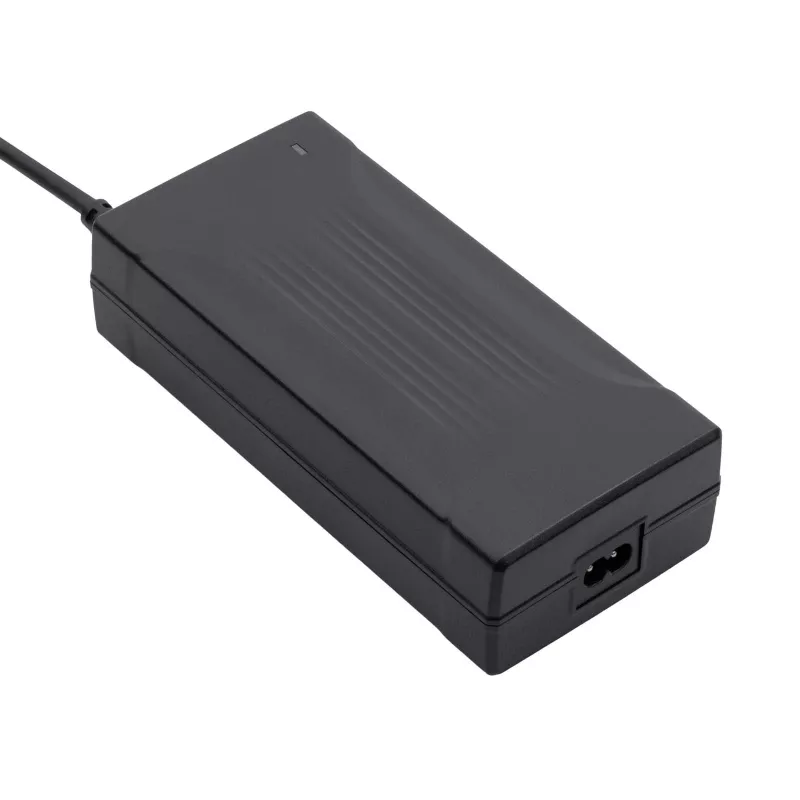

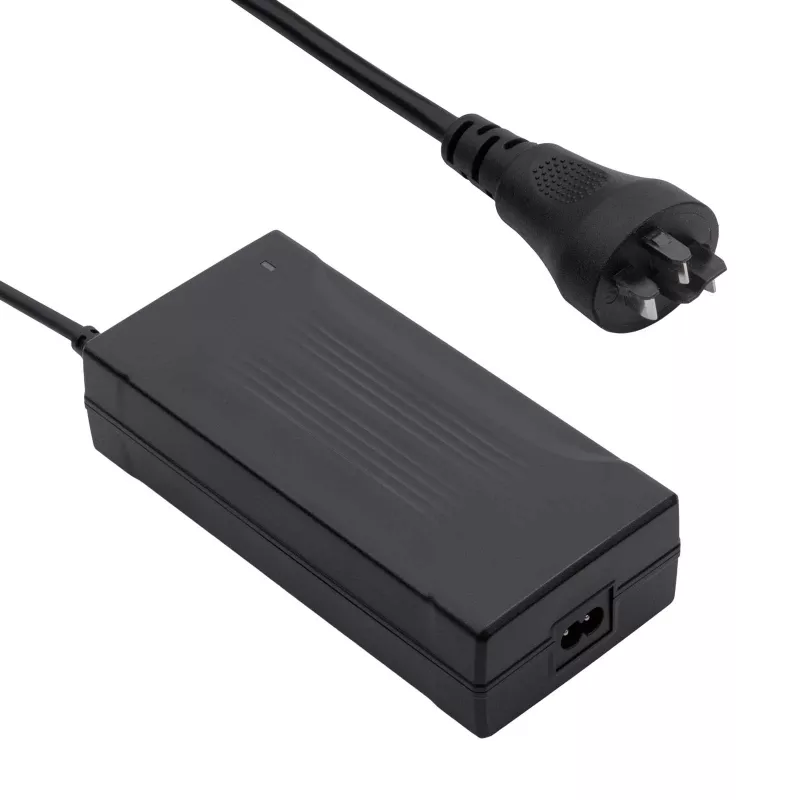

Akyga AK-EV-25 Lader 42V/4A 168W Bosch 1,2m

The Akyga AK-EV-25 is a 42 V / 4 A (168 W) charger intended as a replacement for the Bosch BCS220 charger, suitable for selected e-bikes with Bosch drives. It is designed to charge 36 V batteries and features a 1.2 m cable for flexible connection.

Key features

• Replacement for Bosch BCS220 charger
• Designed for selected e-bikes with Bosch drives
• Charges 36 V batteries
• 1.2 m cable
• Compact design
• OVP, OCP, OPP, SCP protections
• IP20 rating

Specifications

• Brand: Akyga
• MPN: AK-EV-25
• Product type: AC/DC adapter
• Supply voltage: 100-240 V
• Power consumption: < 1.1 A
• Efficiency: > 80 %
• Output voltage: 42 V
• Output amperage: 4 A
• Maximum power: 168 W

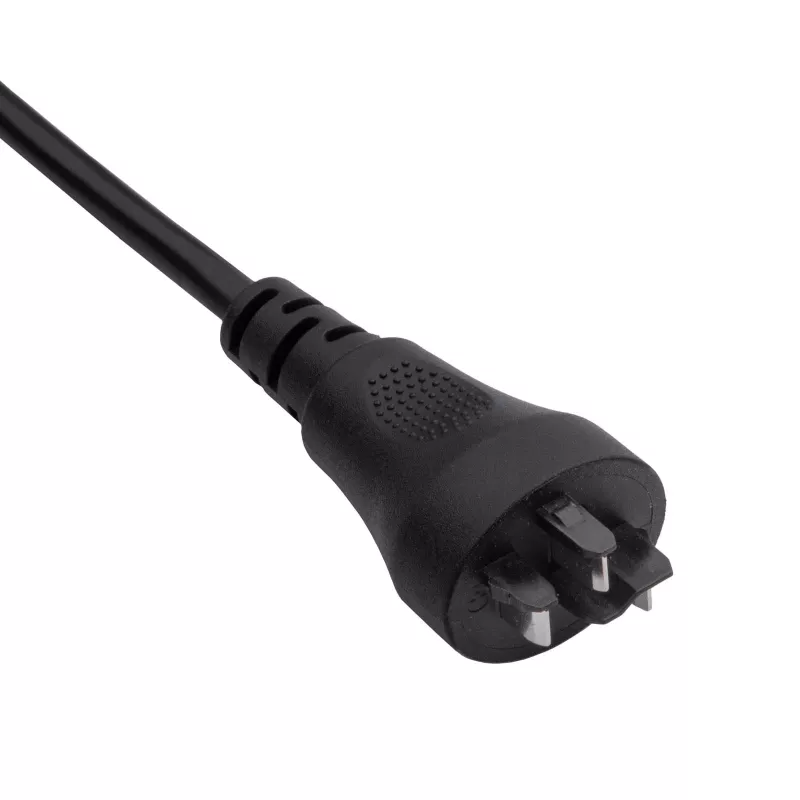

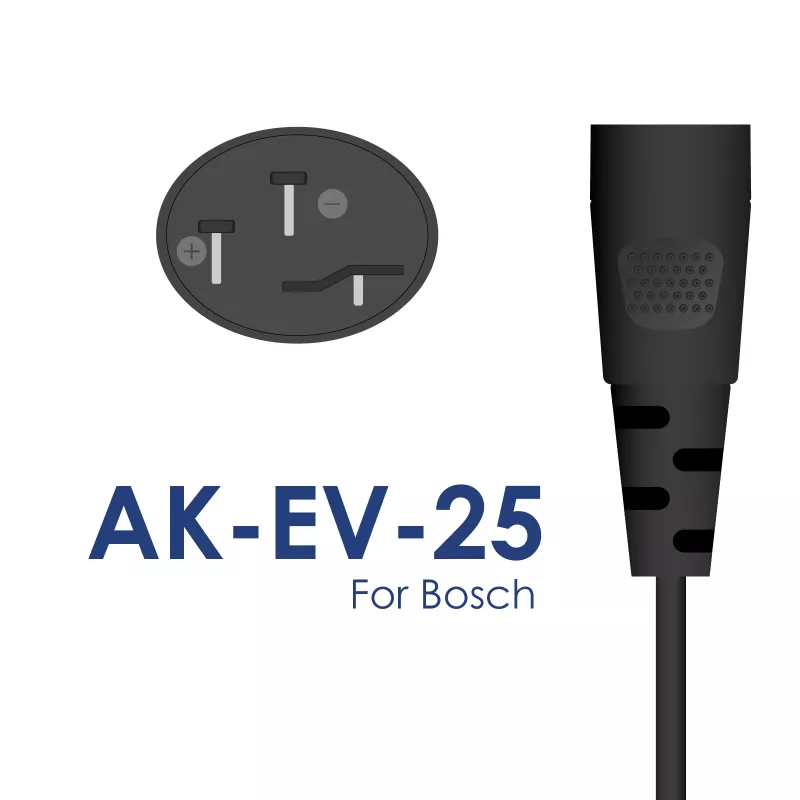

• Output connector: Bosch BCS220
• Outlet cord length: 1.2 m
• Power inlet: IEC C8
• Mechanical switch: None
• Ground wire: None (II protection class)
• IP Rating: IP20
• OVP: Yes
• OCP: Yes
• OPP: Yes
• SCP: Yes
• Ferrite filter: None

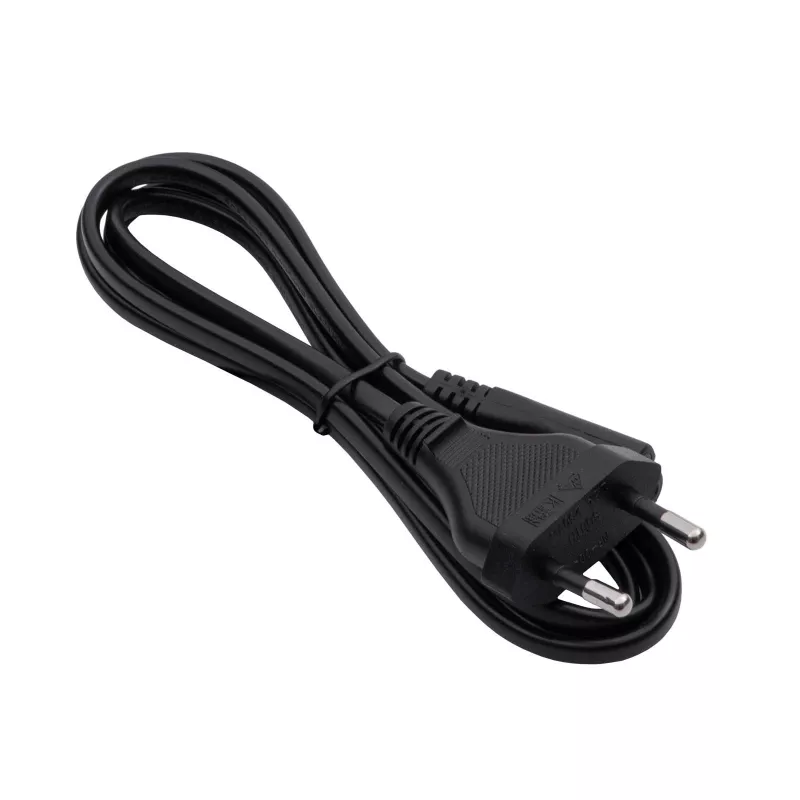

• Power cable included: None
• Material: ABS
• Product color: Black
• Display: None
• MTBF: 10000 h
• Product size (L x W x H): 200 x 115 x 45 mm
• Net weight: 792 g
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5906708751112
