Akyga AK-EV-10 oplader voor 36 V e-bikes en -scooters, 42 V / 2 A 84 W, open kabeleinde, 1 m

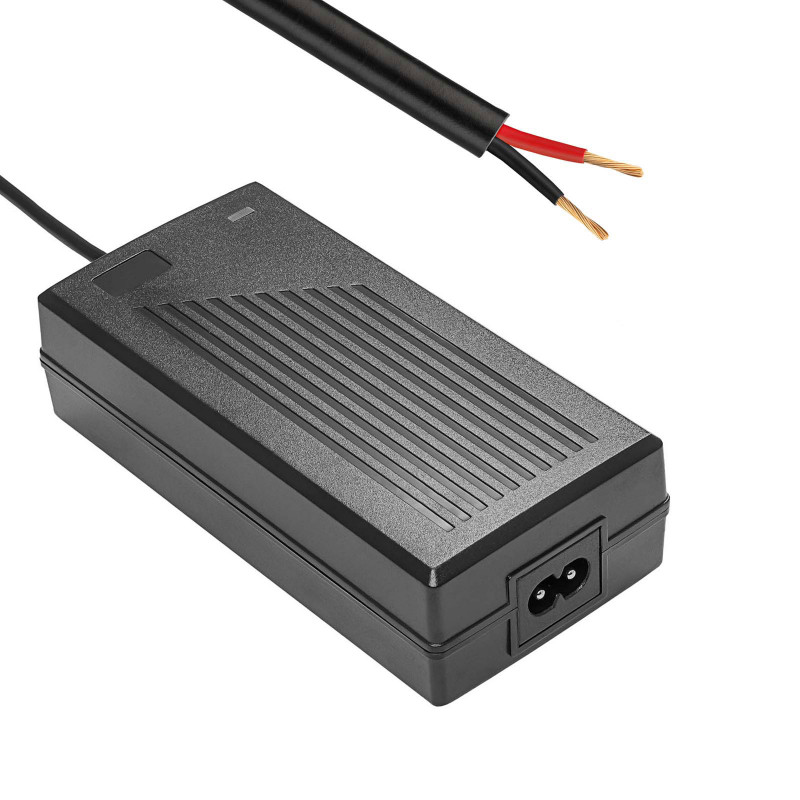

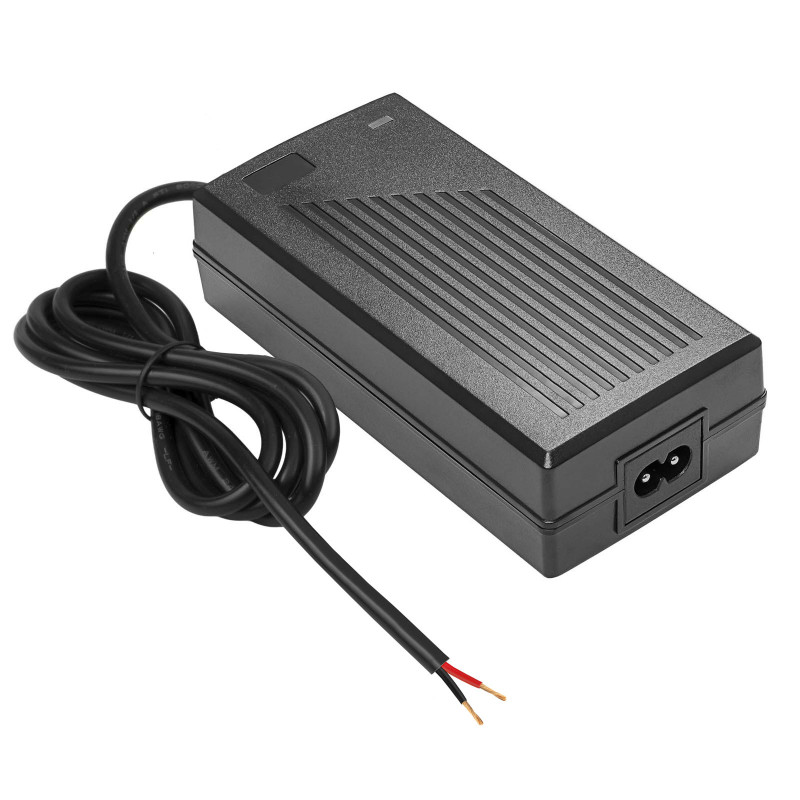

The Akyga AK-EV-10 is a universal charger for electric bikes and scooters, designed for vehicles with 36 V batteries. It delivers an output of 42 V / 2 A, providing a maximum power of 84 W. The charger has no output connector, allowing users to choose the plug according to the device being charged, and features a 1 m output cable for flexibility.

Key features

• Universal charger for electric bikes and scooters

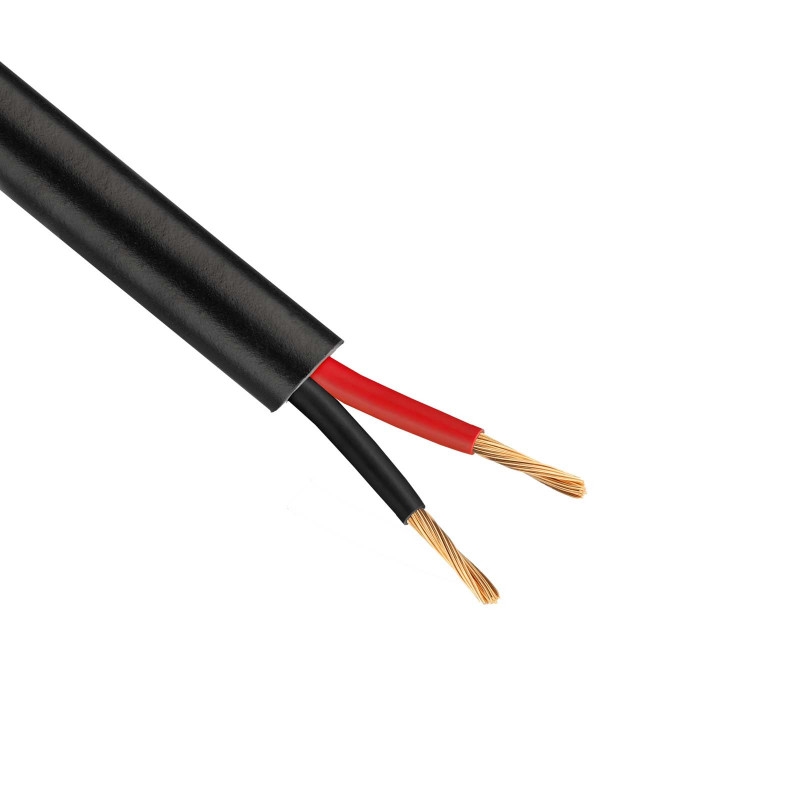

• No output connector – ideal for DIY enthusiasts
• 1 m output cable for flexible mounting
• IEC C8 power inlet
• LED light indicating charging duration or completion
• OVP, OCP, OPP, SCP protections
• II protection class

Specifications

• Brand: Akyga
• MPN: AK-EV-10
• Product type: AC/DC adapter
• Supply voltage: 100-240 V
• Power consumption: < 2.5 A
• Efficiency: > 80 %
• Output voltage: 42.0 V
• Output amperage: 2 A
• Maximum power: 84 W
• Output connector: Without termination
• Outlet cord length: 1 m
• Power inlet: IEC C8
• Mechanical switch: None
• Ground wire: None (II protection class)
• IP Rating: IP20
• Material: ABS
• Product colour: Black
• Backlight colour: Bicolor diode
• Display: None
• MTBF: 10000 h
• Product size (L x W x H): 140 x 59 x 33 mm
• Net weight: 322 g
