Akyga AK-EV-07 e-scooter-oplader voor Xiaomi Mijia 36 V, 42 V / 1,7 A 72 W, RCA 7,9 x 5,6 mm, 1 m

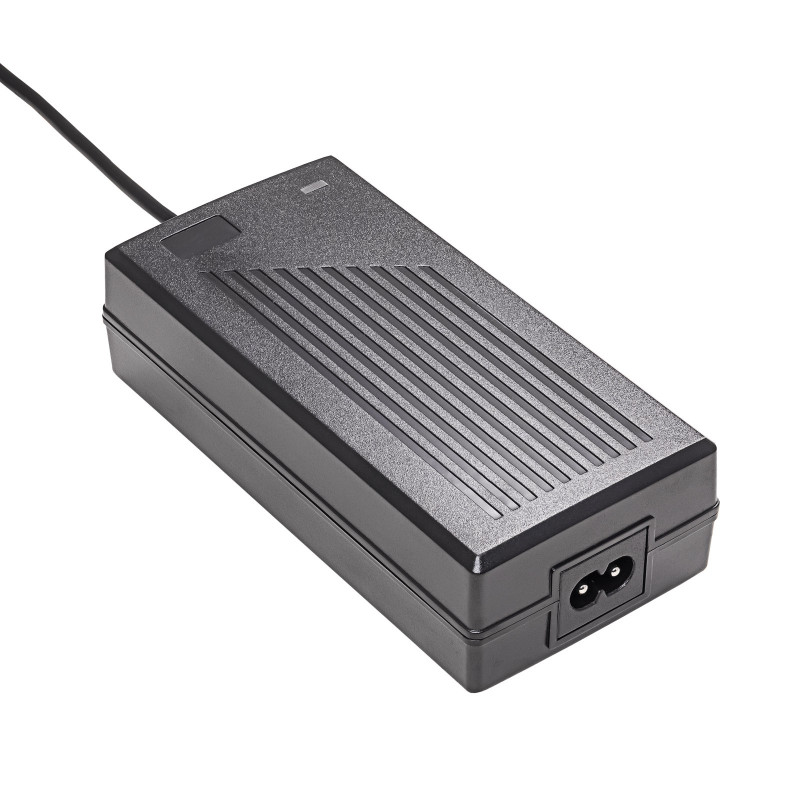

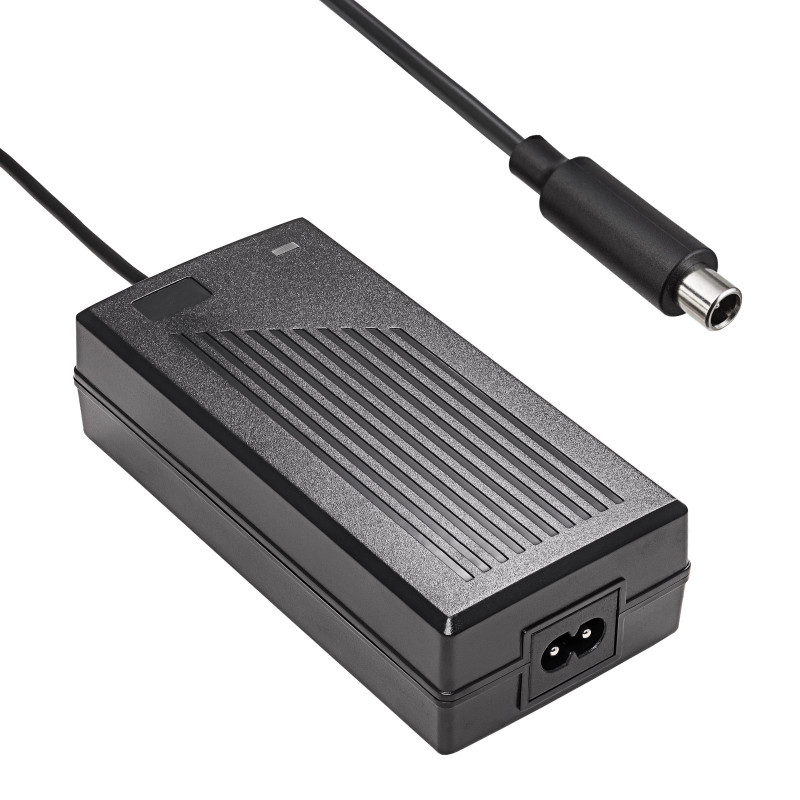

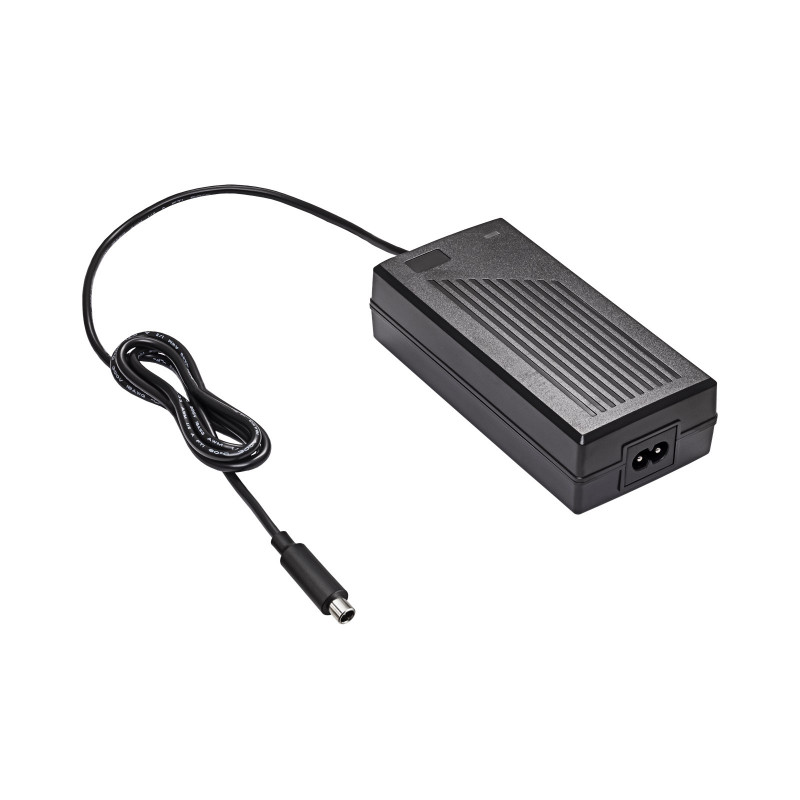

The Akyga AK-EV-07 is an AC/DC adapter charger designed for Xiaomi MiJia electric scooters with 36 V cells. It delivers a maximum charging power of 72 W with an output of 42 V / 1.7 A and features a coaxial RCA output plug on a 1 meter cable.

Key features

• Dedicated for Xiaomi MiJia electric scooters with 36 V cells
• IEC C8 power socket

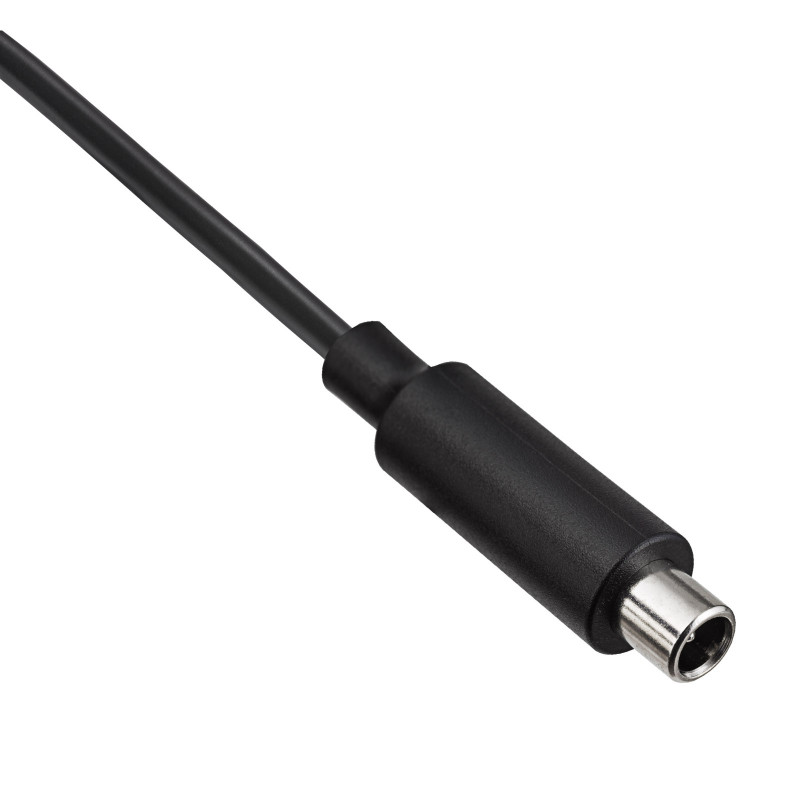

• Coaxial RCA output plug on a 1 meter long cable
• Maximum charging power: 72 W
• Output: 42 V / 1.7 A
• Efficiency: over 80%
• LED control indicating charging duration or completion
• Protections: OVP, OCP, OPP, SCP
• Black colour
• Eco-friendly Ecobox packaging

Specifications

• Brand: Akyga
• MPN: AK-EV-07
• Product colour: Black
• Product type: AC/DC adapter
• Supply voltage: 100-240 V
• Power consumption: < 2.5 A
• Output voltage: 42.0 V
• Output amperage: 1.7 A
• Outlet cord length: 1 m

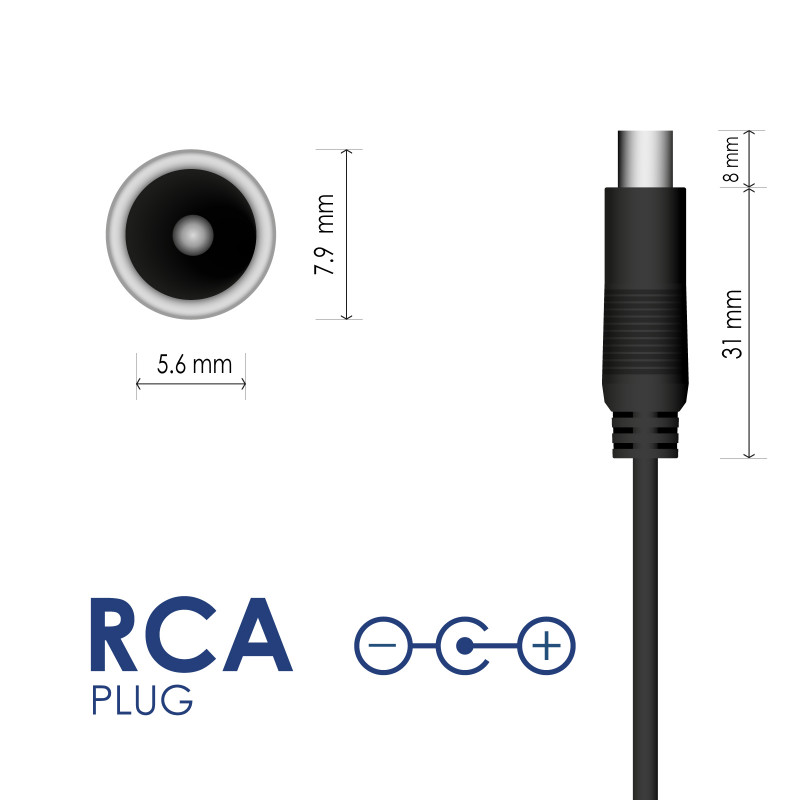

• Output connector: RCA 7.9 x 5.6 mm (m)
• Maximum power: 72 W
• Power inlet: IEC C8
• Mechanical switch: None
• Ground wire: None (II protection class)
• IP Rating: IP20
• OVP: Yes
• OCP: Yes
• OPP: Yes
• SCP: Yes
• Cable plug #1: 7.9 x 5.6 mm
• Ferrite filter: None
• Power cable included: None
• Material: ABS
• Backlight colour: Bicolor diode
• Display: None
• MTBF: 10000 h
• Package: EcoBox
• Product size (L x W x H): 136 x 66 x 38 mm
• Net weight: 293 g
