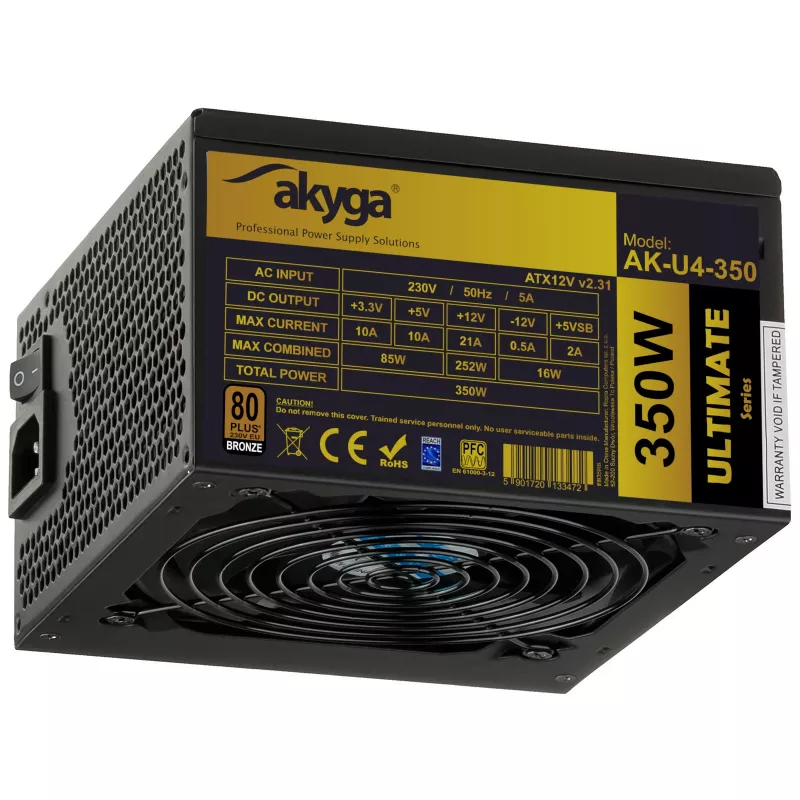

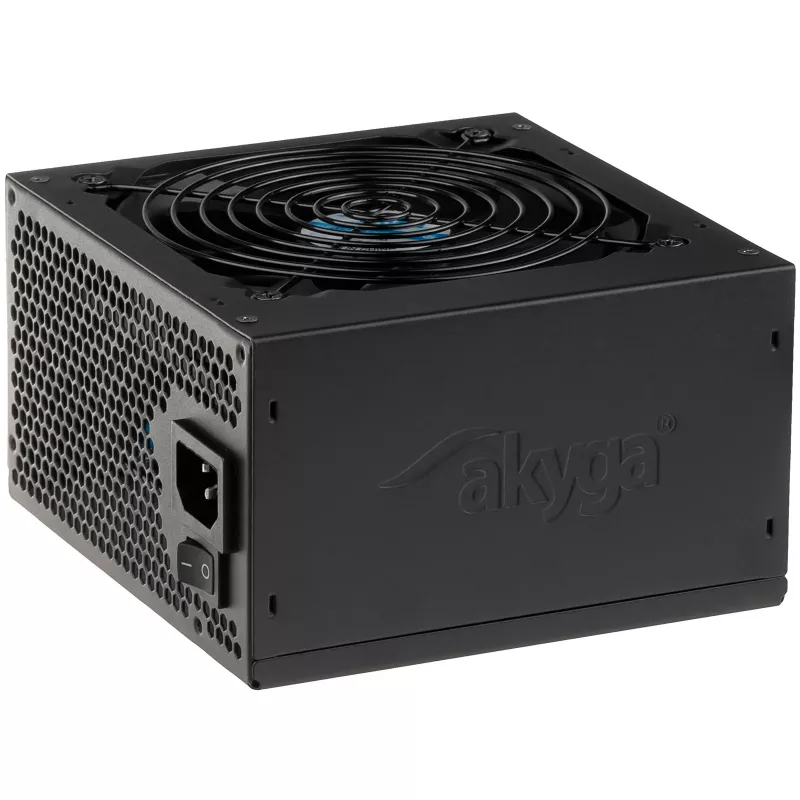

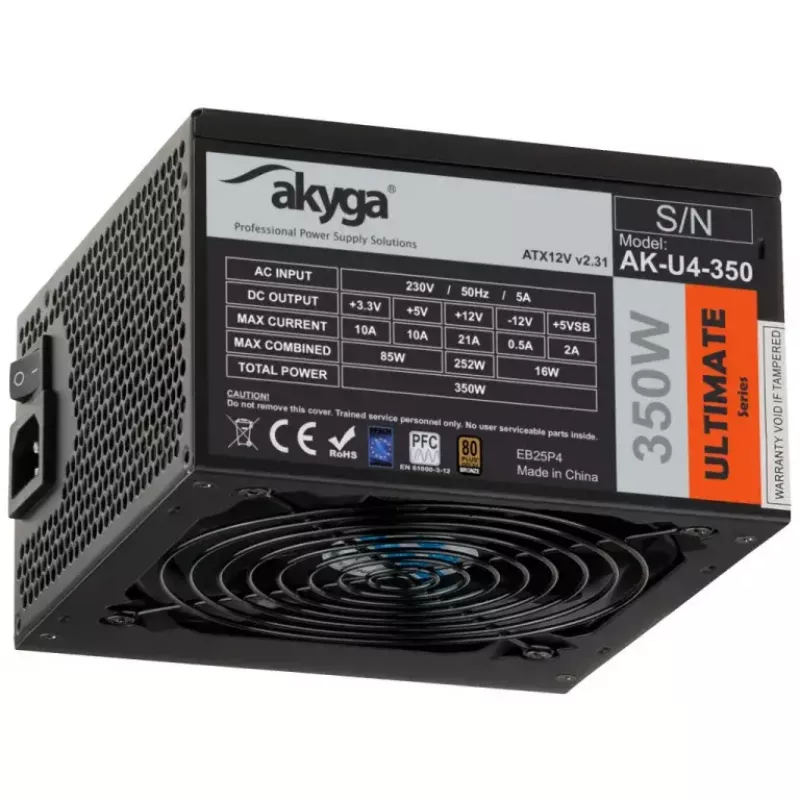

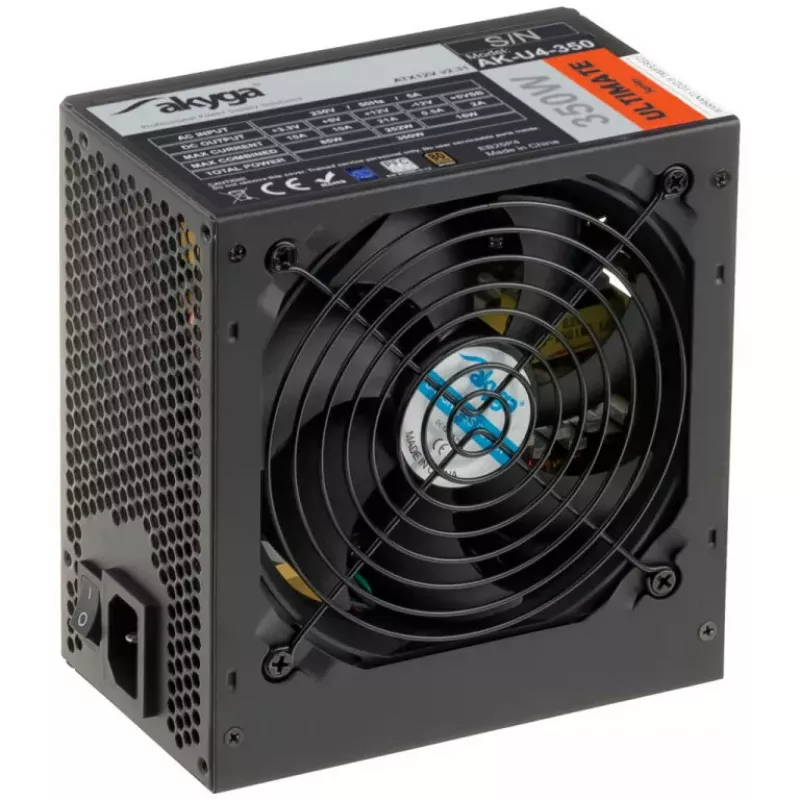

Akyga AK-U4-350 Ultimate 350 W ATX-voeding, 80 PLUS Bronze, actieve PFC, 120-mm-ventilator

The Akyga AK-U4-350 is a 350 W ATX power supply from the Ultimate series, compliant with the ATX 2.31 standard. It features active PFC, 80 PLUS Bronze certification, and a 120 mm fan with automatic speed adjustment. The unit includes a manual on/off switch and provides multiple connectors for PC builds.

Key features

• 350 W total power
• 80 PLUS Bronze certified
• Active Power Factor Correction (PFC)
• 120 mm fan with automatic adjustment
• Manual on/off switch
• Non-modular cabling
• Power cord included
• Protection features: OVP, OCP, OPP, OTP, SCP, UVP

Specifications

• Form factor: ATX
• ATX version: 2.31
• Total power: 350 W
• AC input voltage: 230 V
• AC input frequency: 50 Hz
• Input current: 5 A
• Efficiency: 85 %
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 85 W
• Combined power (+5V): 85 W
• Combined power (+12V): 252 W
• Combined power (-12V): 16 W
• Combined power (+5Vsb): 16 W
• Max output current (+3.3V): 10 A
• Max output current (+5V): 10 A
• Max output current (+12V): 21 A
• Max output current (-12V): 0.5 A
• Max output current (+5Vsb): 2 A

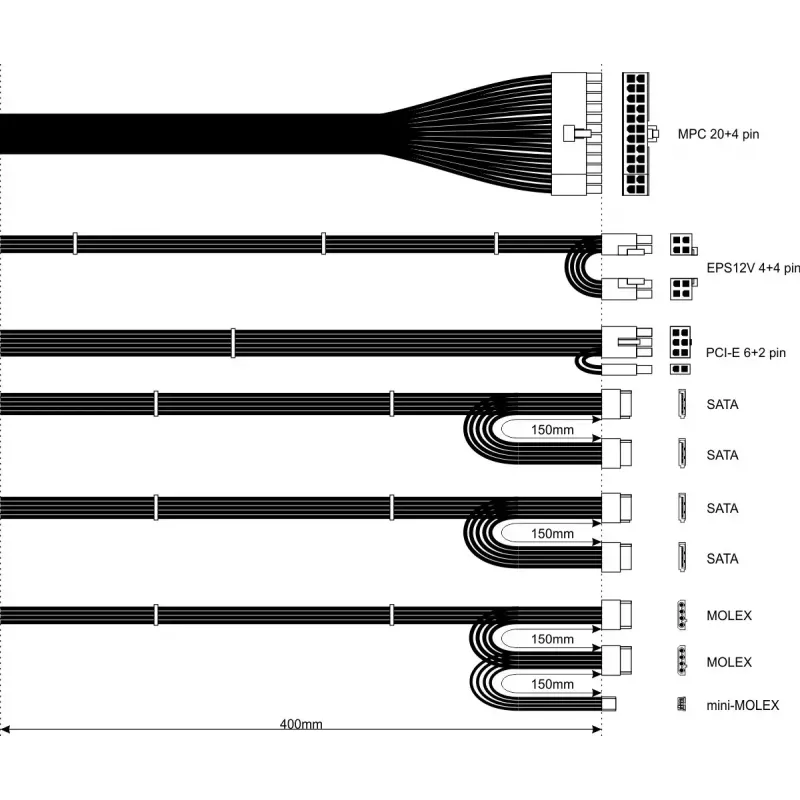

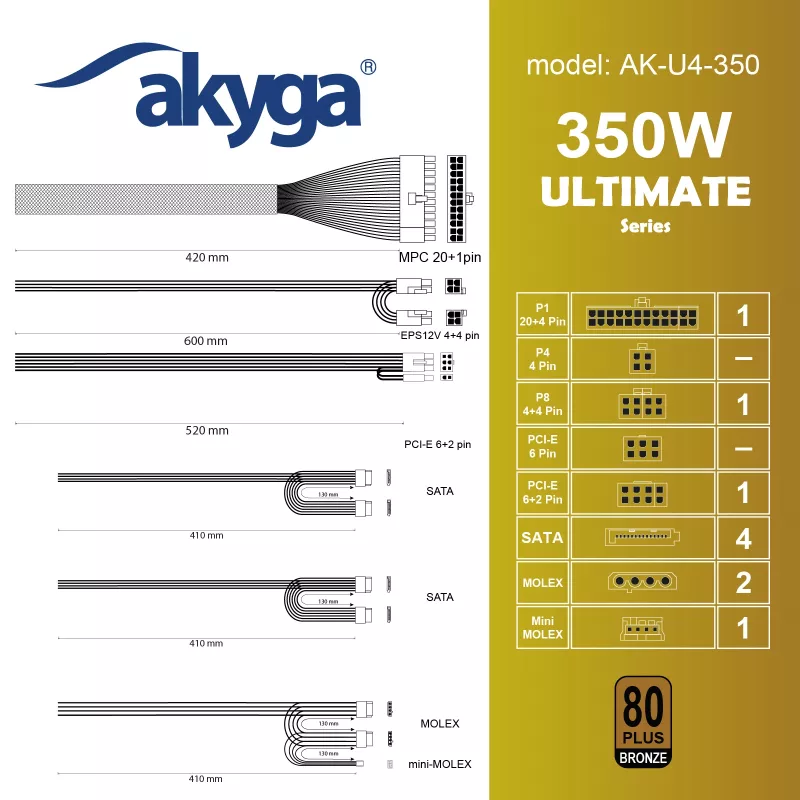

• Motherboard power connector: 20+4 pin ATX
• EPS power connector (4+4 pin): Yes
• PCI Express power connectors (6+2 pin): 1
• Number of SATA power connectors: 4
• Peripheral (Molex) power connectors (4-pin): 2
• Number of fans: 1
• Fan diameter: 120 mm
• Cabling type: Non-Modular
• Product colour: Black
• Material: Galvanized steel
• Mean time between failures (MTBF): 100000 h
• Operating temperature (T-T): 5 - 50 °C
• Certification: CE, RoHS, REACH
• Width: 140 mm
• Depth: 150 mm
• Height: 90 mm
• Weight: 1.2 kg
