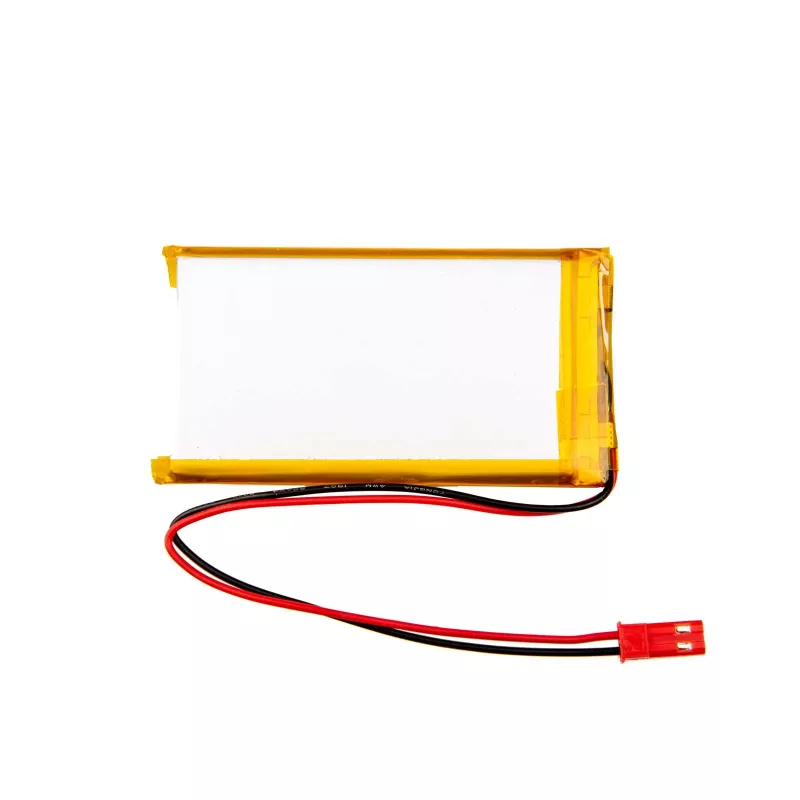

Akyga AKY0157 LP584174 Li-Po-accu 3,7 V 1800 mAh, PCM, JST 2,54 2-polig, 150 mm

The Akyga AKY0157 LP584174 is a 3.7 V 1800 mAh lithium-polymer (Li-Po) battery cell with PCM protection against overcharging, over-discharging and short-circuiting. It features a 2-pin JST 2.54 mm connector and 150 mm leads, and is suitable for portable electronics, IoT and Smart Home systems, model-making and medical equipment.

Key features

• Lithium-polymer (Li-Po) technology
• PCM protection: overcharge, over-discharge, short circuit
• 2-pin JST 2.54 mm connector (JST SYP-02T-1)
• 150 mm cable length

Specifications

• Brand: Akyga
• MPN: AKY0157
• Type: Li-Po cell LP584174
• Battery technology: Lithium Polymer (Li-Po)
• Battery capacity: 1800 mAh
• Battery voltage: 3.7 V
• Protection features: PCM (overcharge, over-discharge, short circuit)
• Connector type: JST 2.54 mm, 2-pin (JST SYP-02T-1)
• Cable length: 150 mm
• Depth: 74 mm
• Height: 5.8 mm
• Width: 41 mm
• Weight: 34 g
