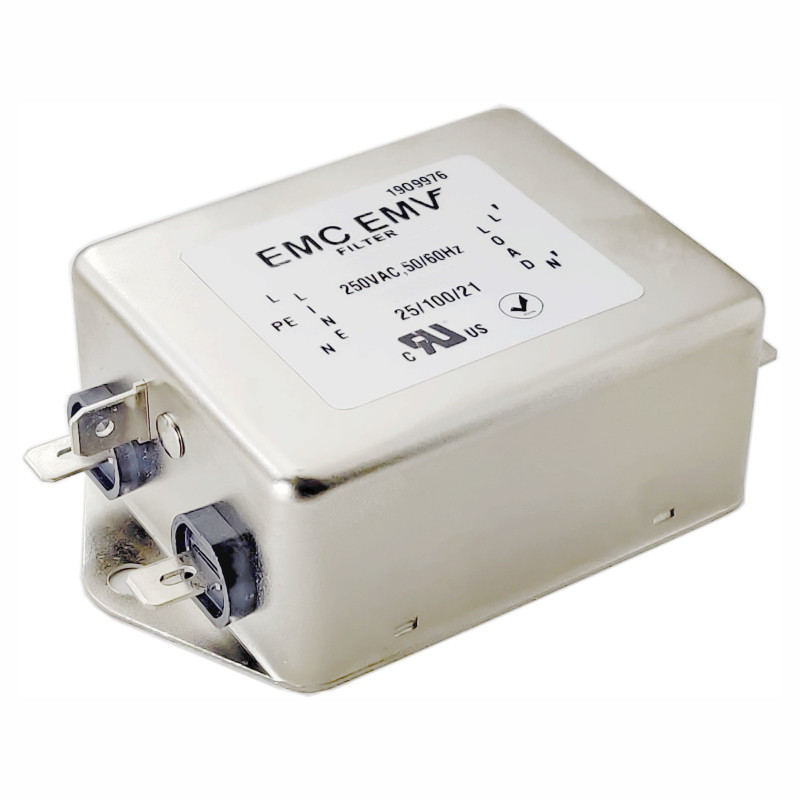

Akyga EN2060-20-F eenfasig EMC-netfilter 20 A, 120–250 V AC, 50/60 Hz, 6,3 mm aansluitingen

The Akyga EN2060-20-F is a single-phase EMI filter designed for protection against electromagnetic interference in higher-current applications. It supports up to 20 A and features a robust metal housing with 6.3 mm connectors for quick and intuitive mounting.

Key features

• Anti-interference EMI filter
• Maximum working current: 20 A
• 6.3 mm connectors
• Low leakage current
• Robust metal housing
• Wide operating voltage range

Specifications

• Brand: Akyga
• MPN: EN2060-20-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 20 A
• Leads: 6.3 mm connectors
• Leakage current: 0.43 mA @120 VAC 60 Hz, 0.74 mA @250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature range: -25°C to +100°C
• Product size (L x W x H): 115 x 57 x 45 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138750
