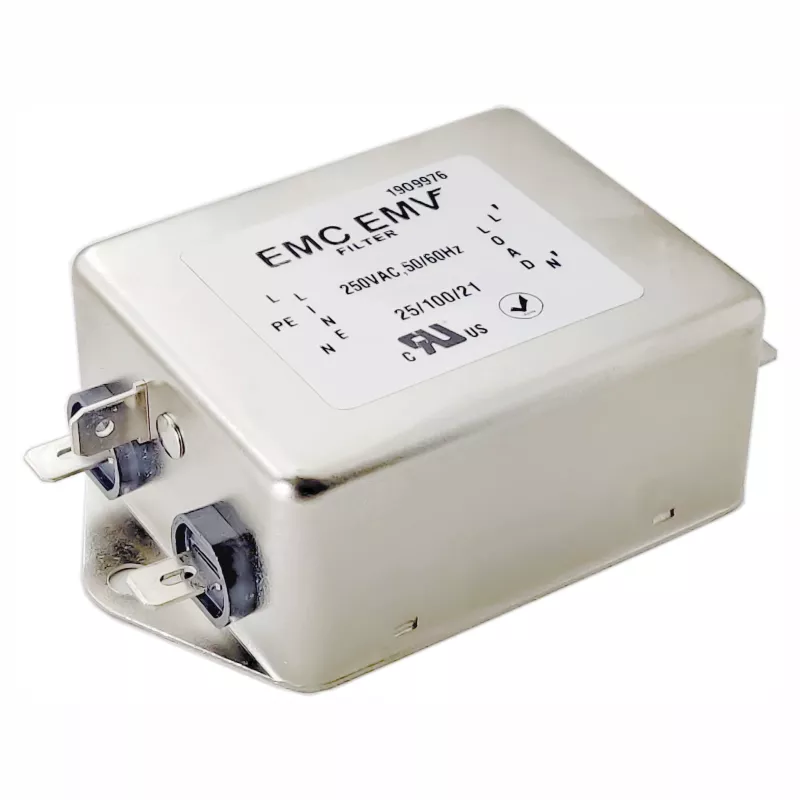

Akyga EN2070-3-F eenfasig EMI-filter, 3 A, 120-250 V AC, 50/60 Hz, 6,3-mm aansluitingen

The Akyga EN2070-3-F is a single-phase EMI filter designed to eliminate electromagnetic interference in electronic equipment operating with moderate loads. It handles up to 3 A and features 6.3 mm connectors for quick installation, housed in a robust metal casing.

Key features

• Single-phase EMI filter
• Rated current: 3 A
• 6.3 mm connectors
• Metal housing
• Number of poles: 2

Specifications

• Brand: AKYGA
• MPN: EN2070-3-F
• Type: Single-phase EMI filter
• Rated current: 3 A
• Rated voltage (AC): 120 - 250 V
• Input frequency: 50/60 Hz
• Connection type: 6.3 mm connectors
• Number of poles: 2
• Material: Metal
• Operating temperature (T-T): -25 - 100 °C
• Width: 45 mm
• Depth: 73 mm
• Height: 29 mm
• Weight: 0.07 kg
• Compliance certificates: CE, RoHS, REACH
