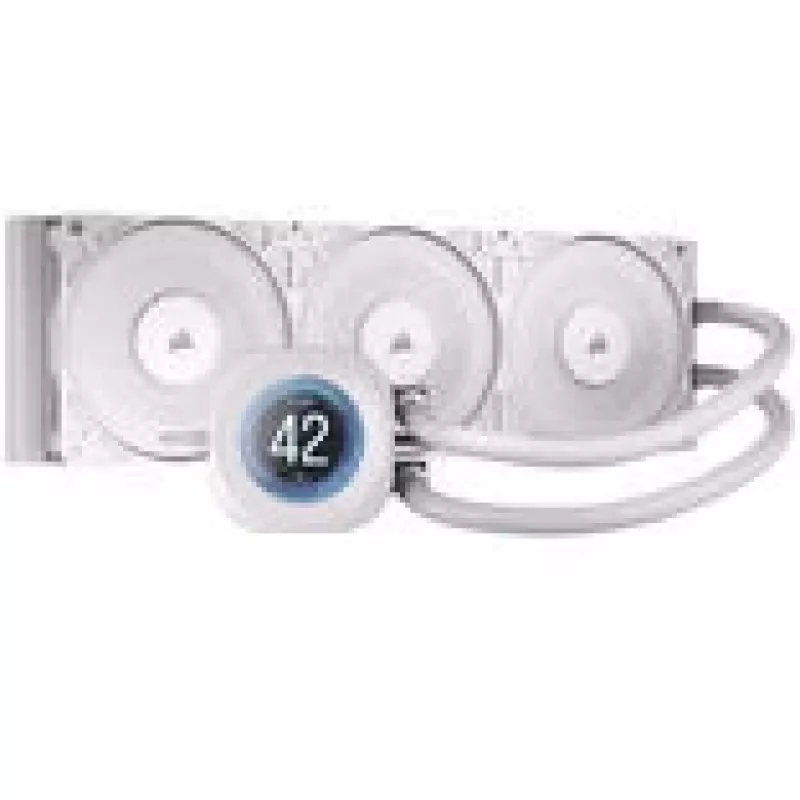

All-in-one-vloeistofkoeler Corsair Nautilus 360 RS 12 cm wit

The Corsair Nautilus 360 RS is an all-in-one liquid cooler with a 120 mm fan diameter and a compact 125 x 396 x 125 mm layout. It features a 480 x 480 2.1" IPS LCD able to display CPU temperature, animated GIFs and logos at 30 FPS with a 600 cd/m² backlight and 16.7 million colors. The unit includes a high-flow, low-noise pump and three RS fans with high static pressure for efficient radiator cooling. Compatibility covers common modern sockets including Intel LGA 1700 / 1851 and AMD AM4 / AM5.

Advantages

The integrated IPS display offers in-app GIPHY support via iCUE for easy GIF and logo customization, while the FlowDrive cooling engine provides increased flow rate and reduced noise compared with previous designs. A precision-machined cold plate and slightly convex contact surface maximize thermal contact with the CPU’s integrated heat spreader. RS fans with AirGuide and Magnetic Dome bearings deliver strong airflow and static pressure, and daisy-chained fan connections reduce cable clutter. PWM control with Zero RPM mode enables quiet operation when full cooling is unnecessary.

Suitable for

• High-performance desktop CPUs in gaming or workstation builds
• Systems where a customizable LCD for temperature or visuals is desired
• Compact or mid-tower cases that accommodate a 360 mm radiator

Key specifications

• Product type: All-in-one liquid cooler
• Fan diameter: 120 mm
• Fan maximum speed: 2,100 RPM
• Display: 480 × 480 IPS LCD, 2.1" (30 FPS), 600 cd/m², 16.7M colors
• Supported sockets: Intel LGA 1700, LGA 1851; AMD AM4, AM5
• Noise level (pump): ~20 dBA
• Airflow / static pressure (fan): specification example 72.8 CFM / 4.15 mmH2O; acoustics up to 36 dB
• Control: PWM with Zero RPM mode
• Colour: White
• Dimensions (W×D×H): 125 × 396 × 125 mm
• Weight: 2.389 kg

How to use

Install the radiator and fans into your case according to case compatibility and mounting orientation. Fit the pump block onto the CPU using the included bracket and pre-applied thermal paste pattern, ensuring the slightly convex cold plate makes full contact with the CPU integrated heat spreader. Connect the pump and display cable to an available USB 2.0 9-pin header on the motherboard for power and iCUE control, then connect fans to the pump or to a single 4-pin PWM header using the provided daisy-chain cabling. Configure fan curves and display content through CORSAIR iCUE software.

Recommendations

For best results, confirm case clearance for a 360 mm radiator and ensure your motherboard has a free USB 2.0 (9-pin) header. Use iCUE to update firmware and customize fan curves and display content; enable Zero RPM mode for quieter idle operation.
