ALLNET ALL-CAB-NM-NM1-RG8 1 m N-type coaxkabel

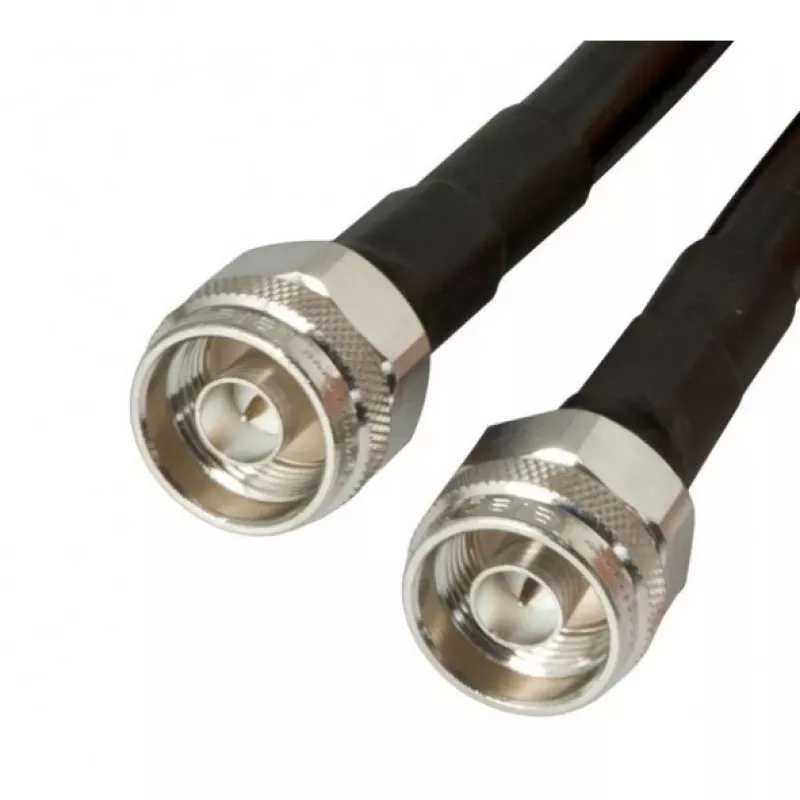

The ALLNET ALL-CAB-NM-NM1-RG8 is a 1 m coaxial cable with N-type male connectors on both ends, designed for reliable RF signal transmission. It uses RF400 (RG8-style) cable construction with a 2.75 mm inner conductor, a 7.4 mm dielectric, an 8.1 mm shield and an overall jacket diameter of 10.3 mm. The cable combines a solid centre conductor with a flexible braided shield to balance low loss and mechanical flexibility.

Advantages

This coaxial lead provides robust N-type terminations for secure, low-reflection connections and is manufactured to ensure consistent impedance and signal integrity. The RF400 construction offers low attenuation for RF applications over short runs, while the mix of a stiff inner conductor and flexible screen improves handling and durability in typical installation scenarios.

Suitable for

• RF signal feed between equipment with N-type interfaces
• Antennas, radio transceivers and test equipment connections
• Outdoor and indoor installations requiring a short, low-loss jumper

Key specifications

• Length: 1 m
• Connector: N-type male — both ends
• Cable type: RF400 (RG8-style)
• Inner conductor diameter: 2.75 mm
• Dielectric diameter: 7.4 mm
• Shield diameter: 8.1 mm
• Jacket diameter: 10.3 mm
• Brand: ALLNET
• MPN: ALL-CAB-NM-NM1-RG8
• EAN: 4038816937483

How to use

Connect each N-type male connector to the corresponding N-type female socket on your devices, ensuring threads are engaged and hand-tightened securely; avoid over-torquing. Route the cable to minimise sharp bends and avoid kinks; maintain a bend radius consistent with the cable diameter. For outdoor use, protect connectors from direct moisture exposure with appropriate sealing or weatherproofing.

Recommendations

Use this 1 m N-type coaxial jumper for short interconnections where low loss and stable RF performance are required. Inspect connectors before each use and replace the cable if the jacket or connectors show mechanical damage.
