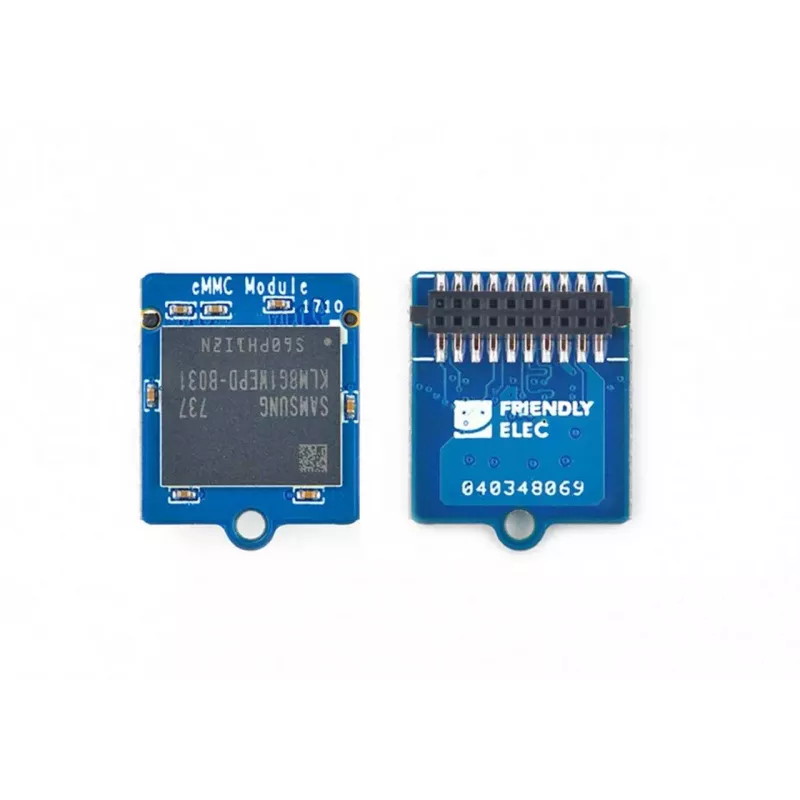

ALLNET FriendlyELEC 64GB eMMC-module om het besturingssysteem te booten zonder SD-adapter (FE-EMM64GB)

For developers and hobbyists working with FriendlyELEC single-board computers, this 64GB eMMC module provides a reliable, high-speed boot drive. Simply attach it to the 12-pin eMMC header on your NanoPi or NanoPC board to run your operating system directly from the module, eliminating the need for an SD card and its associated performance bottlenecks.

Key specifications

• Storage capacity: 64 GB
• Memory type: eMMC 5.1
• Interface speed: HS400
• Max sequential read speed: up to 280 MB/s
• Max sequential write speed: up to 150 MB/s
• Connector type: 12-pin eMMC header
• Operating voltage: 1.8V / 3.3V
• NAND flash type: MLC
• Operating temperature: -25°C to 85°C
• Data retention: 10 years at 55°C
• Error correction: built-in ECC
• Form factor: eMMC module
• Compatibility: FriendlyELEC single board computers (NanoPi, NanoPC series)

Why choose it

This module offers significantly faster boot times and application loading compared to microSD cards, thanks to its eMMC 5.1 interface and HS400 speed. The built-in ECC and MLC NAND ensure data integrity and longevity, making it suitable for continuous operation in embedded projects.

Ideal use cases

• Running Linux distributions on FriendlyELEC boards for development or production
• Deploying lightweight servers, IoT gateways, or edge computing nodes
• Replacing unreliable SD cards in always-on applications

Good to know

The module does not include an SD adapter; it connects directly to the eMMC header on compatible boards. Check your board's documentation for header availability and voltage settings.
