ALLNET LMR-195 SMA female naar Fakra female coaxkabel, Jet Black, Keycode A, 10cm

The ALLNET ANT-CAB-SMAF-FAKRA-JETBLACK-A is a high-quality LMR-195 coaxial cable assembly designed for reliable RF signal transmission. It features an SMA female connector on one end and a Fakra female connector with Keycode A (Jet Black) on the other, making it ideal for connecting GPS, cellular, WLAN, and other RF devices. With a length of 10 cm and 50 Ohm impedance, this cable ensures low loss performance across a frequency range of DC to 6 GHz.

Advantages

This cable offers excellent signal integrity with minimal loss, thanks to its LMR-195 construction with solid copper inner conductor, foam polyethylene dielectric, and tinned copper braid shielding. The gold-plated SMA connector and nickel-plated Fakra connector provide corrosion resistance and reliable connectivity. Its compact 10 cm length is perfect for tight spaces and patch applications.

Suitable for

• GPS and GNSS antenna connections
• Cellular (3G/4G/5G) modem and router installations
• WLAN access point and antenna links
• RF communication and test equipment
• Automotive and telematics systems

Key specifications

• Cable Type: LMR-195 Coaxial
• Connector A: SMA Female

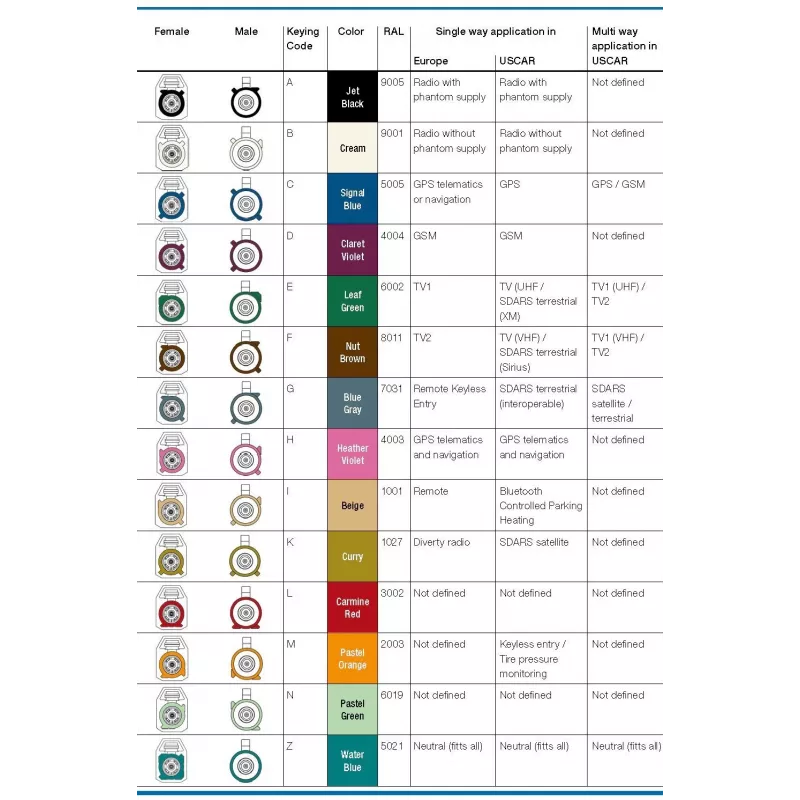

• Connector B: Fakra Female (Keycode A, Jet Black)
• Cable Length: 10 cm
• Impedance: 50 Ohm
• Jacket Color: Jet Black
• Inner Conductor: Solid Copper
• Dielectric: Foam Polyethylene (FPE)
• Shielding: Tinned Copper Braid
• Jacket Material: PVC
• Connector A Plating: Gold
• Connector B Plating: Nickel
• Frequency Range: DC to 6 GHz
• Operating Temperature: -40°C to +85°C

Recommendations

For optimal performance, ensure connectors are properly tightened and avoid sharp bends. This cable is ideal for indoor use; for outdoor applications, consider additional weatherproofing.
