ALLNET Powerline 1200Mbit HomePlug AV2 SmartLink MIMO met Wi-Fi AC (ALL1681211v2)

Experience up to 1200 Mbps over your electrical wiring with HomePlug AV2 MIMO technology, paired with AC1200 dual-band Wi-Fi for seamless whole-home coverage.

Overview

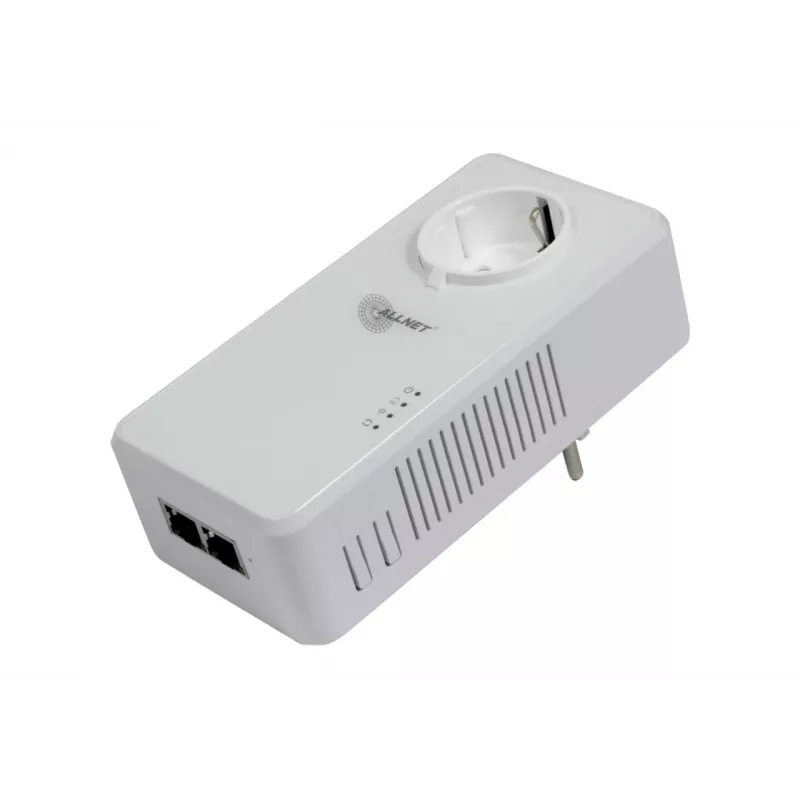

The ALLNET ALL1681211v2 combines a 1200 Mbps powerline adapter with a dual-band AC1200 Wi-Fi access point in one compact device. Using your home's existing electrical circuit, it extends high-speed internet to any room without additional cabling. The integrated 2x2 MIMO powerline technology with beamforming ensures stable, high-throughput connections, while two Gigabit Ethernet ports provide wired connectivity for devices like smart TVs, game consoles, or PCs.

What stands out

• HomePlug AV2 powerline with up to 1200 Mbps data rate
• Dual-band Wi-Fi AC1200 (867 Mbps on 5 GHz + 300 Mbps on 2.4 GHz)
• 2x Gigabit Ethernet ports for wired devices
• 2x2 MIMO with beamforming for improved performance and range
• 128-bit AES encryption for powerline security
• Simple setup with pair button and Wi-Fi clone function

Technical details

• Powerline standard: HomePlug AV2
• Powerline data rate: up to 1200 Mbps
• Wi-Fi standards: IEEE 802.11ac/n/a (5 GHz), IEEE 802.11n/g/b (2.4 GHz)
• Wi-Fi data rates: up to 867 Mbps (5 GHz), 300 Mbps (2.4 GHz)

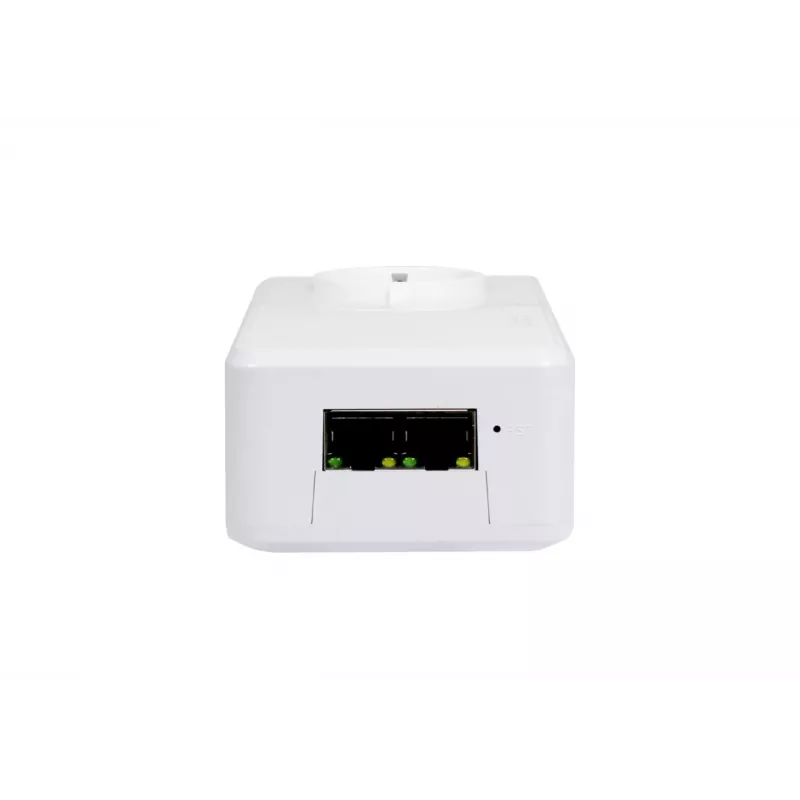

• Ethernet ports: 2x Gigabit Ethernet (RJ45)
• Powerline technology: 2x2 MIMO with beamforming
• Security: 128-bit AES (powerline), WPA-PSK/WPA2-PSK, WEP (Wi-Fi)
• Antenna type: internal

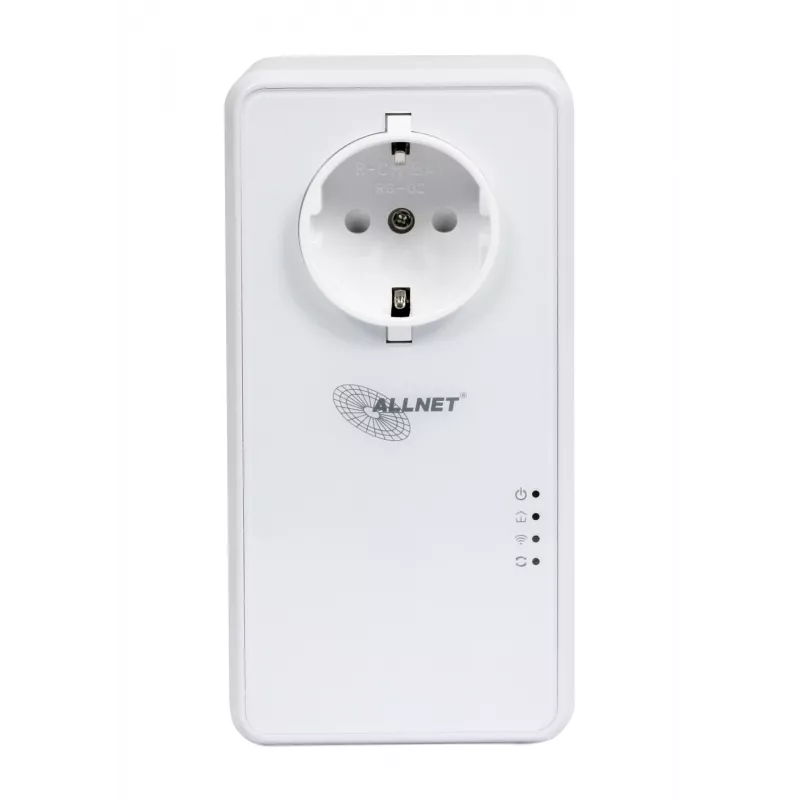

• LED indicators: power, powerline, Ethernet, Wi-Fi
• Buttons: pair, Wi-Fi on/off, reset
• Power consumption: max 12 W, standby 3 W
• Operating range: up to 300 meters over electrical circuit
• Operating temperature: 0°C to 40°C
• Operating humidity: 10% to 90% non-condensing
• Compatibility: OS independent (Windows, Mac, Linux)

Our verdict

The ALL1681211v2 is a robust powerline solution that eliminates Wi-Fi dead zones while providing fast wired connections. Its MIMO technology and AC1200 Wi-Fi make it suitable for bandwidth-intensive tasks like 4K streaming and online gaming.
