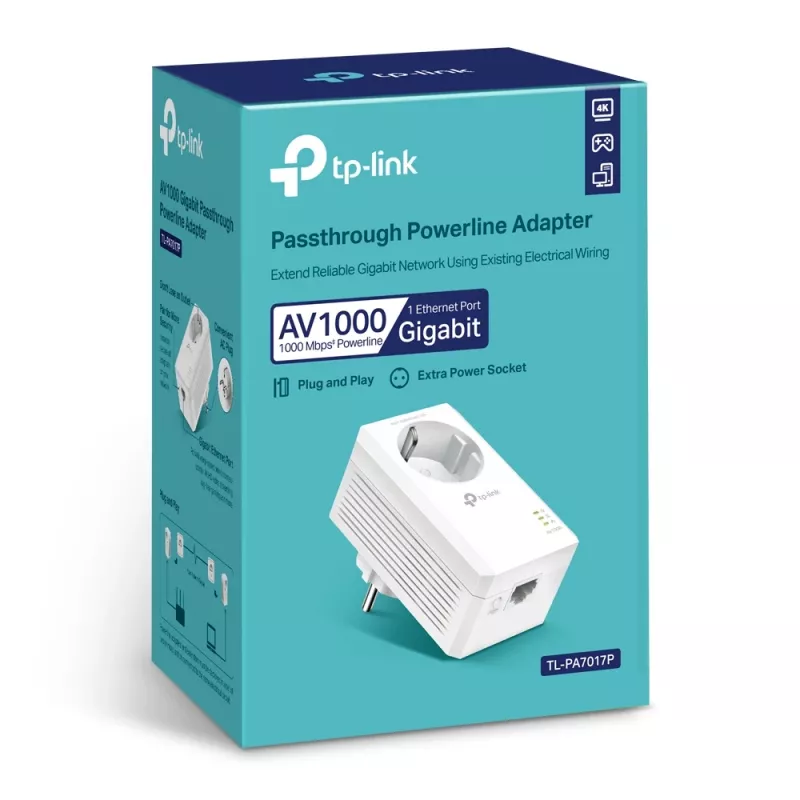

TP-Link TL-PA7017P PowerLine netwerkadapter 1000 Mbit/s Ethernet LAN wit 1 stuk

The PowerLine network adapter TP-Link TL-PA7017P provides wired network connectivity over existing electrical wiring, enabling Gigabit-class data transfer without new cabling. Supporting a maximum data transfer rate of 1000 Mbit/s and IEEE 1901 powerline technology, the adapter connects to your router and remote device via a Gigabit Ethernet port. The compact white enclosure (95 mm x 58 mm x 72 mm) integrates a pass-through power socket so you do not lose an outlet, and it operates from 220V AC with low typical power consumption for energy-efficient continuous use.

Advantages

The adapter delivers reliable wired speeds up to 1000 Mbit/s over home electrical wiring and supports standard Ethernet and powerline networking protocols for broad compatibility with routers and devices. A built-in power socket preserves wall outlet availability while the Gigabit Ethernet port ensures high-speed connections for streaming, gaming and large file transfers. RoHS compliance and low idle power draw (typical 2.3 W, standby 0.5 W) make it suitable for long-term deployment with reduced environmental impact.

Suitable for

• Extending wired internet to rooms without Ethernet cabling
• Connecting Smart TVs, game consoles and streaming devices via Gigabit Ethernet
• Improving stability for remote workstations and home office setups
• Replacing Wi‑Fi for latency‑sensitive applications like online gaming

Key specifications

• Maximum data transfer rate: 1000 Mbit/s
• Networking standards: IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Ethernet interface: Gigabit Ethernet (LAN) port
• Built-in power socket: integrated passthrough outlet
• Power input: 220V AC
• Typical power consumption: 2.3 W; standby: 0.5 W
• Color: White
• Dimensions: 95 mm x 58 mm x 72 mm

How to use

Plug one TL-PA7017P adapter into a mains outlet next to your router and connect it to the router using an Ethernet cable. Plug the second adapter into a mains outlet near the device you want to connect and attach a network cable from the adapter to that device. The adapters automatically establish a secure powerline link; use the pair button if manual pairing or resetting is required. The pass-through socket on each adapter allows another device to remain powered at the same location.

Recommendations

For optimal performance, connect adapters directly to wall sockets rather than to power strips or surge protectors, and avoid plugging into outlets sharing different electrical phases. Position the adapter away from high-power appliances that may cause electrical interference. Use Cat5e or higher Ethernet cables for best Gigabit throughput.
