ALLNET Radxa SPI Flash-module voor eMMC-socket (RA-SPItoEMMC)

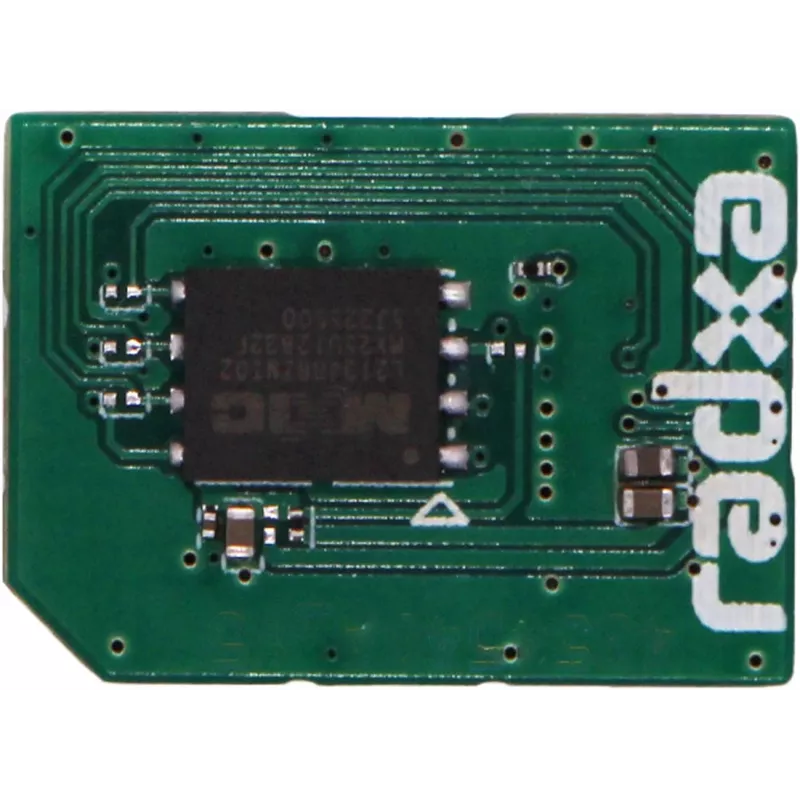

The ALLNET Radxa SPI Flash Module is a compact accessory designed for Radxa single board computers. It plugs directly into the eMMC socket, providing 16 MB of SPI NOR flash memory for bootloader storage, firmware recovery, and system diagnostics. This module enables SPI boot and facilitates eMMC flashing and recovery, making it an essential tool for developers and system integrators.

Advantages

Enables SPI boot on compatible Radxa boards, allowing for flexible boot configurations. Simplifies eMMC flashing and recovery processes, reducing downtime during development. Compact form factor ensures easy installation without additional cabling.

Suitable for

• Radxa Rock Pi 4, Rock Pi 5, Rock Pi CM3, Rock Pi CM5 single board computers
• Embedded system development and prototyping
• Firmware recovery and system diagnostics

Key specifications

• Module Type: SPI Flash Module
• Host Interface: eMMC Socket
• Flash Memory Type: SPI NOR Flash
• Flash Capacity: 16 MB (128 Mbit)
• Operating Voltage: 3.3V
• Data Protocol: SPI (Serial Peripheral Interface)
• Connector Standard: Standard eMMC Pinout
• Manufacturer: Radxa
• Distributor: ALLNET

Recommendations

For optimal performance, ensure your Radxa board supports SPI boot. This module is ideal for advanced users who need to recover or flash eMMC firmware. Pair with a compatible power supply for reliable operation.
