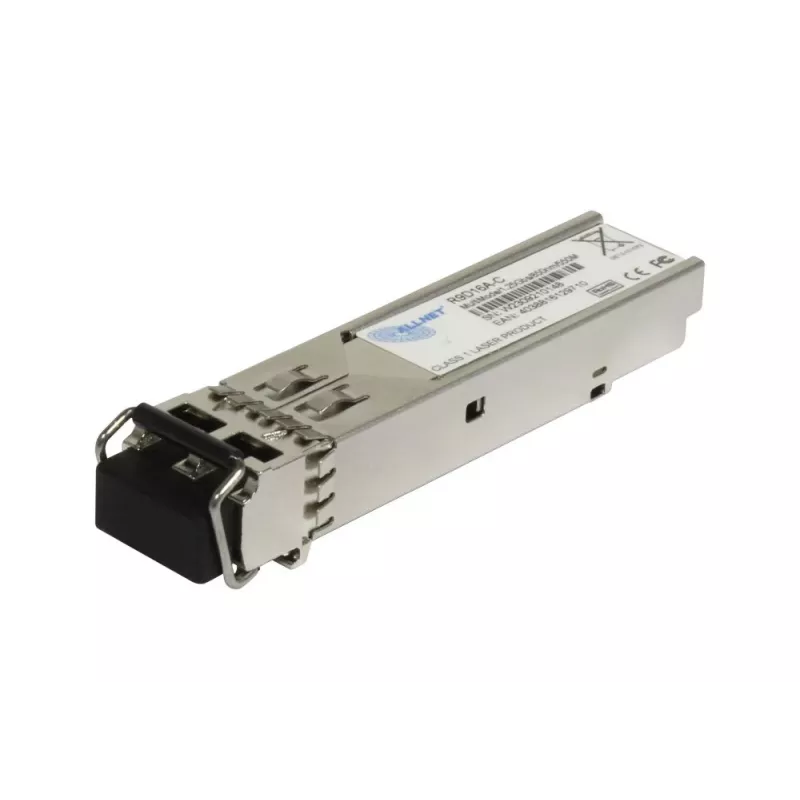

ALLNET SFP transceiver-module 1000BASE-SX LC duplex MMF 850nm 550m compatibel met HP Aruba Instant On R9D16A-C

Network upgrades often stall when a compatible SFP module is missing. This ALLNET SFP transceiver solves that by delivering Gigabit Ethernet over multimode fiber, matching HP Aruba Instant On R9D16A-C specifications without vendor lock-in.

Who is it for

IT administrators and network engineers who need to connect switches, routers, or servers over short-range multimode fiber. It fits any SFP port and works with HP Aruba Instant On equipment that accepts R9D16A-C compatible optics.

Main features

• 1000BASE-SX standard for Gigabit Ethernet over multimode fiber
• 850 nm VCSEL laser with LC duplex connector
• Reaches up to 550 m on OM3 fiber
• Hot-swappable SFP form factor
• Digital diagnostics monitoring (DDM/DOM) support
• MSA compliant and RoHS compliant

Specifications

• Data rate: 1.25 Gbps
• Wavelength: 850 nm
• Connector: LC duplex
• Fiber type: multimode
• Max distance: 550 m
• Operating temperature: 0°C to 70°C
• Power supply: 3.3V
• Power consumption: < 1W
• Laser type: VCSEL
• Receiver type: PIN diode

Tips

For best performance, use OM3 or OM4 multimode fiber. The module is hot-swappable, so you can insert or remove it without powering down the switch.
